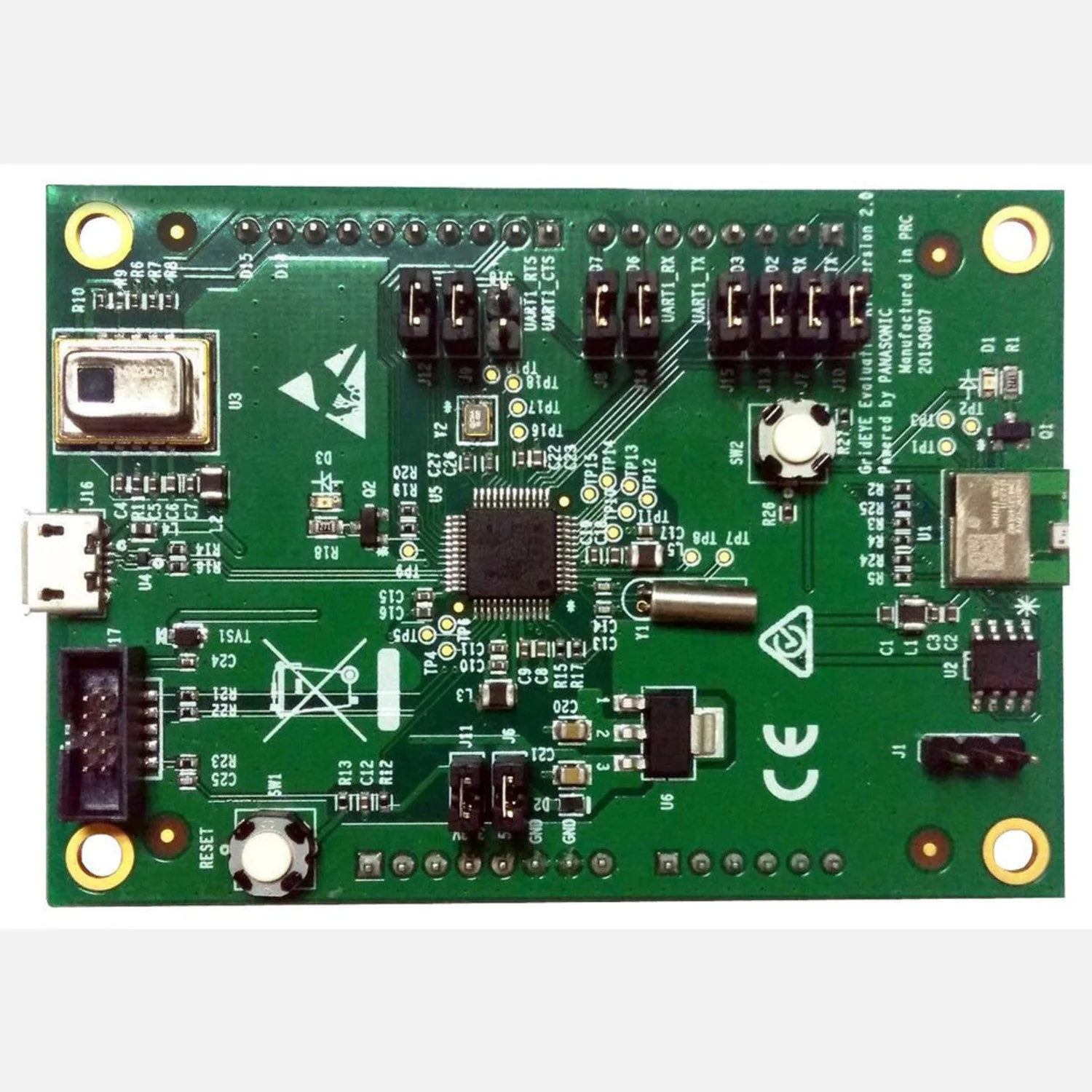

The Panasonic AMG8832 Grid-EYE is an infrared array sensor evaluation board featuring a 64-pixel (8×8) thermal imaging sensor in an all-in-one SMD package. It detects absolute surface temperatures from -20°C to +100°C without contact, and can identify the position, presence, and movement direction of people and objects — including stationary ones.

The evaluation kit includes a PAN1740 Bluetooth module (BLE v4.0) for wireless connectivity to Android and iOS devices, plus Arduino-compatible headers for integration with an Arduino DUE. Two operating modes — standalone and Arduino — are switchable via jumpers, giving you flexibility for prototyping IoT and sensing applications.

Key Features

• 8×8 IR Pixel Array – 64-pixel thermal imaging with patented 60° silicon lens
• Contactless Temperature Detection – Measures surface temperatures from -20°C to +100°C
• People & Object Detection – Detects position, presence, and movement direction
• Bluetooth LE Connectivity – PAN1740 module with BLE v4.0 for Android and iOS
• Dual Operating Modes – Standalone or Arduino mode, switchable with jumpers
• Arduino Compatible – Headers installed for direct connection to Arduino DUE
• JTAG with Reset – For advanced development and debugging

Specifications

• Sensor – Panasonic AMG8832 Grid-EYE
• Resolution – 8 × 8 pixels (64 pixels)
• Temperature Range – -20°C to +100°C
• Field of View – 60° (silicon lens)
• Processor – ATSAMD21 (48 MHz, 32-bit Cortex-M0+)
• Bluetooth – PAN1740 BLE v4.0
• Interfaces – I2C, UART, USB
• Supply Voltage – 3.3V / 5V

Ideal For

• People counting and presence detection
• IoT sensor prototyping
• Contactless surface temperature measurement
• Security and safety monitoring
• Smart building and industrial applications

Package Contents

• 1× Grid-EYE Sensor Evaluation Board (with Bluetooth module)
• 1× USB cable
• Safety sheet and reference documentation
