The WFV3918 from Amp'ed RF is a compact WiFi video module supporting 720p HD resolution with both live streaming and SD card storage. With up to 300m line-of-sight range on the 5 GHz band, it's ideal for adding remote video and audio capabilities to your projects.

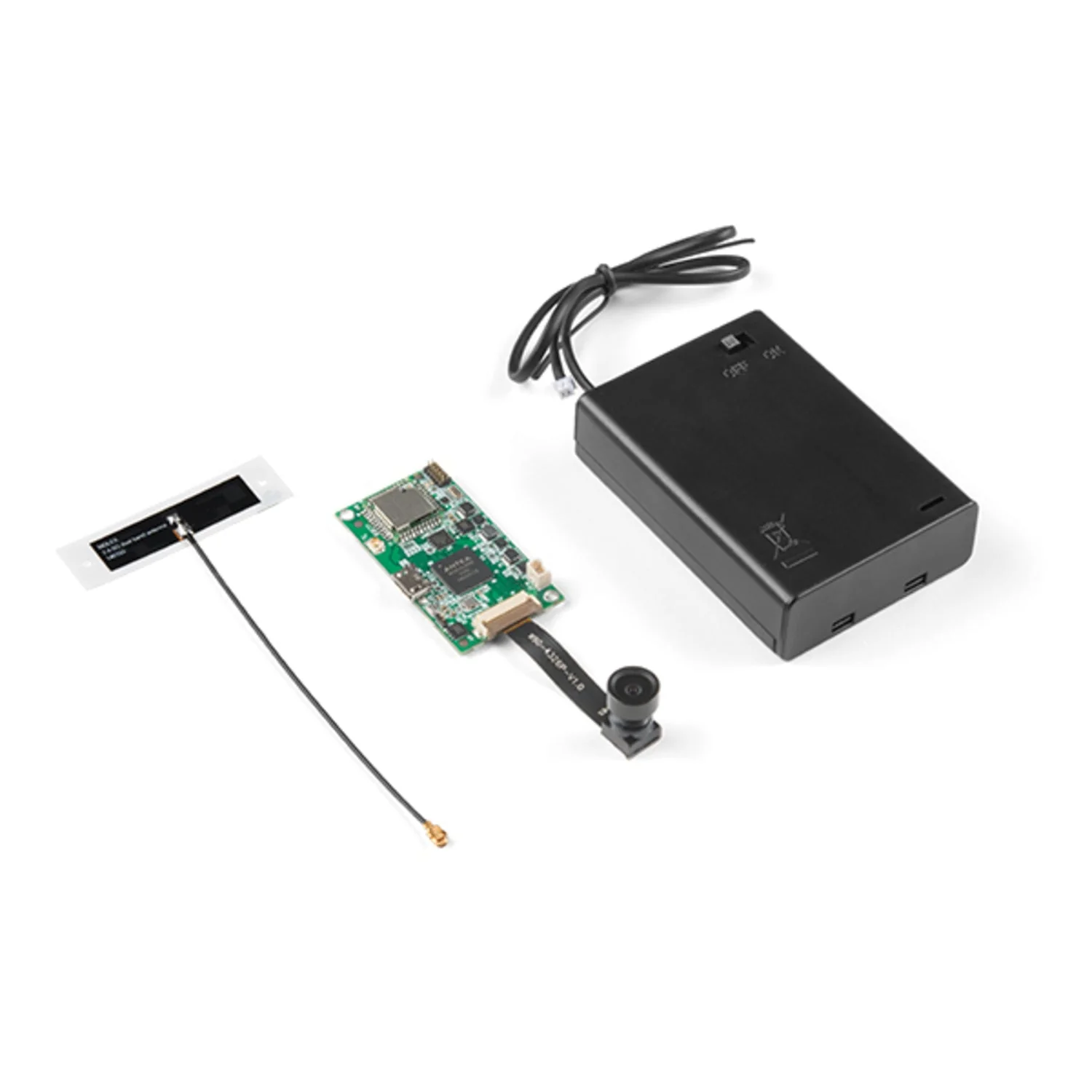

The module integrates an HD camera sensor, Amp'ed's ACC1340 WiFi radio chip, and the AK3918E HD IP Camera SoC into a single small-footprint board. It also includes a built-in MEMS microphone and speaker output for two-way audio. Video can be accessed easily via the VLC mobile app.

Key Features

• 720p HD Video – High-definition video capture and streaming
• WiFi Connectivity – 5 GHz band with up to 300m line-of-sight range
• Live Streaming & Storage – Stream in real time or save to SD card
• Built-In MEMS Microphone – Capture audio alongside video
• Speaker Output – Two-way audio capability
• VLC App Compatible – Easy access via the VLC mobile app
• Small Footprint – Compact module for integration into custom projects

Specifications

• Video Resolution – 720p HD
• WiFi Band – 5 GHz
• Range – Up to 300m (line-of-sight)
• Camera SoC – AK3918E HD IP Camera
• WiFi Chip – ACC1340
• Audio – MEMS microphone + speaker output
• Storage – SD card

Ideal For

• Remote video monitoring projects
• Drone and robotics FPV applications
• IoT camera builds
• Wireless surveillance and security prototyping

Package Contents

• 1× WFV3918 WiFi Camera Module
