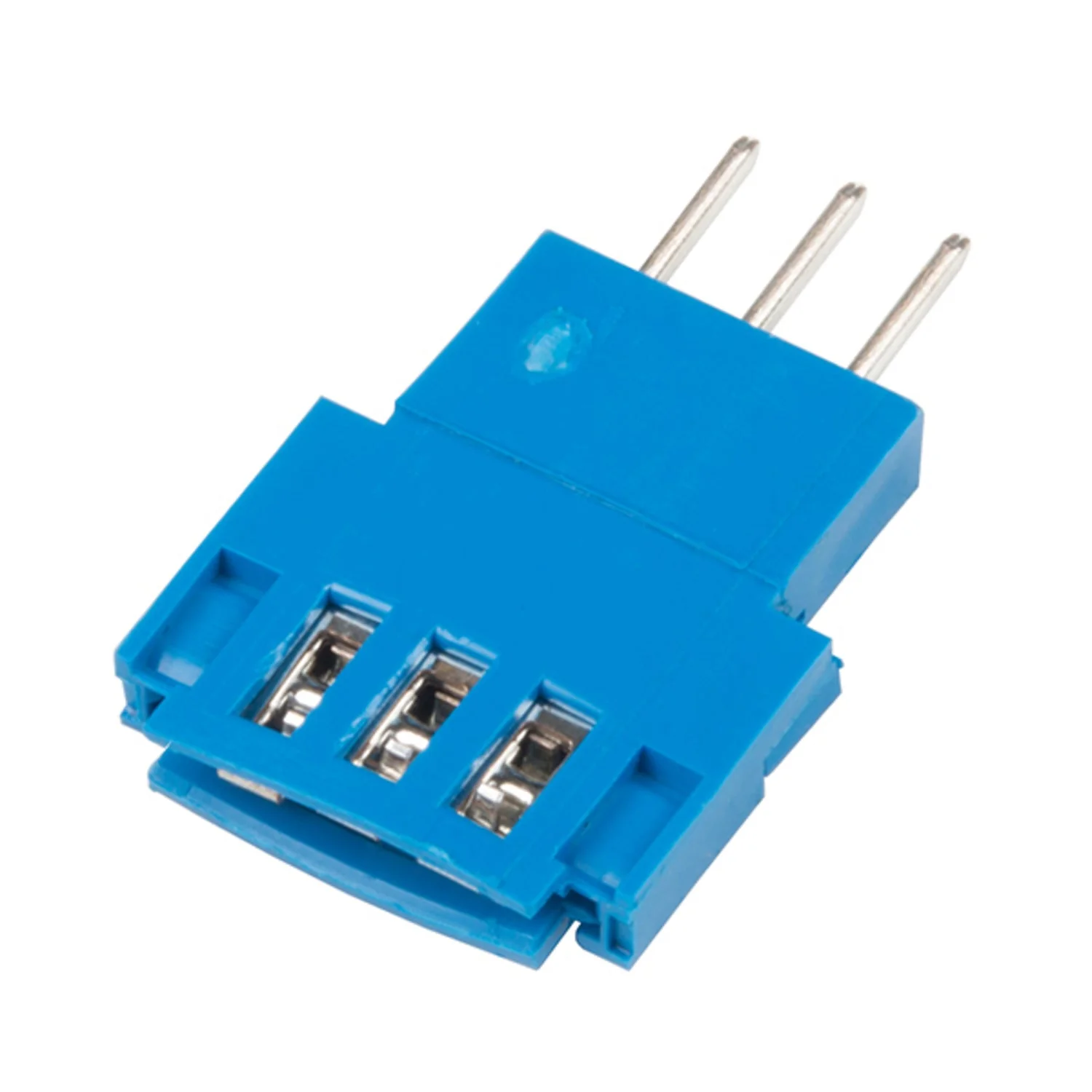

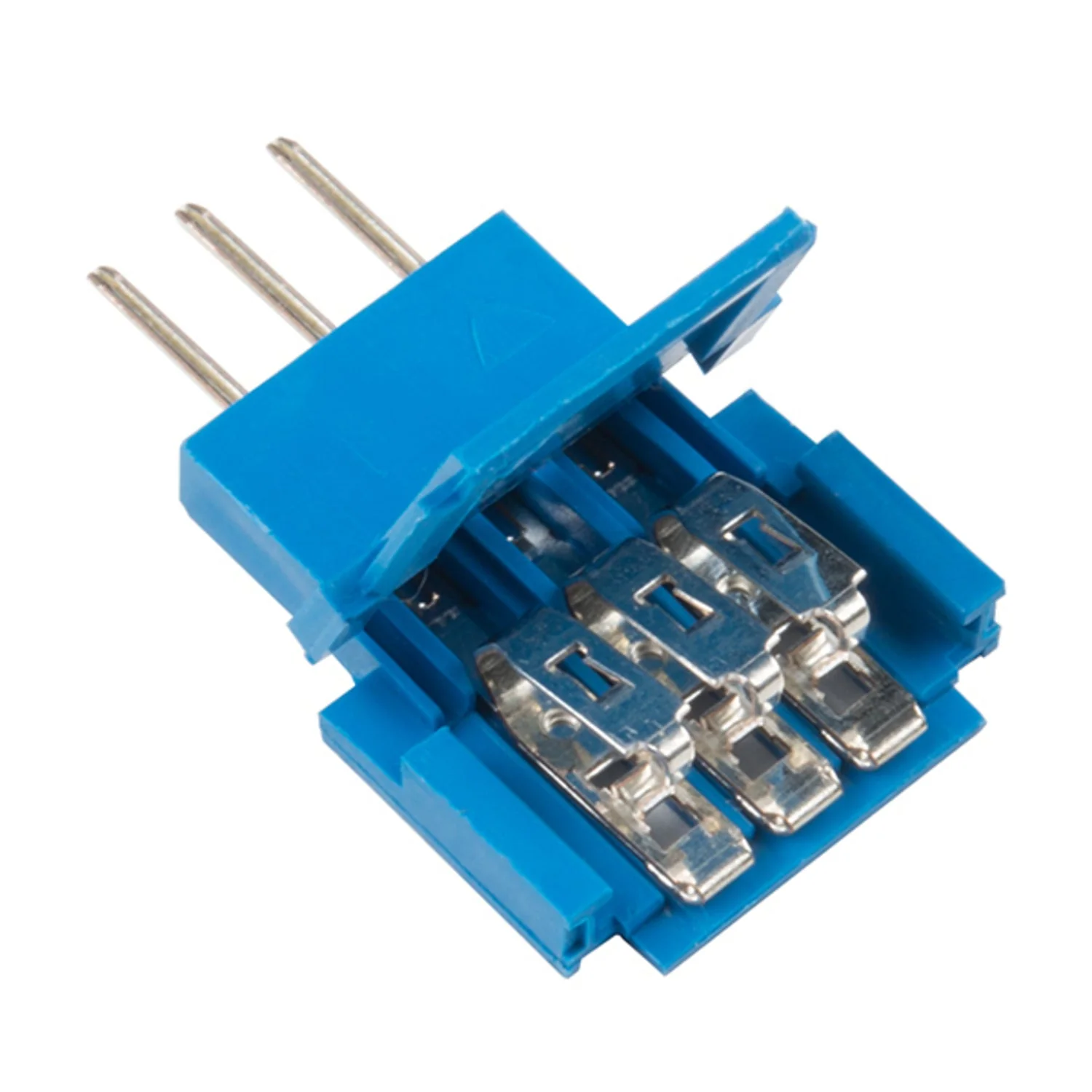

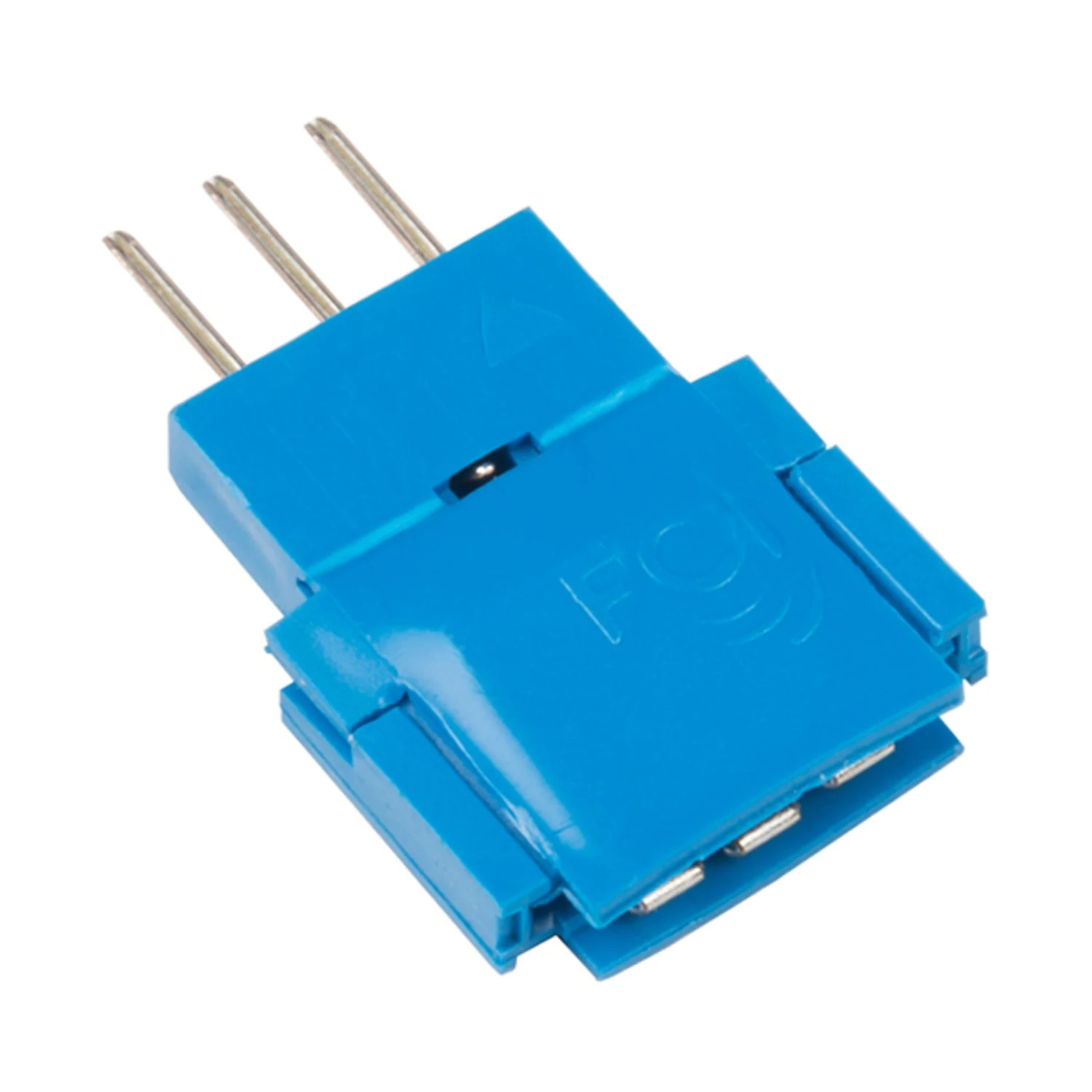

The Clincher connector from Amphenol FCI provides a quick, tool-free way to terminate Flat Flexible Cables (FFCs) to standard 0.1" pin headers. Simply insert the end of the cable into the connector and press it closed — the internal teeth "clinch" around the conductors, breaking them out to three male 0.1"-spaced pins.

Also works well with FlexiForce pressure sensors and other flex/force sensors that use flat ribbon-style connections, making it easy to interface these sensors with standard breadboards and headers.

Key Features

• Tool-Free Termination – Insert cable and press closed, no soldering or crimping needed
• 3-Position Male Header – Breaks out to standard 0.1" (2.54mm) spaced pins
• FFC Compatible – Designed for Flat Flexible Cables
• Sensor Friendly – Works with FlexiForce and similar flat-connection sensors

Specifications

• Positions – 3
• Gender – Male
• Pitch – 0.1" (2.54mm)
• Manufacturer – Amphenol FCI

Package Contents

• 1× Amphenol FCI Clincher Connector (3-position, male)

Resources

• Datasheet (PDF)
• Dimensional Drawing (PDF)
• Product Specification (PDF)
