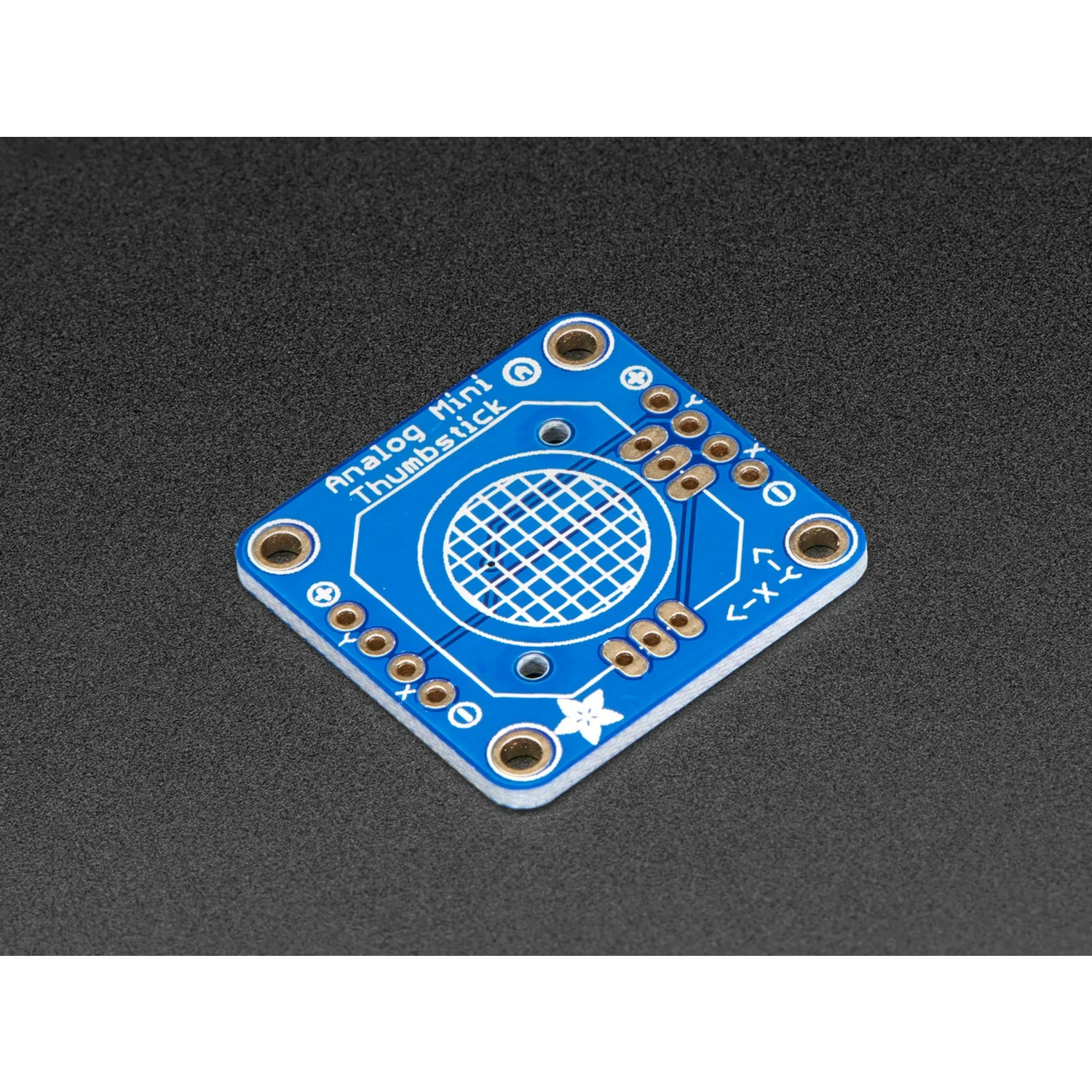

A neat little breakout board designed for mounting a PSP-style mini thumbstick to your project. The board features panel-mount friendly hole placement and dual-sided headers for mechanical stability when connected to a breadboard or perfboard.

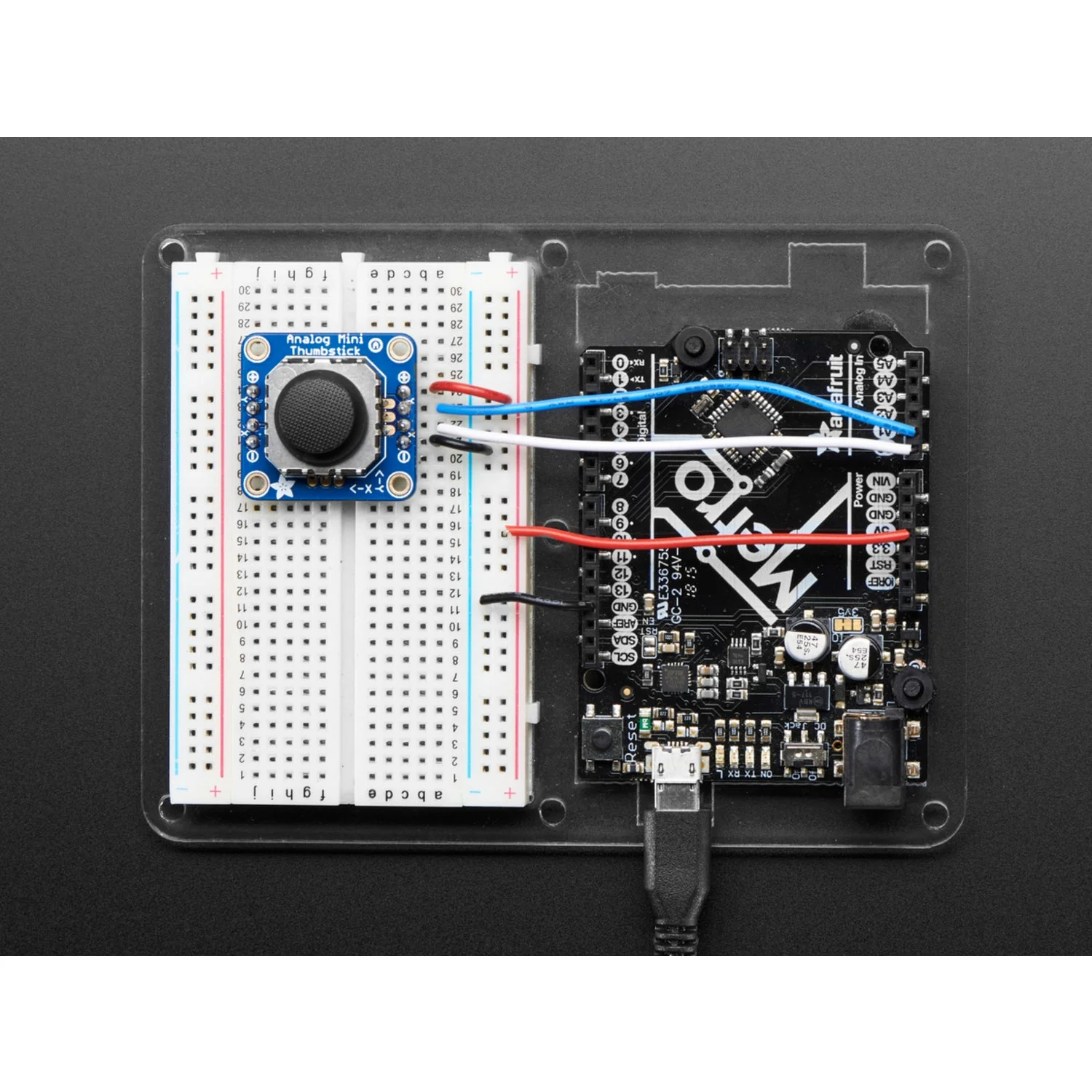

Since the thumbstick is analog, you'll need two analog reading pins on your microcontroller to determine X and Y position. Soldering a thumbstick to the board is straightforward and takes about a minute.

Key Features

• Panel-Mount Design – Mounting holes positioned for easy enclosure attachment
• Dual-Sided Headers – Headers on both sides for mechanical stability
• 0.1" Pin Spacing – Breadboard and perfboard compatible
• Simple Soldering – Quick thumbstick attachment, takes about a minute

Specifications

• Header – 4-pin, 0.1" (2.54mm) spacing
• Output – 2 analog channels (X and Y)

Package Contents

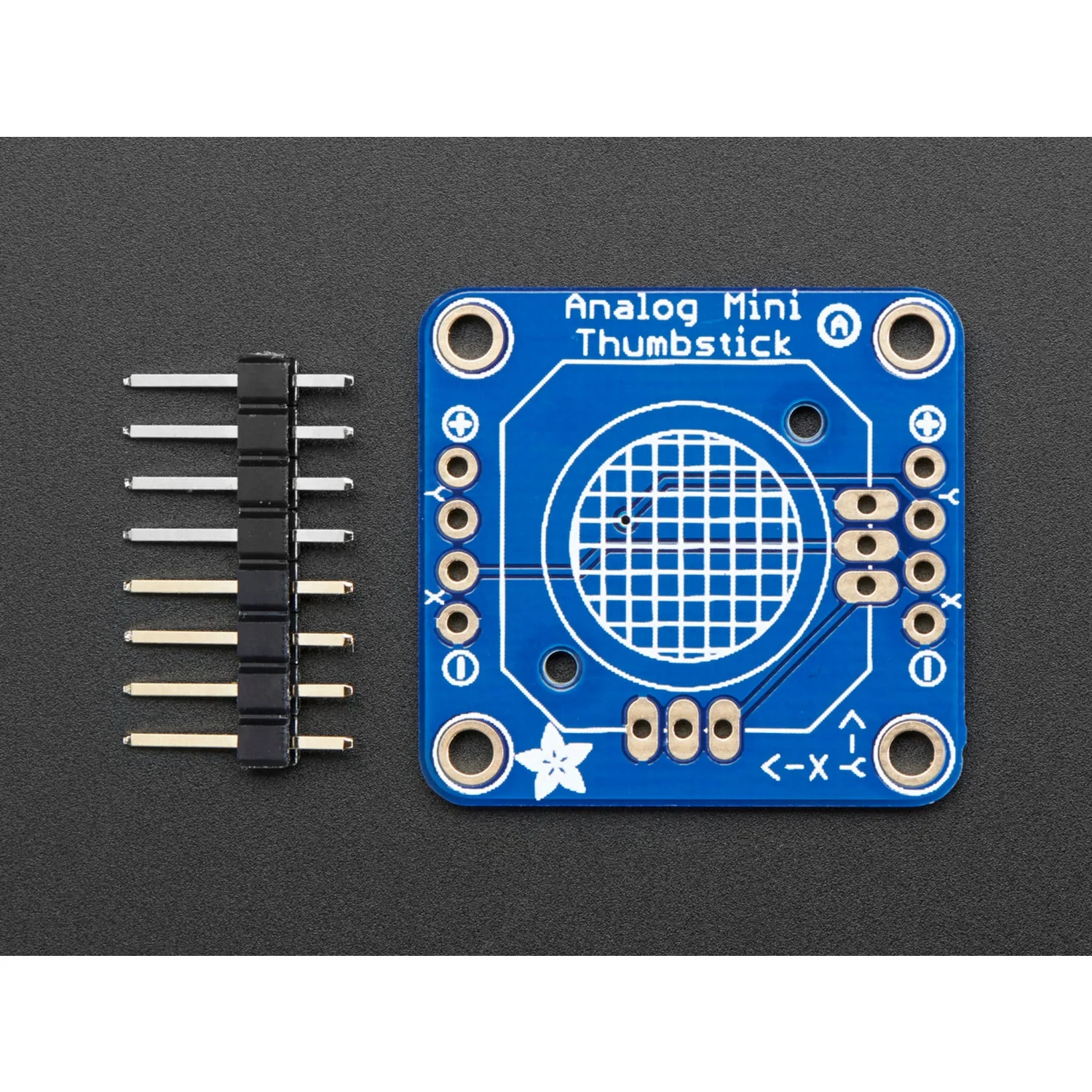

• 1× Analog Mini Thumbstick Breakout Board
• 1× 8-pin 0.1" male header
