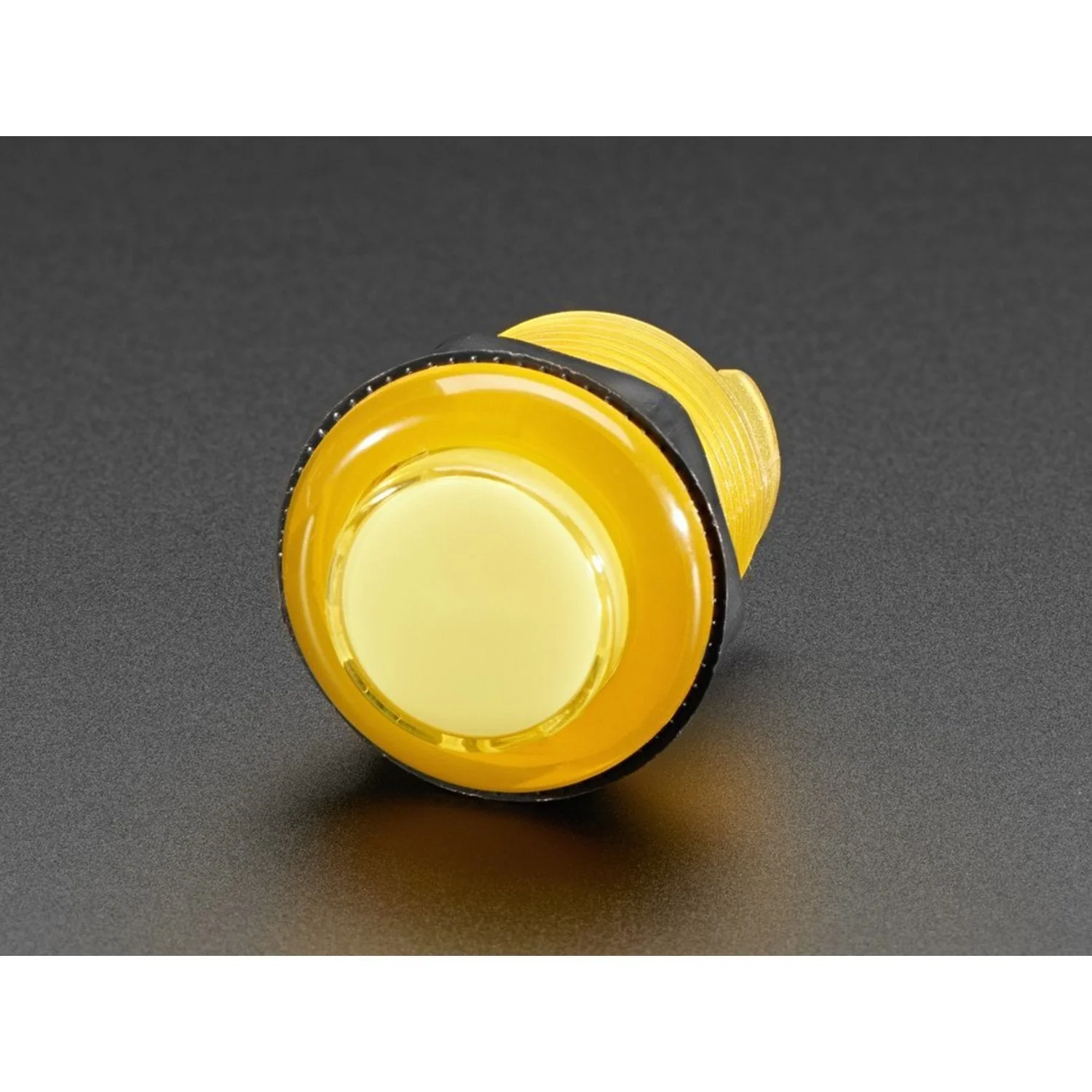

This 30mm translucent yellow arcade button has built-in LEDs for a beautiful illuminated look. Two surface-mount LEDs with a ~1K resistor are embedded in the button body in a series configuration, drawing just 5mA from a 5V supply.

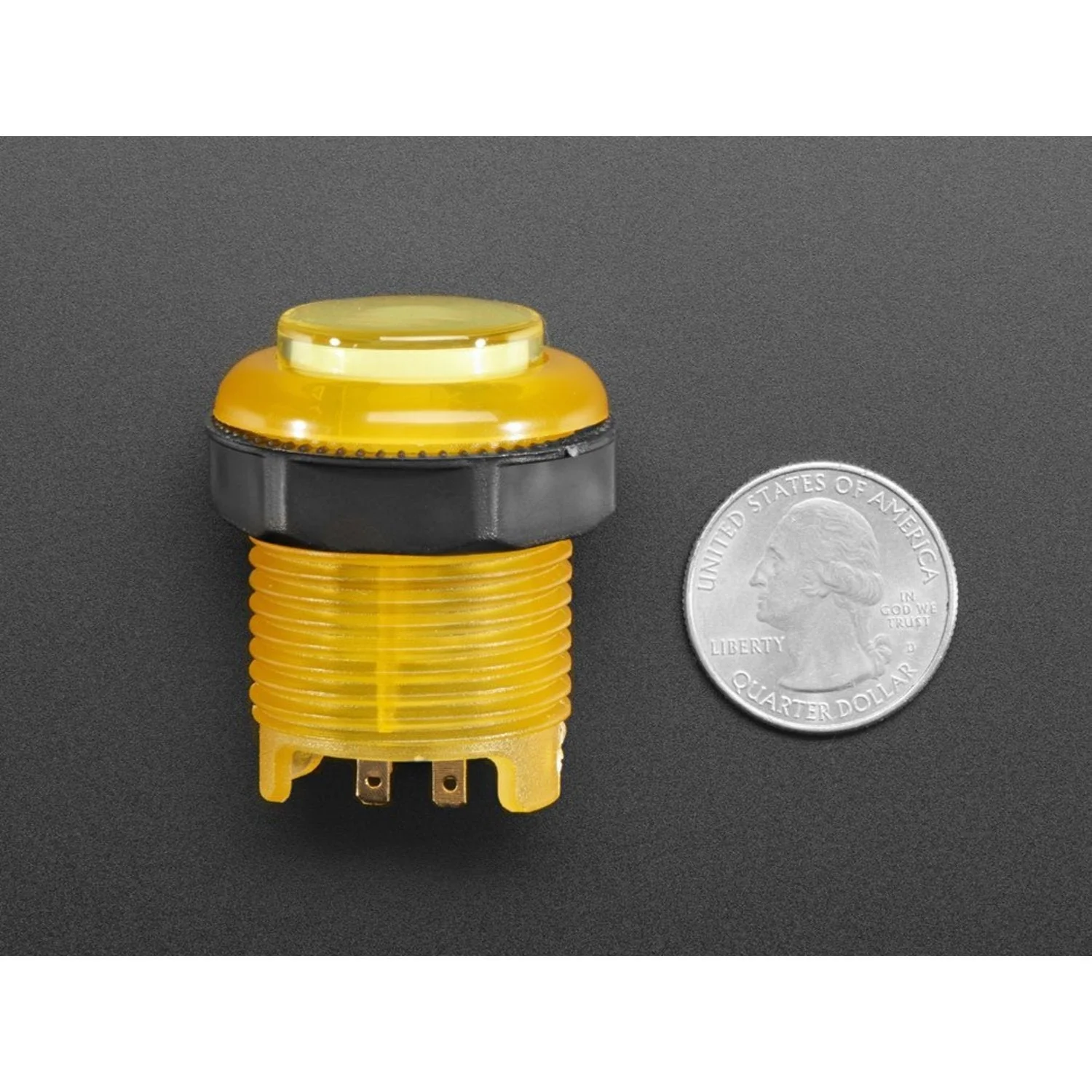

The button screws into place through material up to ~15mm thick, covering any imperfections in the mounting hole. A pre-installed micro-switch with gold-plated contacts provides smooth action with clear tactile feedback. Separate contacts for the LEDs sit next to the switch contacts for easy wiring.

Key Features

• Built-In LEDs – Two series SMD LEDs with ~1K resistor, embedded in the button body
• 30mm Translucent Yellow – Crystal glossy finish, stunning when illuminated
• Pre-Installed Micro-Switch – Gold-plated contacts for reliable operation
• Smooth Action – Tactile press without a harsh click
• Screw-In Mounting – Fits material up to ~15mm thick, requires 30mm hole
• Low Power – 5mA at 5V

Specifications

• Button Diameter: 30mm mounting hole
• Colour: Translucent yellow
• LED Configuration: 2× series SMD LEDs with ~1K resistor
• LED Power: 5V at 5mA
• Switch Type: Micro-switch with gold-plated contacts
• Mounting: Screw-in (up to ~15mm panel thickness)

Ideal For

• Illuminated arcade cabinets and fight sticks
• Custom LED control panels
• Arduino and Raspberry Pi interactive projects
• Any project needing lit-up pushbuttons
