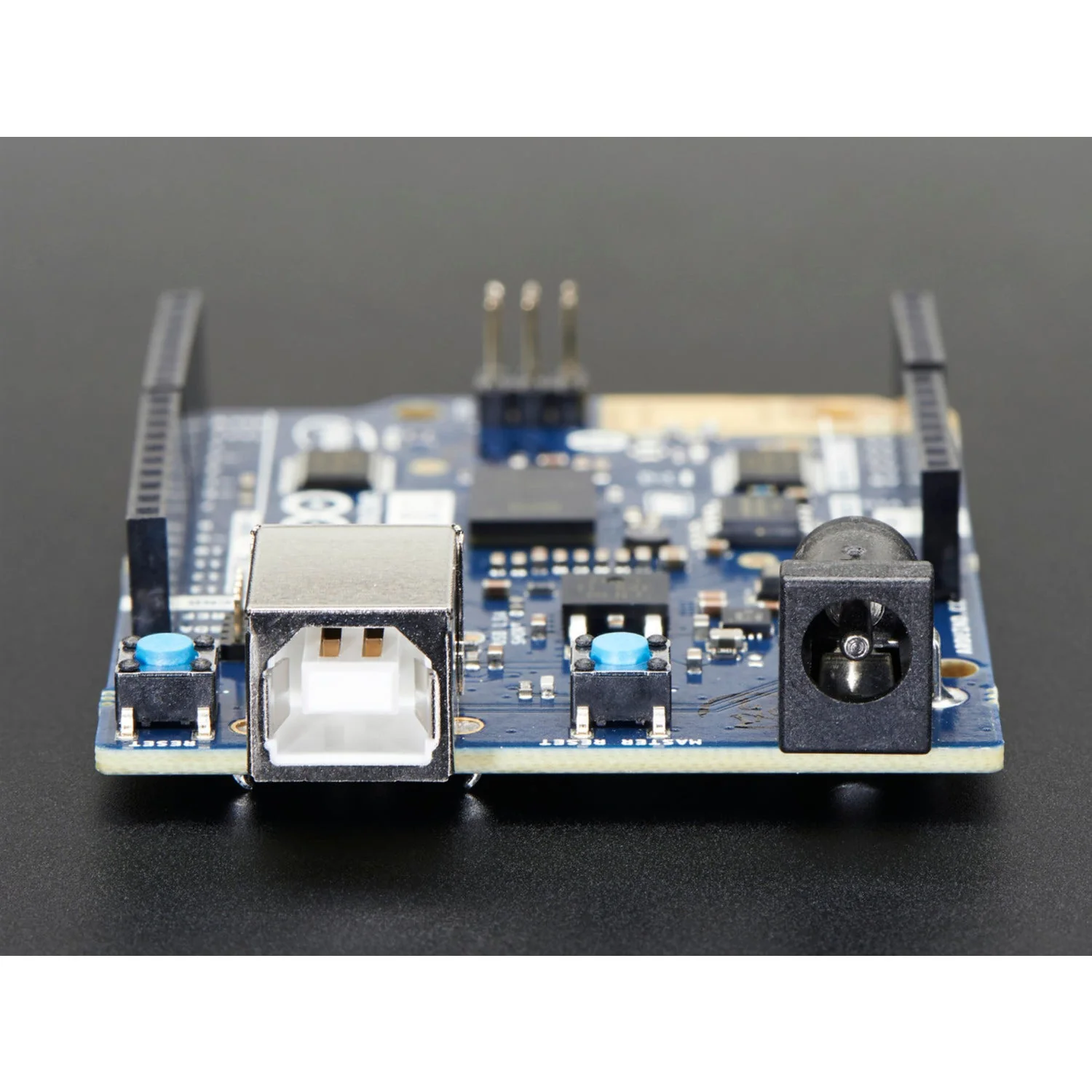

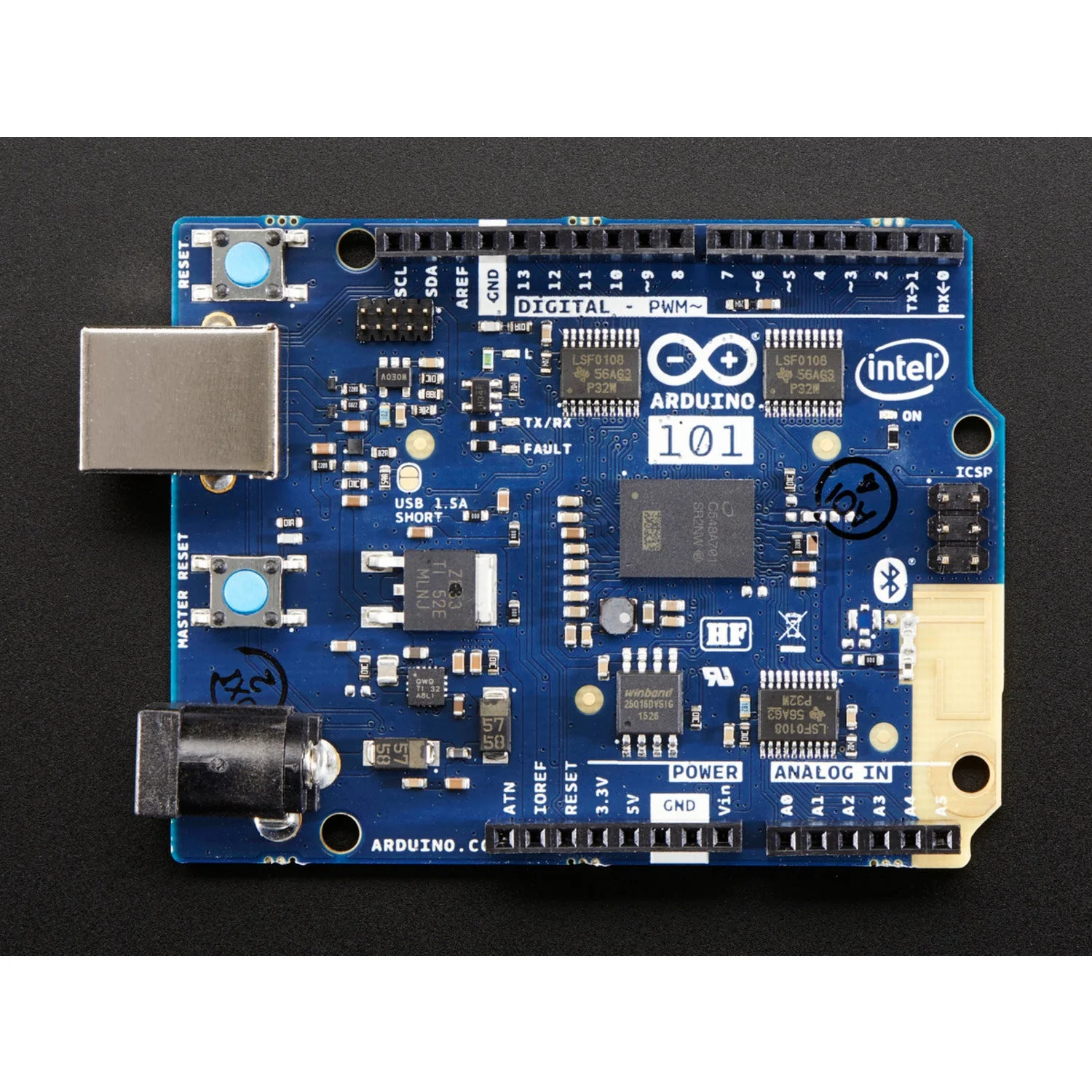

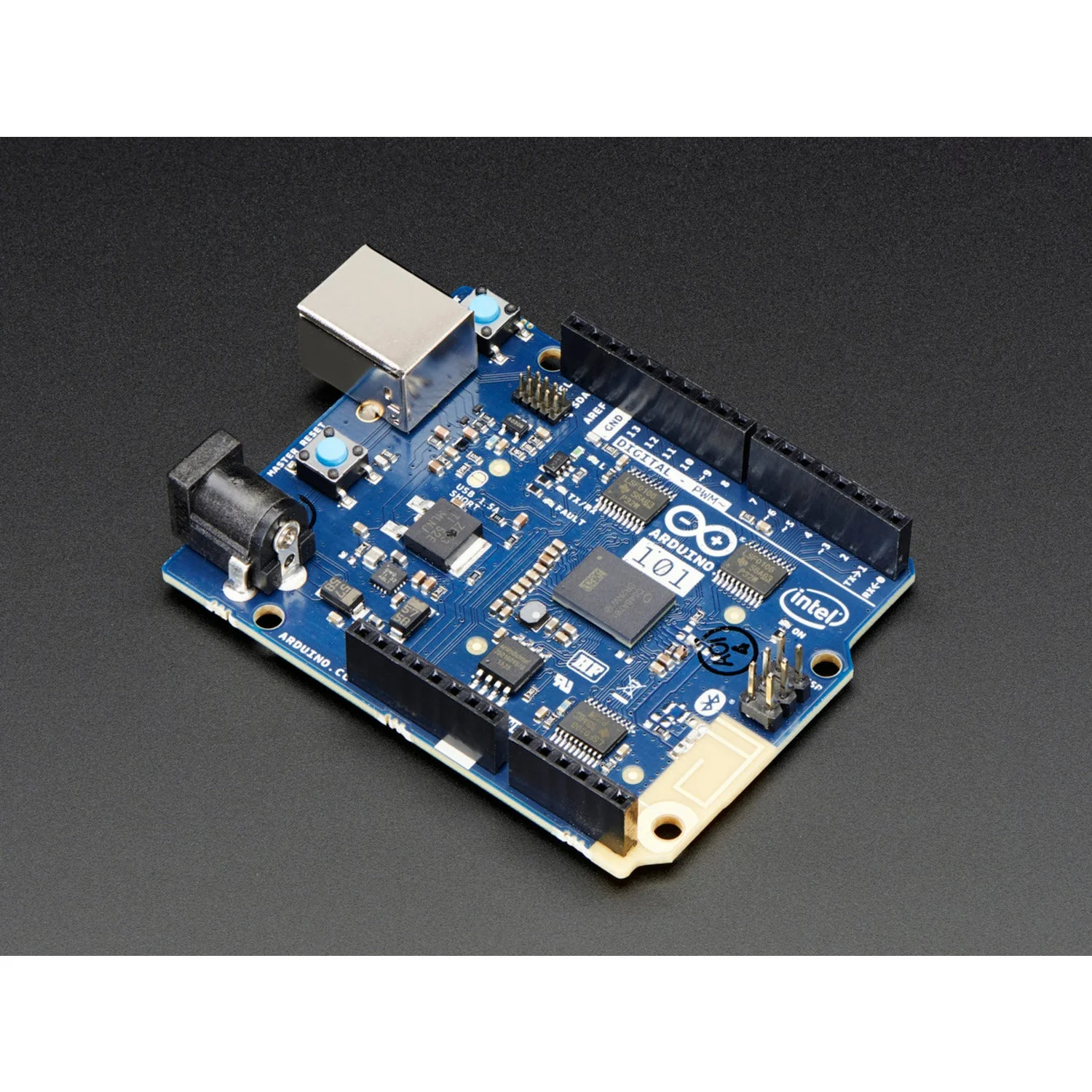

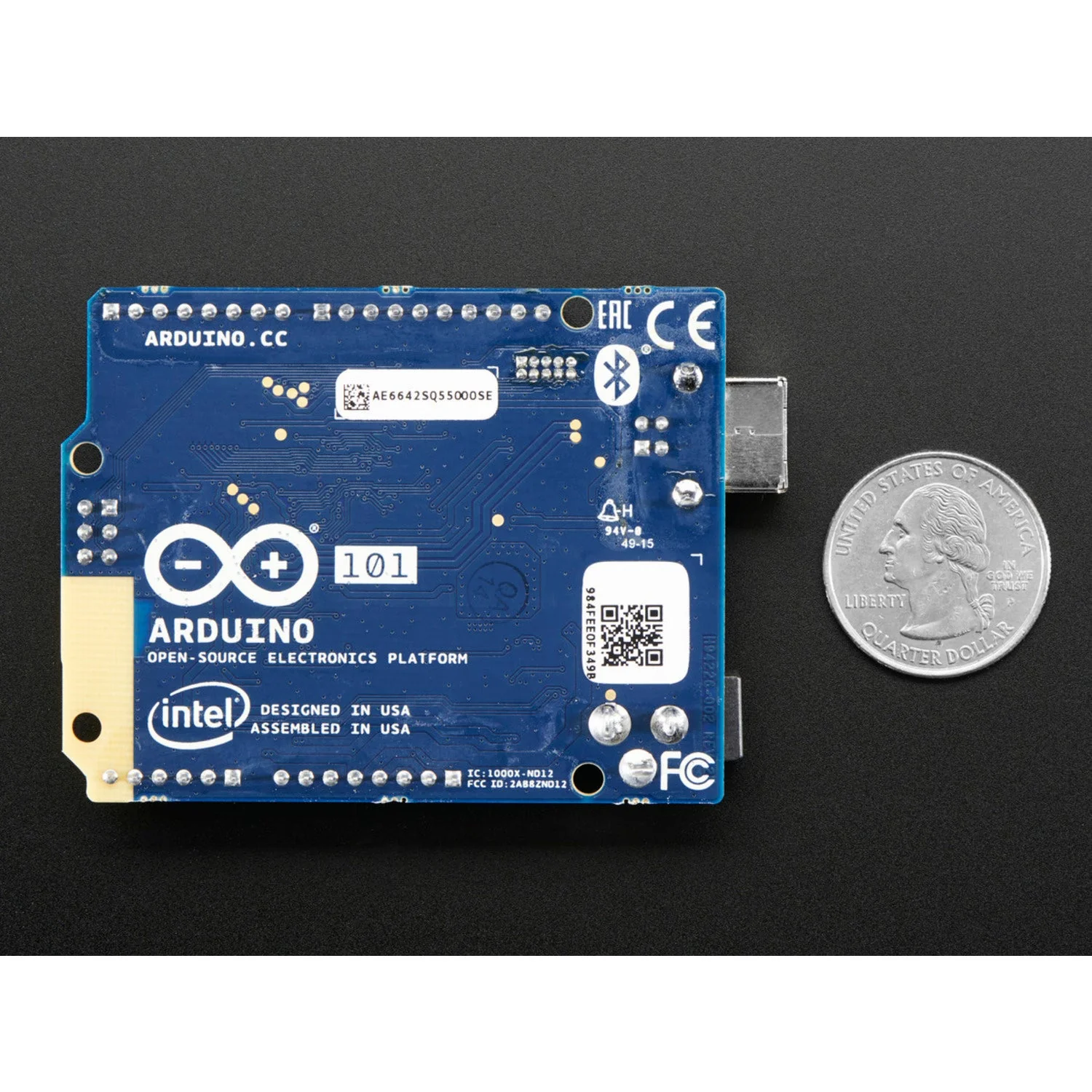

The Arduino 101 with Intel Curie is a development board that combines the familiar Arduino platform with onboard Bluetooth LE and a 6-axis accelerometer/gyroscope. Powered by the Intel Curie module's dual-core processor, it delivers wireless connectivity and motion sensing in the standard Arduino Uno form factor.

The Intel Curie contains two cores — an x86 Quark and a 32-bit ARC — both clocked at 32MHz. The board features 14 digital I/O pins (4 PWM), 6 analogue inputs, USB connectivity, a power jack, and ICSP/I²C headers. All I/O operates at 3.3V but is protected against 5V overvoltage. Designed in collaboration with Intel.

Key Features

• Intel Curie Module – Dual-core processor (x86 Quark + 32-bit ARC) at 32MHz
• Bluetooth Low Energy – Built-in BLE for wireless communication and IoT projects
• 6-Axis IMU – Onboard accelerometer and gyroscope for motion sensing
• Uno-Compatible Form Factor – 14 digital I/O pins (4 PWM), 6 analogue inputs
• 3.3V Logic (5V Tolerant) – All I/O pins protected against 5V overvoltage
• 196kB Flash / 24kB SRAM – Sufficient memory for BLE and sensor applications

Ideal For

• Bluetooth LE and IoT connected projects
• Motion-sensing and gesture recognition
• Wearable electronics with wireless connectivity
• Learning embedded development with Arduino

Package Contents

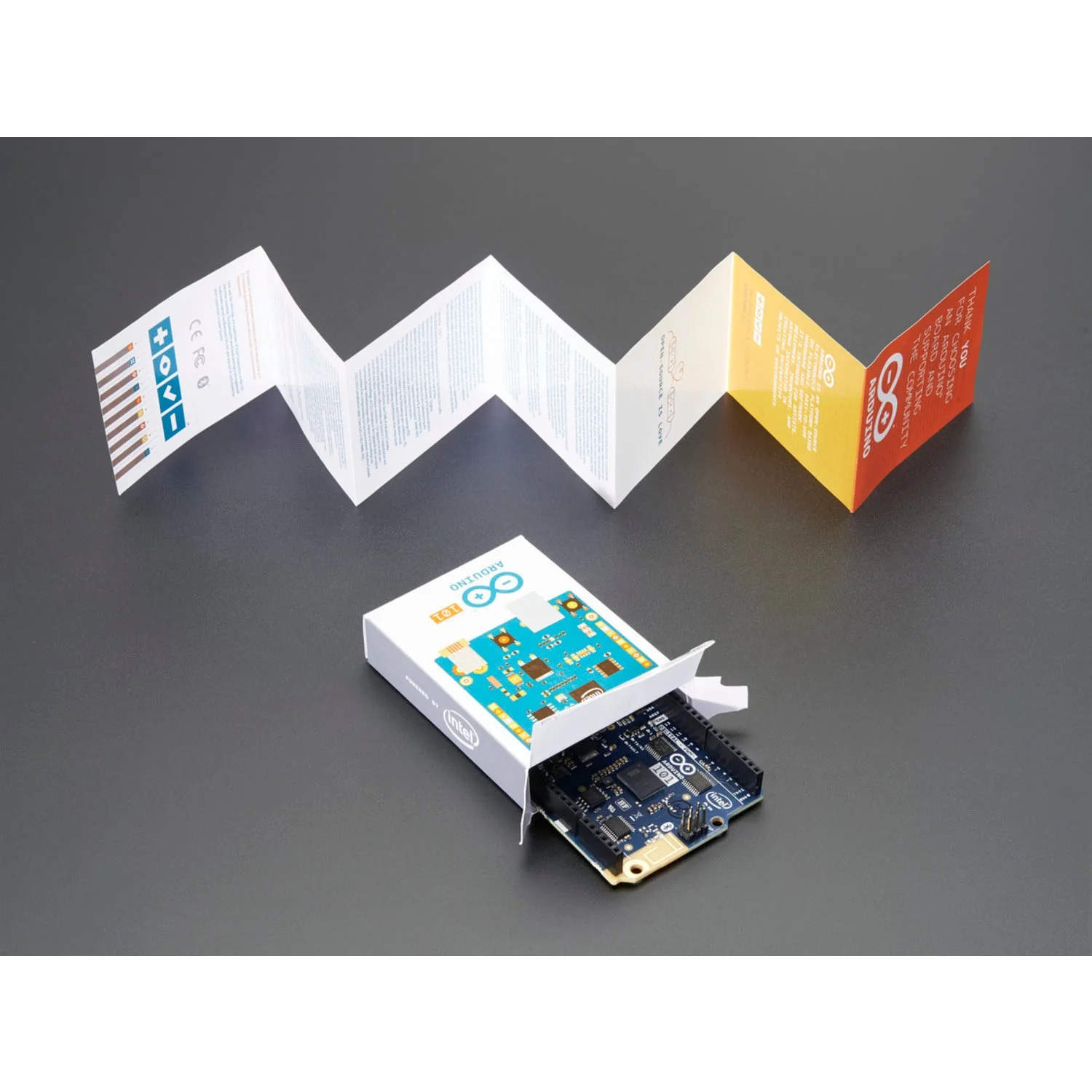

• 1× Arduino 101 board with Intel Curie

Resources

• Getting Started with the Arduino 101
