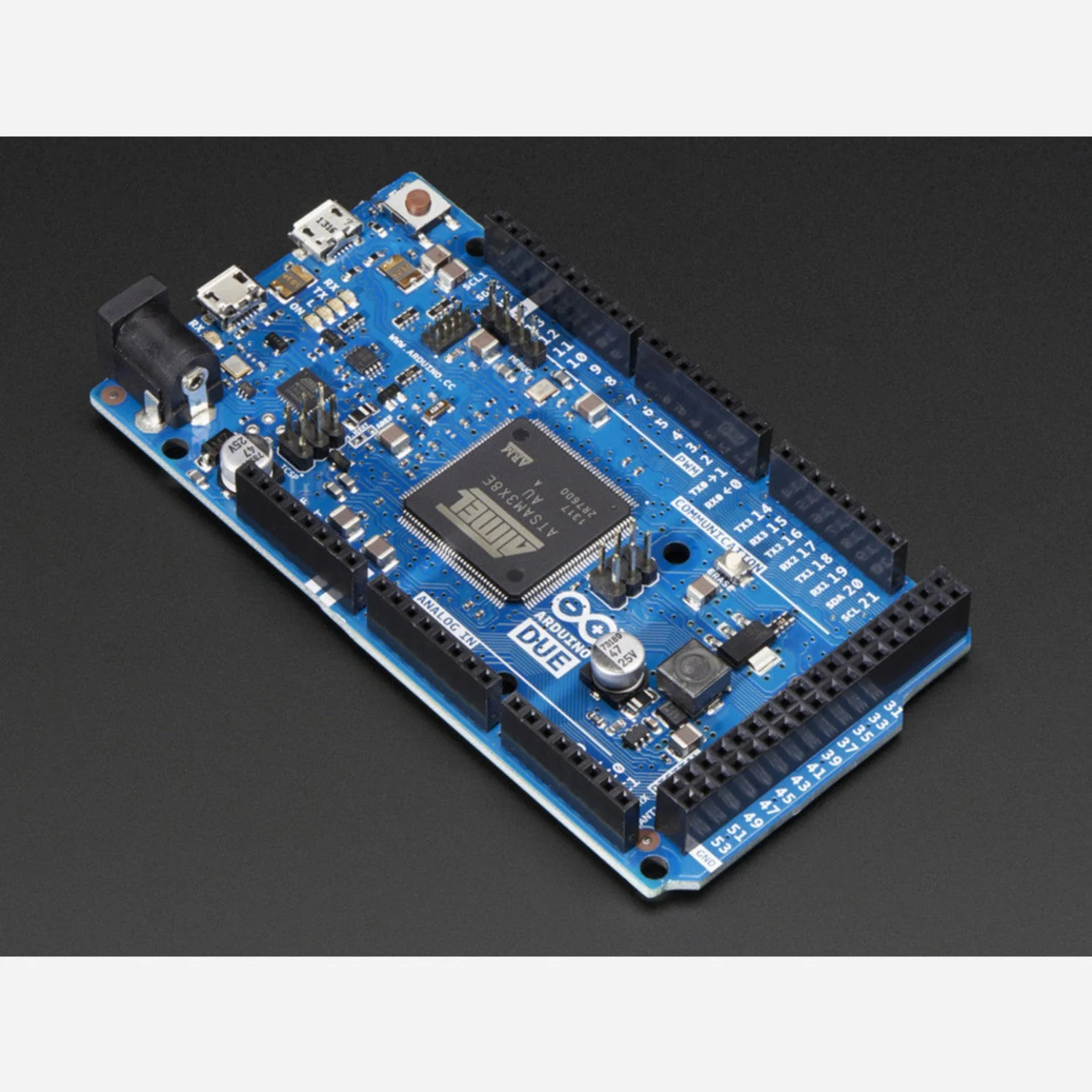

The Arduino Due is Arduino's first ARM-based development board, powered by the Atmel SAM3X8E — a 32-bit Cortex-M3 processor running at 84MHz. With 512KB of flash, 96KB of SRAM, 12-bit ADC/DAC, USB host capability, and CAN bus support, it's the go-to board for projects that demand serious computing power.

The Due excels at audio applications, signal processing, and data acquisition thanks to its 12-bit analogue inputs and dual DAC outputs. The USB 2.0 host interface lets you connect peripherals like mice, keyboards, cameras, and mobile phones directly. It also supports the Android ADK protocol.

Key Features

• 84MHz ARM Cortex-M3 – AT91SAM3X8E with 512KB flash and 96KB SRAM
• 12-Bit ADC – 12 analogue inputs with high-speed, high-resolution sampling
• Dual 12-Bit DAC – True analogue output for audio (WAV/OGG playback examples included)
• USB 2.0 Host – Connect USB devices directly (mice, keyboards, cameras, phones)
• CAN Bus Interface – High-speed automotive and industrial communication
• 70 I/O Pins – 54 digital (12 PWM) plus 12 analogue inputs
• 4 Hardware UARTs – High-speed serial communication
• 2 I²C Buses – Dual TWI interfaces

Specifications

• Microcontroller: AT91SAM3X8E
• Operating Voltage: 3.3V
• Input Voltage: 7–12V recommended
• Flash Memory: 512KB
• SRAM: 96KB
• Clock Speed: 84MHz
• PWM Channels: 12

Ideal For

• Audio playback and signal processing projects
• High-speed data acquisition and sensor logging
• Digital fabrication (3D printers, laser cutters, CNC machines)
• Drone and robotics projects requiring fast sensor processing
• USB host applications with external peripherals

Package Contents

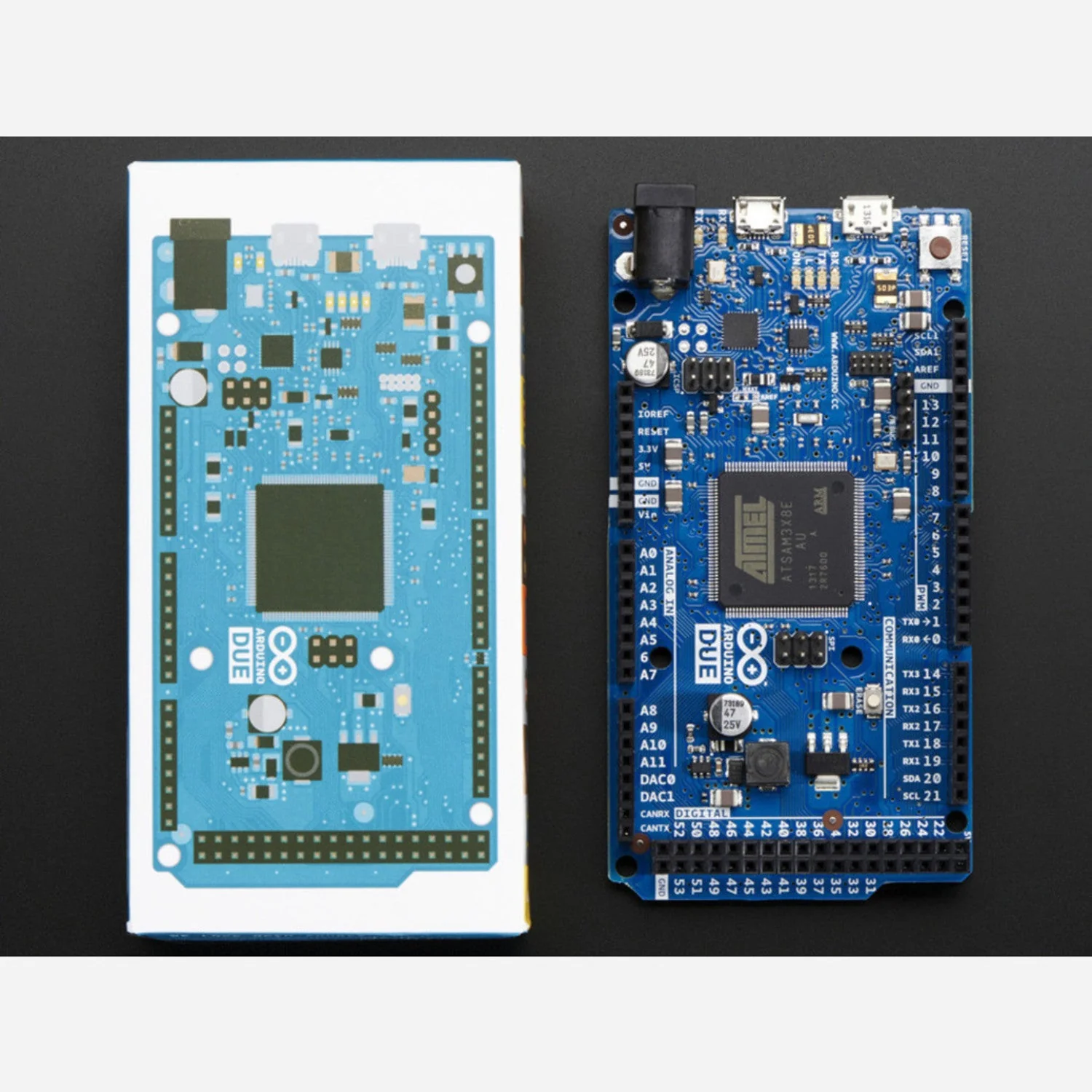

• 1× Arduino Due board (assembled)
