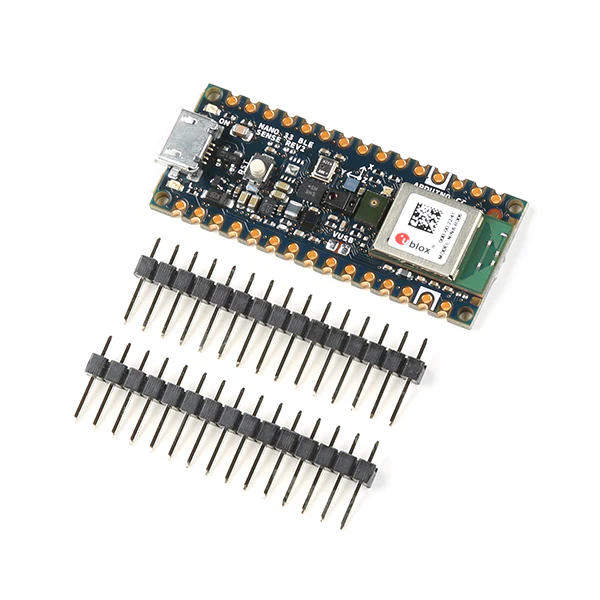

Arduino Nano BLE Sense Rev2
The Arduino Nano 33 BLE Sense Rev2 packs a powerful nRF52840 processor, Bluetooth 5.0, and an impressive array of on-board sensors into the compact Nano form factor. With a 9-axis IMU, microphone, gesture/light/proximity sensor, barometric pressure, temperature, and humidity sensors built in, it's ready for TinyML edge AI applications right out of the box.
Create machine learning models using TensorFlow Lite and upload them via the Arduino IDE. The 1MB flash and 256KB SRAM provide ample room for complex applications, while ultra-low power consumption makes it ideal for wearable and battery-powered projects.
Key Features
- Processor – nRF52840 ARM Cortex-M4F @ 64MHz
- Memory – 1MB flash, 256KB SRAM
- Bluetooth – BT 5.0 with NFC pairing
- Operating Voltage – 3.3V (input limit: 21V)
- Digital I/O – 14 pins (all PWM capable, all support external interrupts)
- Analog Inputs – 8 pins (12-bit ADC, 200k samples/s)
- Interfaces – 1× UART, 1× SPI, 1× I2C
- USB – Native USB on nRF52840
- Current Per Pin – 15mA
- Dimensions – 45 × 18mm
On-Board Sensors
- IMU – BMI270 (accelerometer/gyroscope) + BMM150 (magnetometer)
- Microphone – MP34DT05 digital MEMS
- Gesture, Light, Proximity, Colour – APDS9960
- Barometric Pressure – LPS22HB
- Temperature & Humidity – HS3003
Ideal For
- TinyML and edge AI applications
- Wearable electronics and gesture recognition
- Environmental sensing and IoT
- BLE-connected interactive projects
Package Contents
- 1× Arduino Nano 33 BLE Sense Rev2
- 2× 15-Pin Headers
