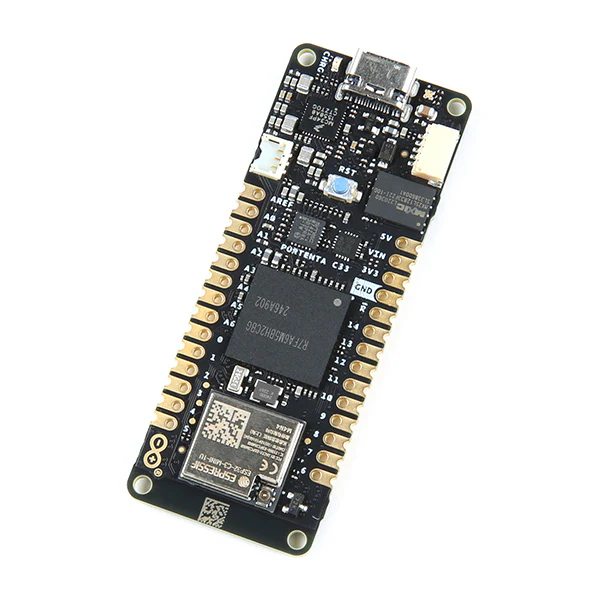

Arduino Portenta C33
The Arduino Portenta C33 is a cost-effective industrial-grade module built around the Renesas R7FA6M5BH2CBG Arm Cortex-M33 microcontroller running at up to 200 MHz. It supports MicroPython and Arduino sketches, with onboard Wi-Fi, Bluetooth Low Energy, and 100 Mbps Ethernet for connected applications.
Security is handled by an NXP SE050C2 secure element at the hardware level, and the board supports over-the-air firmware updates via Arduino IoT Cloud or third-party services. The Portenta form factor with castellated pins makes it suitable for both prototyping and automated assembly lines.
Key Features
- Arm Cortex-M33 @ 200 MHz – Renesas R7FA6M5BH2CBG with Arm TrustZone and Secure Crypto Engine 9
- Wi-Fi + Bluetooth LE – Onboard wireless connectivity
- 100 Mbps Ethernet – Onboard PHY for wired networking
- Hardware Security – NXP SE050C2 secure element
- OTA Updates – Over-the-air firmware via Arduino IoT Cloud
- Castellated Pins – Compatible with Portenta and MKR form factors
- USB-C – High-speed USB connectivity
Specifications
- MCU – Renesas R7FA6M5BH2CBG (Arm Cortex-M33, up to 200 MHz)
- SRAM – 512 KB onboard
- Flash – 2 MB onboard + 16 MB external QSPI
- Connectivity – Wi-Fi, Bluetooth LE, 100 Mbps Ethernet
- Security – NXP SE050C2 secure element, Arm TrustZone
- Interfaces – CAN, SD card, ADC, GPIO, SPI, I²S, I²C, JTAG/SWD
- USB – USB-C (High Speed)
- Operating Temperature – −40°C to +85°C
- Dimensions – 66.04 × 25.40 mm
Ideal For
- IoT gateways and connected devices
- Remote control and fleet management systems
- Industrial process monitoring
- AI-powered edge applications
Package Contents
- 1× Arduino Portenta C33
