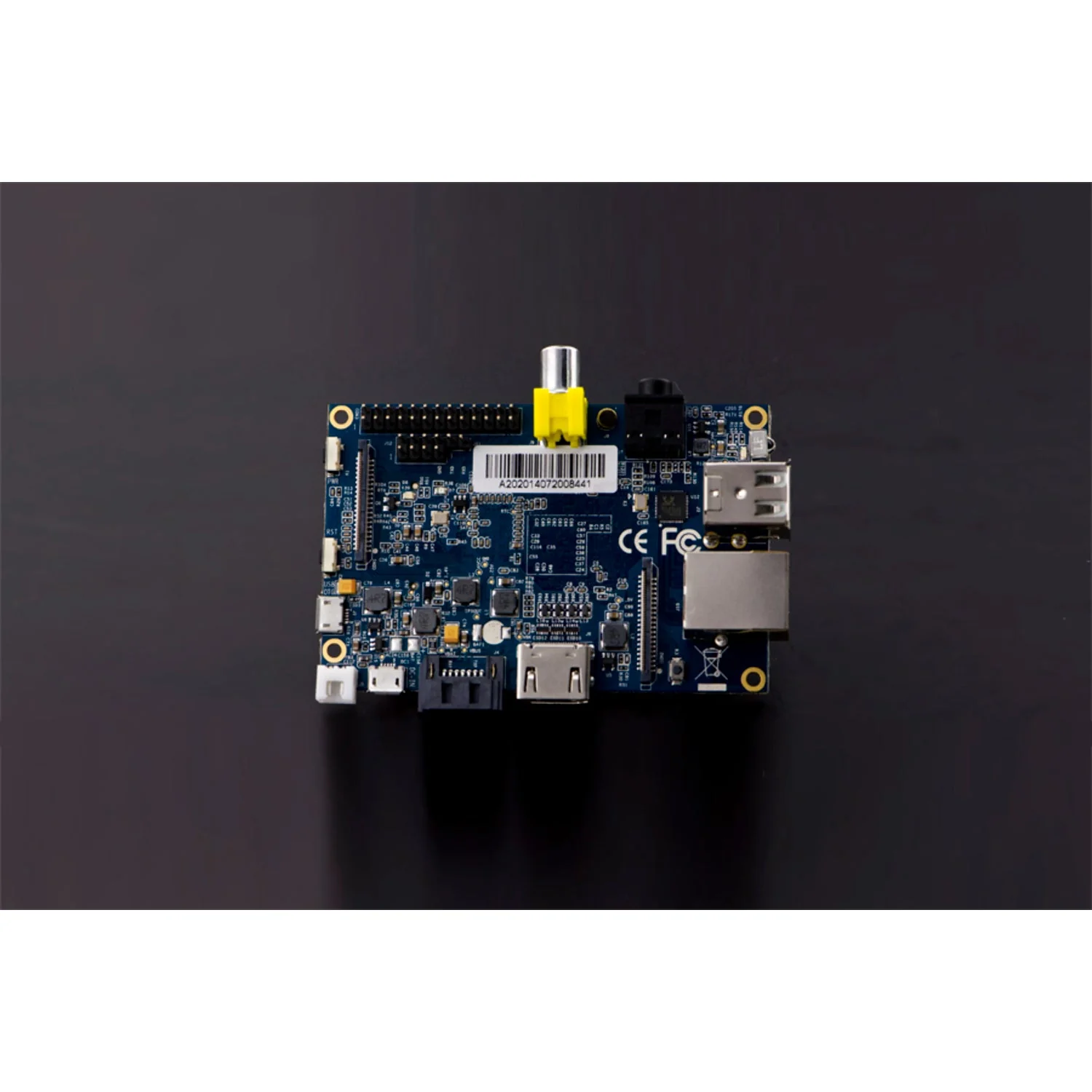

The Banana Pi M1 is a dual-core single-board computer powered by the AllWinner A20 SoC with 1 GB DDR3 RAM. It features Gigabit Ethernet, a SATA port for hard drive storage, HDMI output, and a Raspberry Pi–compatible GPIO header — all in a credit-card-sized board.

Compatible with Android, Ubuntu, Debian, and other Linux distributions. The GPIO layout allows many Raspberry Pi accessories and images to work directly.

Specifications

• CPU – AllWinner A20 ARM Cortex-A7 Dual-Core, 1 GHz
• GPU – ARM Mali-400 MP2 (OpenGL ES 2.0/1.1)
• RAM – 1 GB DDR3 (shared with GPU)
• Storage – MicroSD (up to 64 GB), SATA (up to 2 TB on 2.5″ drive)
• Network – Gigabit Ethernet (10/100/1000), optional Wi-Fi
• USB – 2× USB 2.0, 1× Micro-USB OTG
• Video Output – HDMI, CVBS, LVDS/RGB
• Video Input – CSI camera connector
• Audio – 3.5 mm jack, HDMI
• GPIO – 26-pin header (UART, I²C, SPI, CAN, ADC, PWM)
• Power – 5V via Micro-USB (DC in)
• IR – Infrared receiver
• Buttons – Reset, Power, Boot (optional)
• LEDs – Power (red), Ethernet (blue), User (green)
• Size – 92 × 60 mm
• Weight – 48 g

Supported Operating Systems

• Android 4.2+
• Ubuntu / Lubuntu
• Debian
• Raspberry Pi images (via GPIO compatibility)

Package Contents

• 1× Banana Pi M1 board

Resources

• Banana Pi M1 Wiki
• Getting Started Guide
