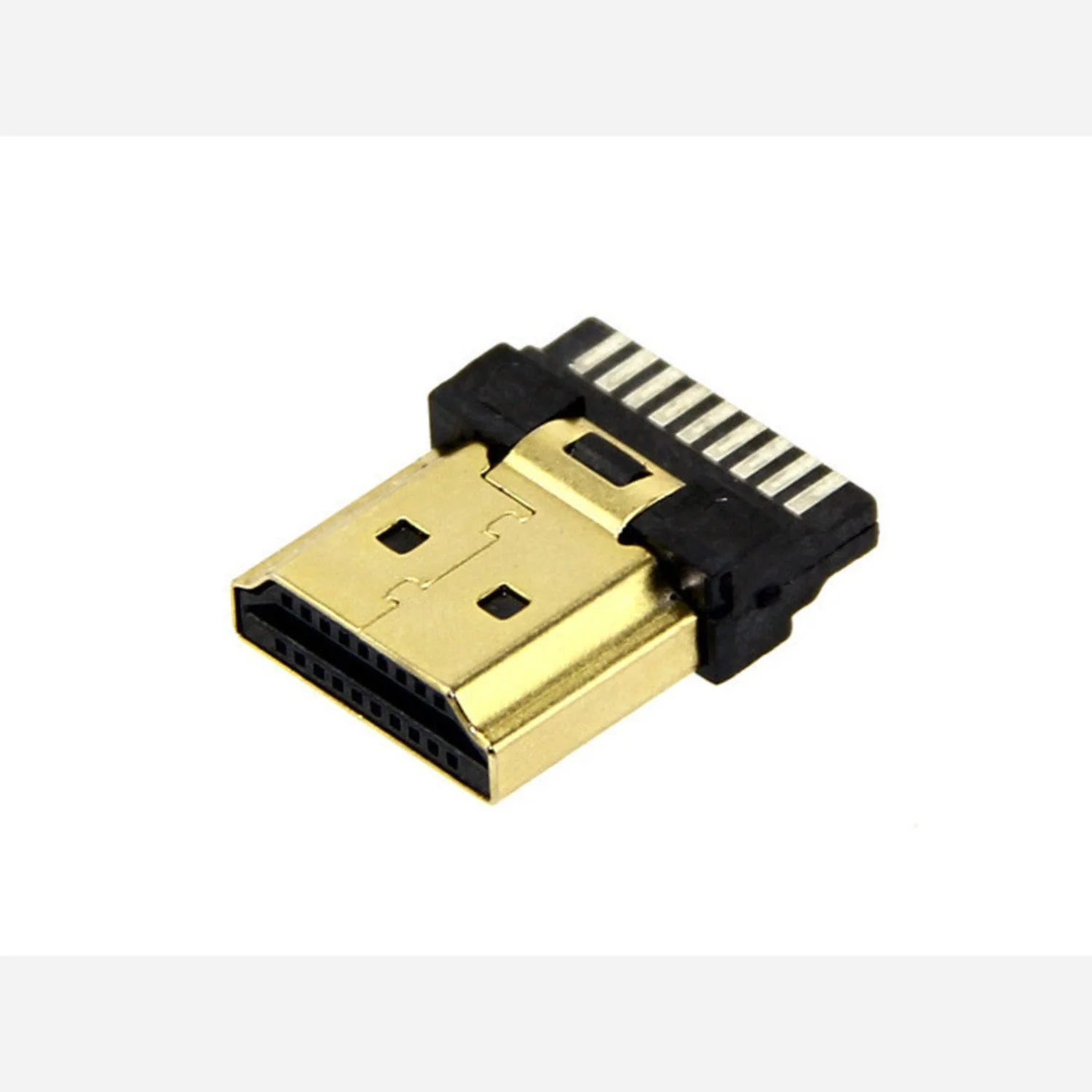

Bare HDMI Male Connector
This is HDMI male connector without wire. It exposes all the HDMI wire as bare pins so that you can hack it easily.
Features:
- Bare connector
- Easy to hack
Specification:
- Current rating: 0.5A AC,DC
- Voltage rating: 40V AC,DC
- Temperature range: -40℃ to +85℃
- Withstand voltage: 500V/min
- Contact resistance: contact<=0.03Ω,housing<=0.05Ω
- Insulation resistance: >=10MΩ
- Base: LCP UL94V-0
- Coat: Phosphor bronze nickel plated
$1.93
Bare HDMI Male Connector—
$1.93
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This is HDMI male connector without wire. It exposes all the HDMI wire as bare pins so that you can hack it easily.
Features:
- Bare connector
- Easy to hack
Specification:
- Current rating: 0.5A AC,DC
- Voltage rating: 40V AC,DC
- Temperature range: -40℃ to +85℃
- Withstand voltage: 500V/min
- Contact resistance: contact<=0.03Ω,housing<=0.05Ω
- Insulation resistance: >=10MΩ
- Base: LCP UL94V-0
- Coat: Phosphor bronze nickel plated
