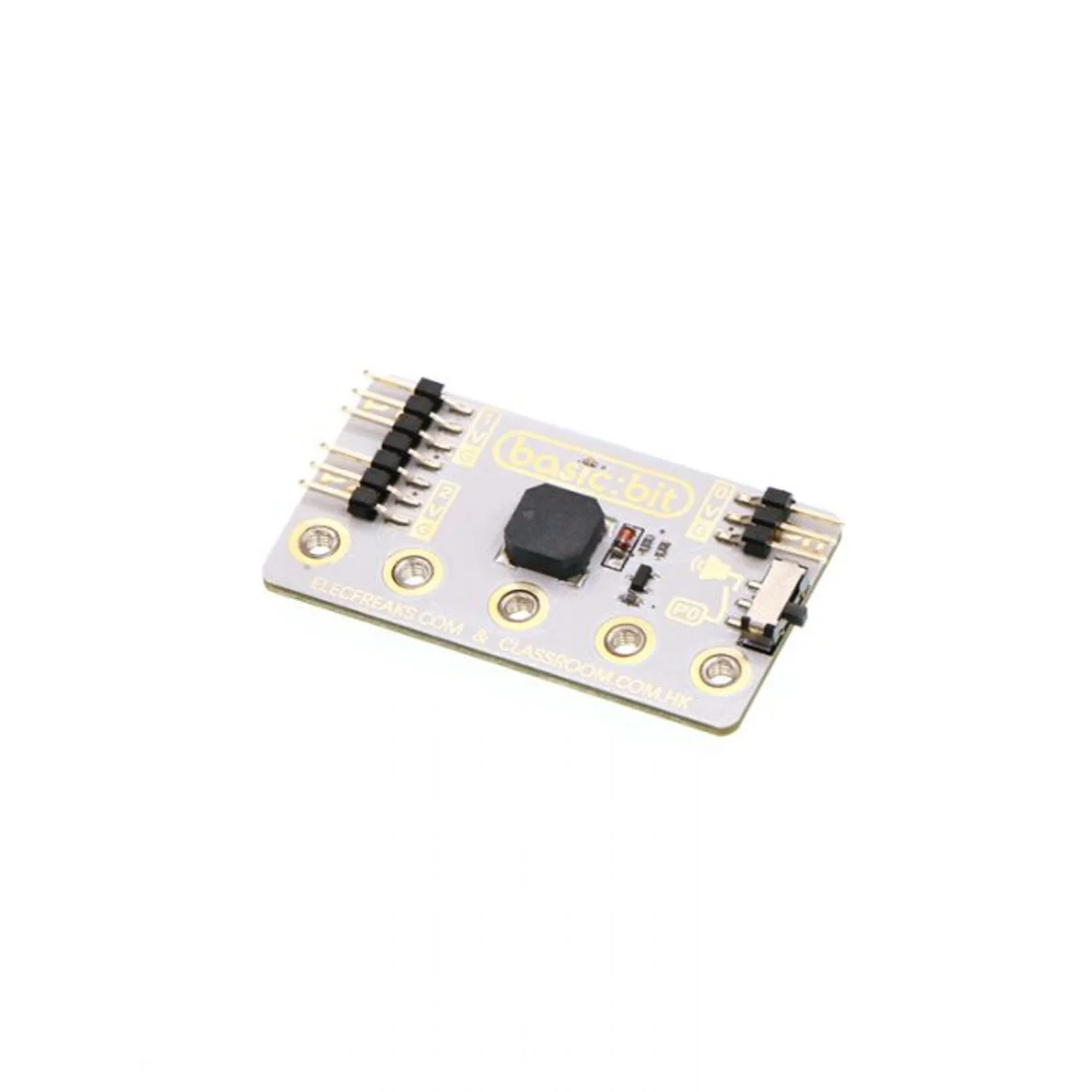

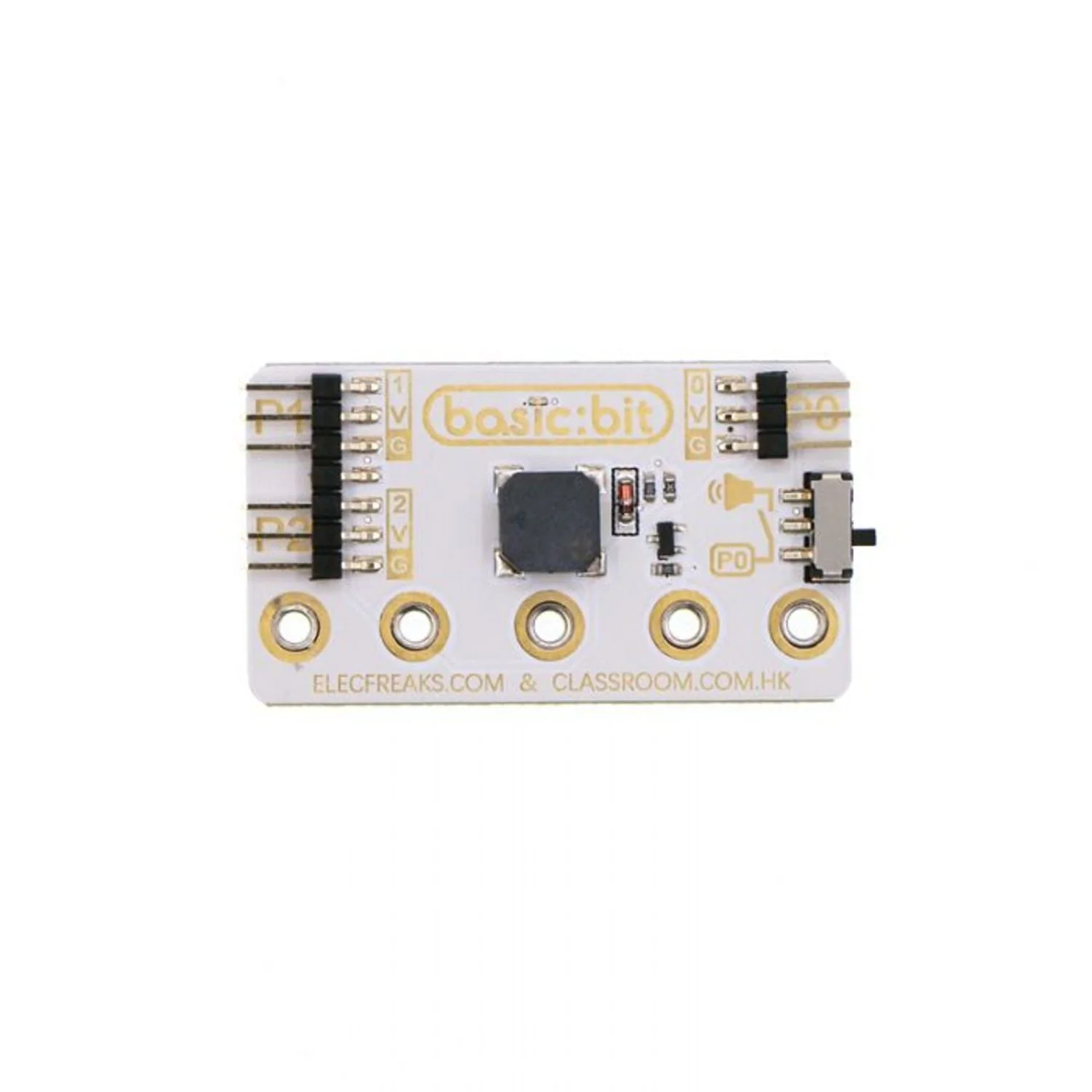

Basic:bit is a basic breakout board of micro:bit. It carries a buzzer and three groups of GVS pins(P0/P1/P2) on board. Each group of GVS pins separately leads out the IO port, 3V port and GND port on micro:bit. Small size with simple structure, it is quite enough for you to complete 98% micro:bit projects.

Features

Small size with smart design, it is a perfect match for your micro:bit.

Easily connected to micro:bit and lead out its power and IO ports with screws only.

Lead out P0/P1/P2/3V/GND port on micro:bit board.

Allow you to complete 98% micro:bit projects with three IO ports.

The switch on board controls the ON/OFF status of buzzer.

 Quick Start

Material Needed:

1 x micro:bit

1 x basic:bit

1 x Octopus LED Module

1 x USB Cable

1 x GVS wire（Or Jumper Wire)

Assembly

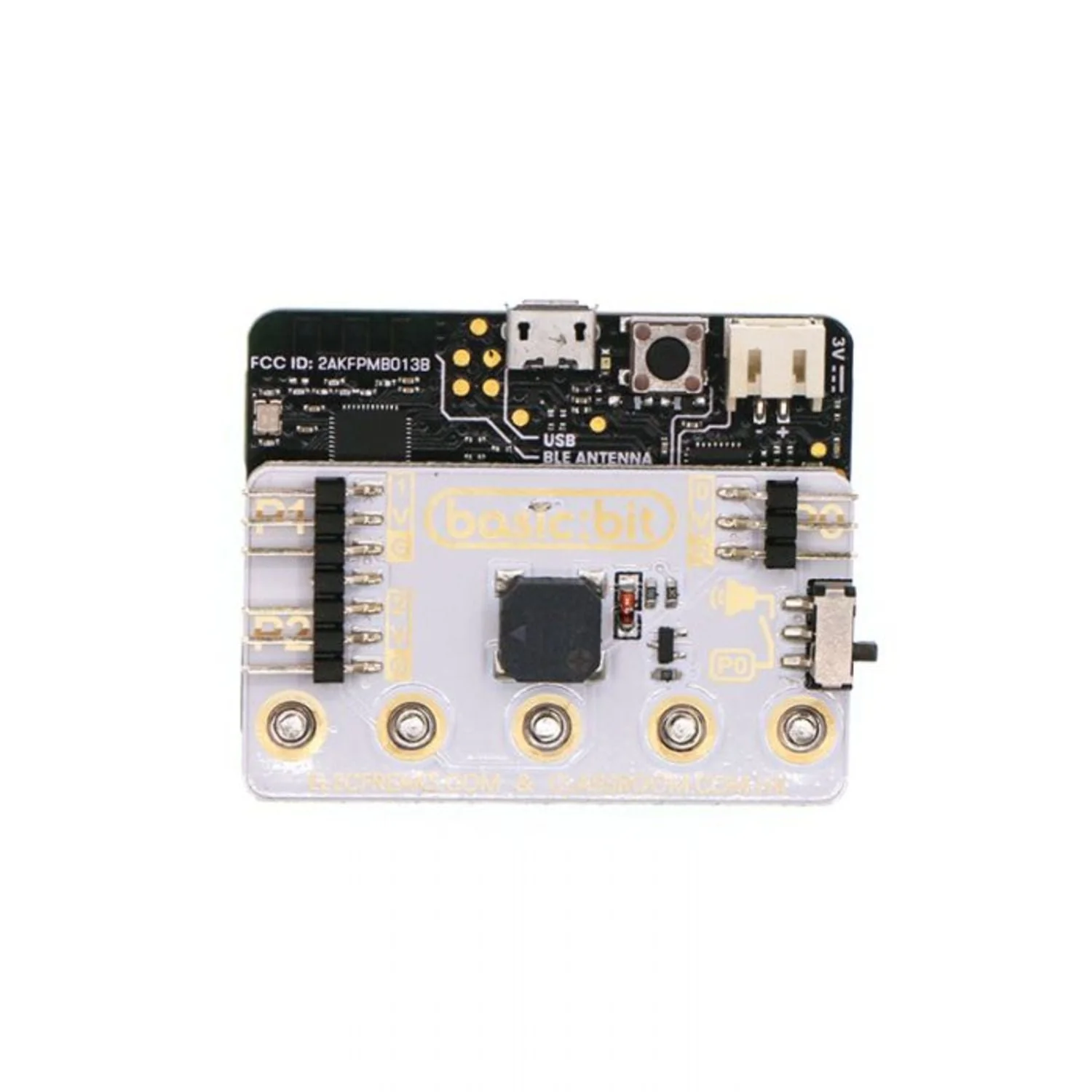

Fix your basic:bit onto micro:bit with screws and nuts.

Connect Octopus LED module to P1 port on your basic:bit.

Then slide the switch to the speaker end.

Example Code

You can see the whole program via the link

 After saving the above code into micro:bit, the buzzer starts to play the music again and again. At the same time, Octopus LED module twinkles with 1 second space.

Parameter

Voltage: 3.3V （Powered by micro:bit）

IO Ports: 3

Dimension: 51.7mm x 29.1 mm

Documents

Basic:bit Guide
