The BitScope Micro (BS05U) is a compact, probe-sized mixed signal oscilloscope and test instrument. Despite its tiny form factor, it delivers full-featured oscilloscope, logic analyser, and waveform generator functionality — all powered over USB.

Compatible with Windows, macOS, Linux, and Raspberry Pi, BitScope Micro is fully user-programmable and comes with powerful desktop software. It's the ideal diagnostic and debugging tool for analog, digital, and mixed signal circuits.

Key Features

• 20 MHz Bandwidth – Suitable for a wide range of analog and digital signals
• 8 Channels – 2 analog + 6 digital for mixed signal analysis
• 40 MS/s Sample Rate – Captures fast transients and high-frequency signals
• 12 kB Buffer – Onboard capture memory at 3.0 Mb/s transfer
• USB Powered – No external power supply needed
• Waveform Generator – Built-in signal generation for testing
• Lightweight & Water Resistant – Rugged enough for field use
• Fully Programmable – Customise and extend functionality via software

Cross-Platform Software

• Windows
• macOS
• Linux
• Raspberry Pi

Ideal For

• Electronics debugging and circuit diagnostics
• Mixed signal analysis (analog + digital)
• Education and STEM learning
• Portable test and measurement in the field

Package Contents

• 1× BitScope Micro (BS05U)

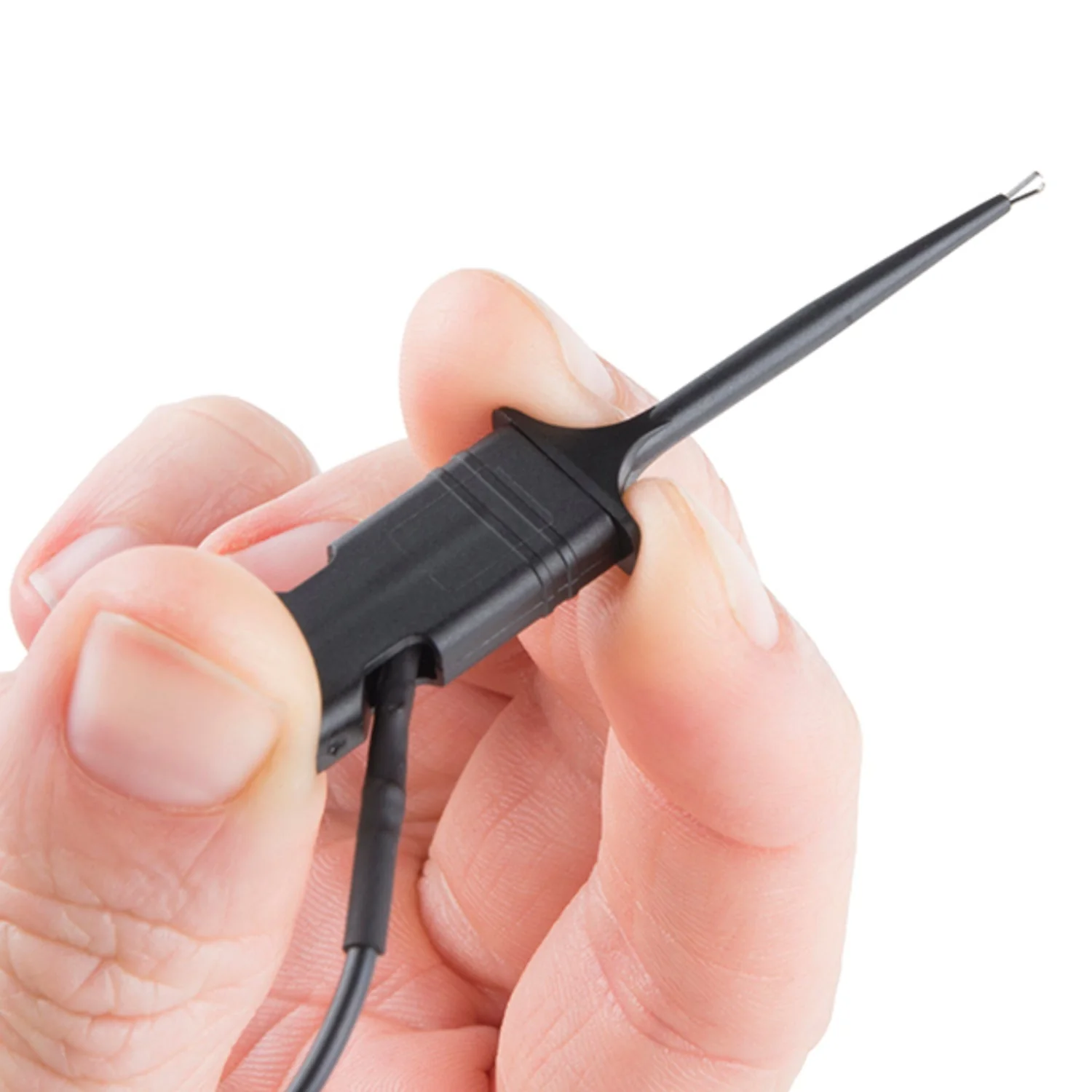

• 10× Mixed signal mini-grabber test probes
• 1× USB cable
• Software download
