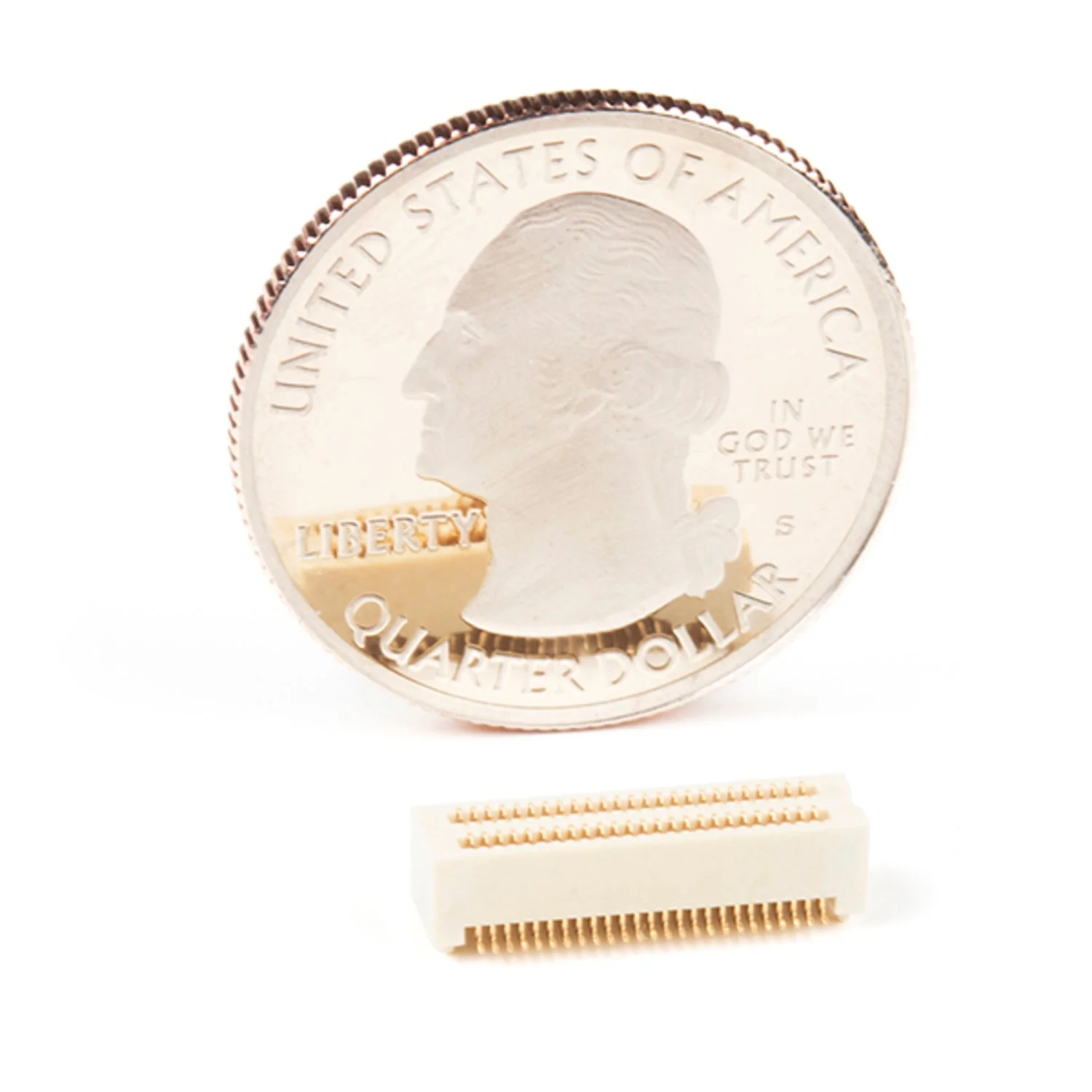

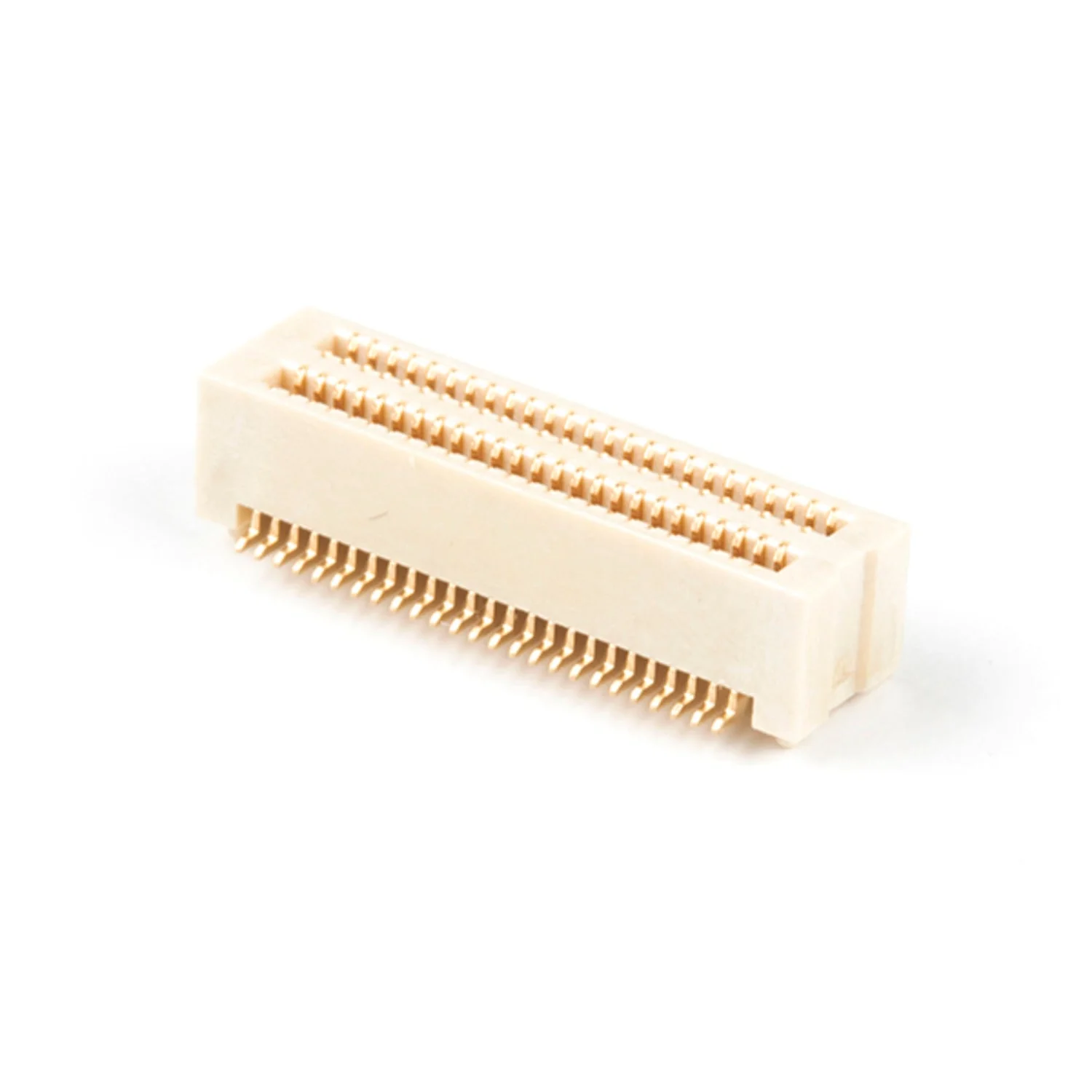

This surface-mount 50-pin board-to-board connector with 0.5 mm pitch and double-slot male configuration is used on Alchitry FPGA boards. Soldered to the underside of a board, these connectors allow Alchitry FPGA boards to stack on one another for modular expansion.

Sold as a single connector — four are needed for a complete Alchitry board stack.

Key Features

• 50-Pin Configuration – High-density board-to-board connection
• 0.5 mm Pitch – Compact spacing for space-constrained designs
• Double-Slot Male – Designed for stacking board configurations
• Surface Mount – SMD soldering for secure, low-profile attachment

Ideal For

• Alchitry FPGA board stacking
• Custom board-to-board connections at 0.5 mm pitch
• FPGA development and prototyping

Package Contents

• 1× 50-Pin 0.5 mm Board-to-Board Double Slot Male Connector
