Breakout Board for XBee Module

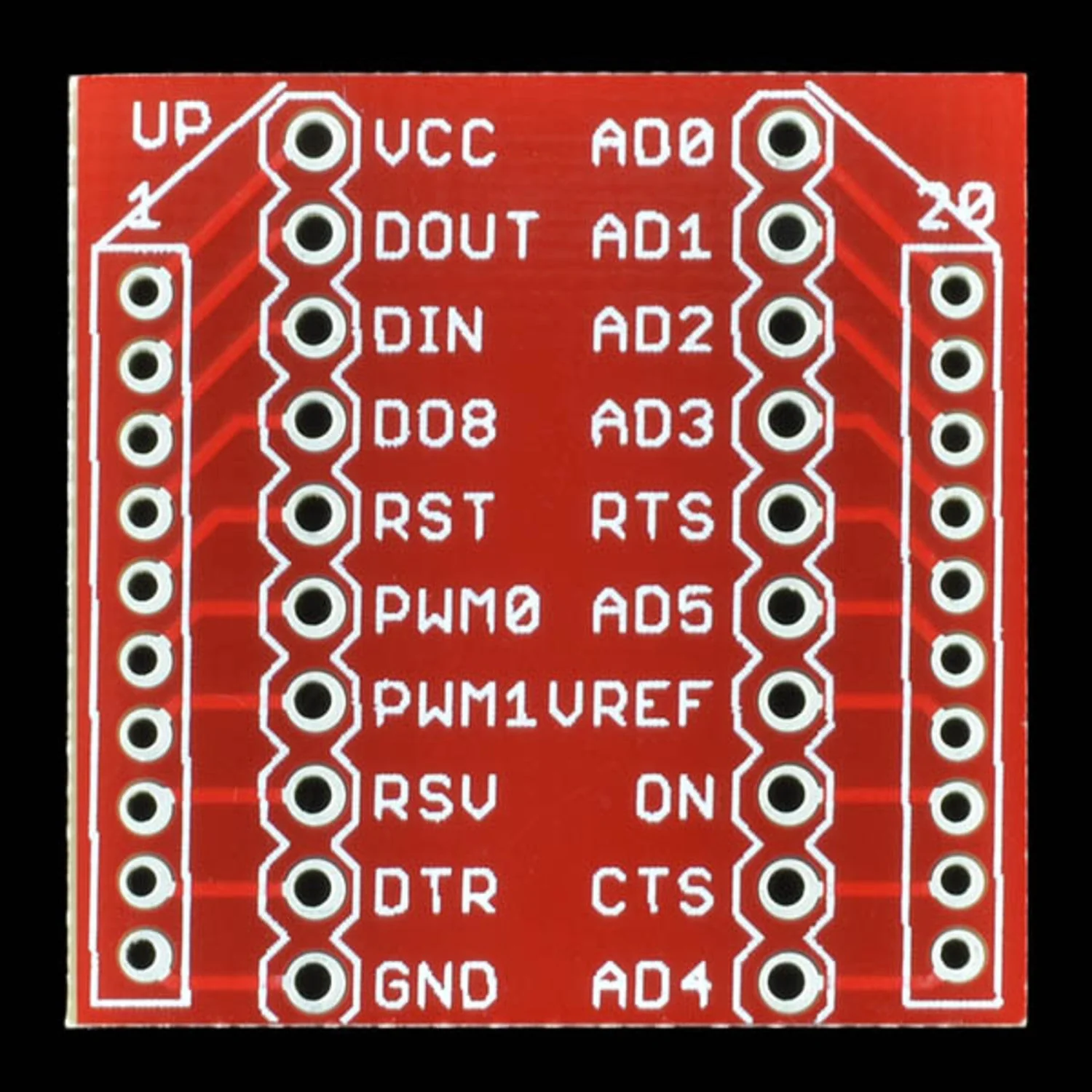

This is a simple breakout board for the popular XBee product from Digi. This board breaks out all 20 pins of the XBee to a 0.1" standard spacing dual row header. The spacing between 0.1" headers is 0.5" making it breadboard DIP friendly. We highly recommend using the female sockets to avoid having to solder the XBee permanently to the breakout board. This is the PCB only. Please order the accompanying 2mm sockets (you’ll need 2!) and 0.1" headers below.
Documents:
- Schematic
- Eagle Files
- 5V Interface to 3V XBee module
- X-CTU Software
- GitHub (Design Files)
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This is a simple breakout board for the popular XBee product from Digi. This board breaks out all 20 pins of the XBee to a 0.1" standard spacing dual row header. The spacing between 0.1" headers is 0.5" making it breadboard DIP friendly. We highly recommend using the female sockets to avoid having to solder the XBee permanently to the breakout board. This is the PCB only. Please order the accompanying 2mm sockets (you’ll need 2!) and 0.1" headers below.
Documents:
- Schematic
- Eagle Files
- 5V Interface to 3V XBee module
- X-CTU Software
- GitHub (Design Files)
