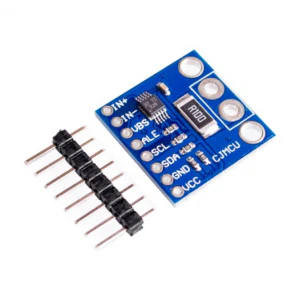

CJMCU-226 INA226 Voltage Current Power Monitor Alarm Module 36V Bi-Directional I2C

Product image 1
1 / 2

CJMCU-226 INA226 Voltage Current Power Monitor Alarm Module 36V Bi-Directional I2C

The CJMCU-226 INA226 is a powerful voltage, current, and power monitoring module designed for high precision in both high-side and low-side sensing applications. With its bi-directional current sensing capability and wide operating range, this module is perfect for a variety of applications, including battery management systems, power supply monitoring, and energy management.
The INA226 communicates over the I2C interface and allows for configurable averaging and 12 programmable addresses, providing flexibility in complex systems. It features impressive accuracy, with a gain error of only 0.1% and a maximum offset of 10μV. Designed to operate from a 2.7V to 5.5V power supply, it can monitor bus voltages up to 36V, making it a versatile solution for monitoring and controlling power in your projects.
Features:
  • Voltage Range: Monitors bus voltages from 0V to 36V
  • Bi-Directional Current Sensing: Capable of measuring current in both directions
  • High Accuracy:
    • 0.1% gain error (max)
    • 10μV offset (max)
  • Reports: Current, voltage, and power measurements for comprehensive monitoring
  • Configurable Averaging: Options for accurate data filtering
  • I2C Interface: Supports 12 programmable addresses for flexible integration
  • Power Supply: Operates from 2.7V to 5.5V
  • Package: 10-pin DGS (VSSOP) for easy soldering and integration
$0.96

Original: $3.19

-70%
CJMCU-226 INA226 Voltage Current Power Monitor Alarm Module 36V Bi-Directional I2C—

$3.19

$0.96

Product Information

Shipping & Returns

Description

The CJMCU-226 INA226 is a powerful voltage, current, and power monitoring module designed for high precision in both high-side and low-side sensing applications. With its bi-directional current sensing capability and wide operating range, this module is perfect for a variety of applications, including battery management systems, power supply monitoring, and energy management.
The INA226 communicates over the I2C interface and allows for configurable averaging and 12 programmable addresses, providing flexibility in complex systems. It features impressive accuracy, with a gain error of only 0.1% and a maximum offset of 10μV. Designed to operate from a 2.7V to 5.5V power supply, it can monitor bus voltages up to 36V, making it a versatile solution for monitoring and controlling power in your projects.
Features:
  • Voltage Range: Monitors bus voltages from 0V to 36V
  • Bi-Directional Current Sensing: Capable of measuring current in both directions
  • High Accuracy:
    • 0.1% gain error (max)
    • 10μV offset (max)
  • Reports: Current, voltage, and power measurements for comprehensive monitoring
  • Configurable Averaging: Options for accurate data filtering
  • I2C Interface: Supports 12 programmable addresses for flexible integration
  • Power Supply: Operates from 2.7V to 5.5V
  • Package: 10-pin DGS (VSSOP) for easy soldering and integration
