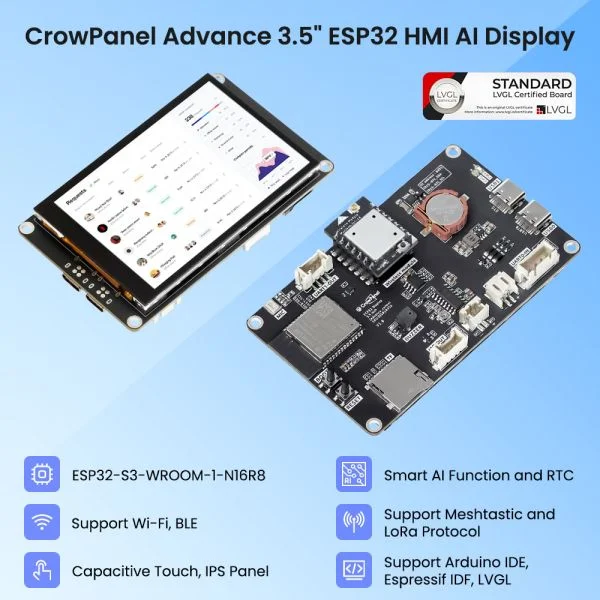

The CrowPanel Advance 3.5" is a Meshtastic-ready HMI touchscreen display powered by an ESP32-S3 with an onboard SX1262 LoRa module. It features a 480 × 320 IPS capacitive touch panel, integrated AI voice interaction via microphone and speaker, and a replaceable wireless module design for flexible connectivity options.

Pre-loaded with the Meshtastic firmware, this display connects to the open-source, off-grid mesh network out of the box. It supports development via Arduino IDE, ESP-IDF, PlatformIO, and the LVGL graphics library.

Key Features

• ESP32-S3-WROOM-1-N16R8 – Dual-core Xtensa LX7 at 240 MHz, 512 KB SRAM, 8 MB PSRAM, 16 MB Flash
• 3.5" IPS Display – 480 × 320 resolution, ILI9488 driver, 178° viewing angle, 400 cd/m²
• Capacitive Touch – Single-point touch
• SX1262 LoRa Module – Meshtastic-compatible, 868/915 MHz with included antenna (3.5 dBi gain)
• Wi-Fi & Bluetooth – 802.11 b/g/n (2.4 GHz) + Bluetooth 5.0/BLE with built-in antenna
• AI Voice Interaction – Onboard microphone and speaker port with audio amplifier for voice recognition and speech synthesis
• RTC – Real-time clock maintains time through power loss

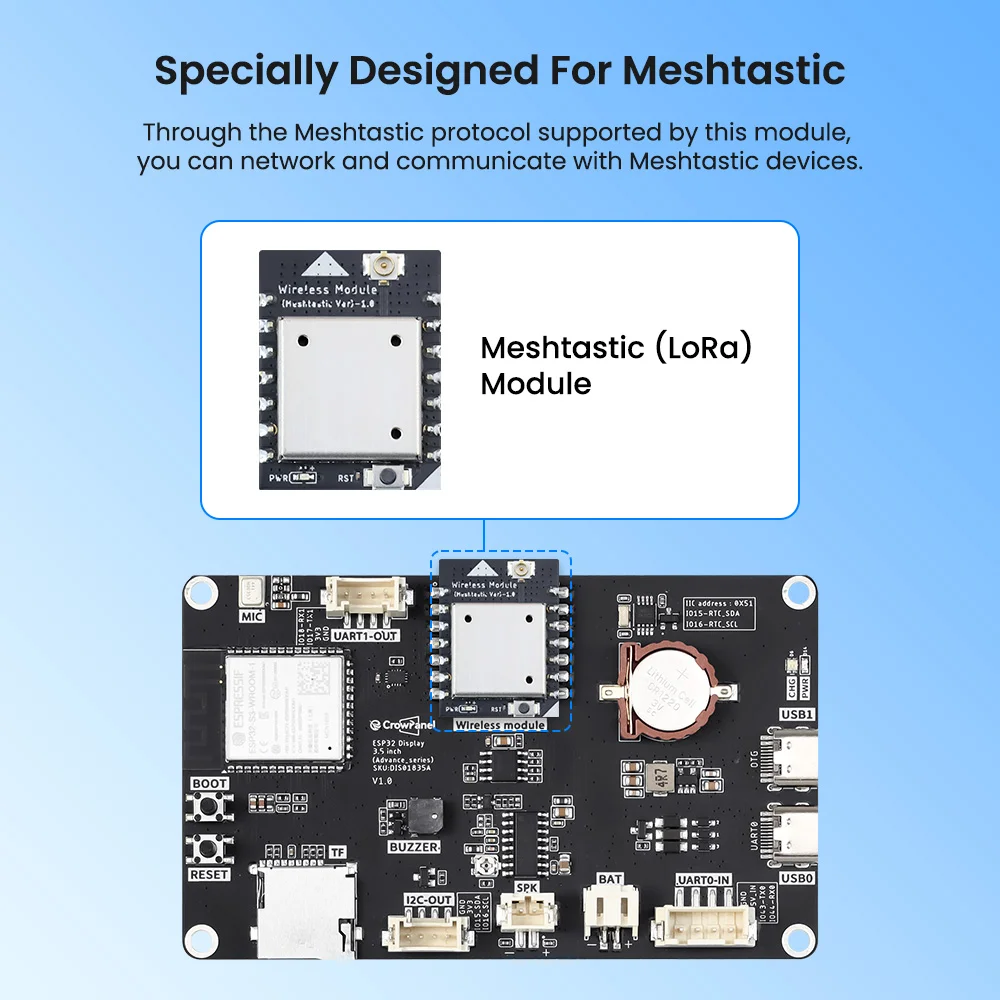

• Replaceable Wireless Module – Swap the LoRa module for Zigbee, nRF2401, Matter, Thread, or Wi-Fi 6

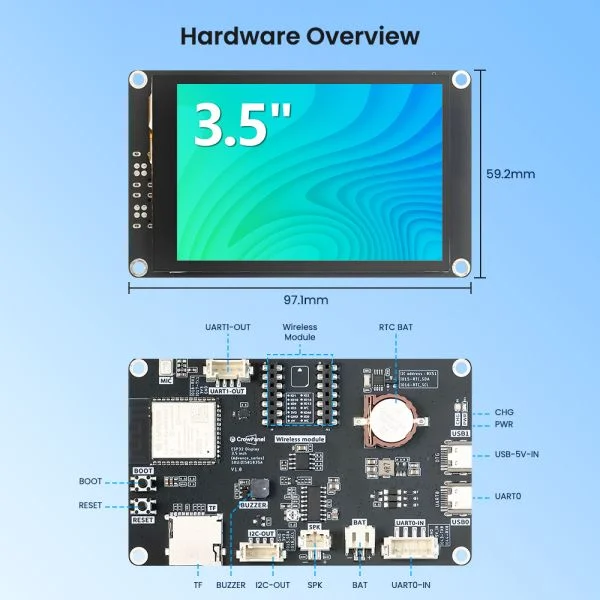

• Interfaces – USB-C, UART, I²C, SD card slot, battery socket (with charging circuit)
• Development – Arduino IDE, ESP-IDF, PlatformIO, LVGL, C/C++

Specifications

• Power Input – 5 V / 2 A via USB or UART terminal
• Operating Temperature – -20°C to 70°C
• Dimensions – 101.4 × 63.3 × 15.8 mm (with case)
• Colour Depth – 16-bit

Package Contents

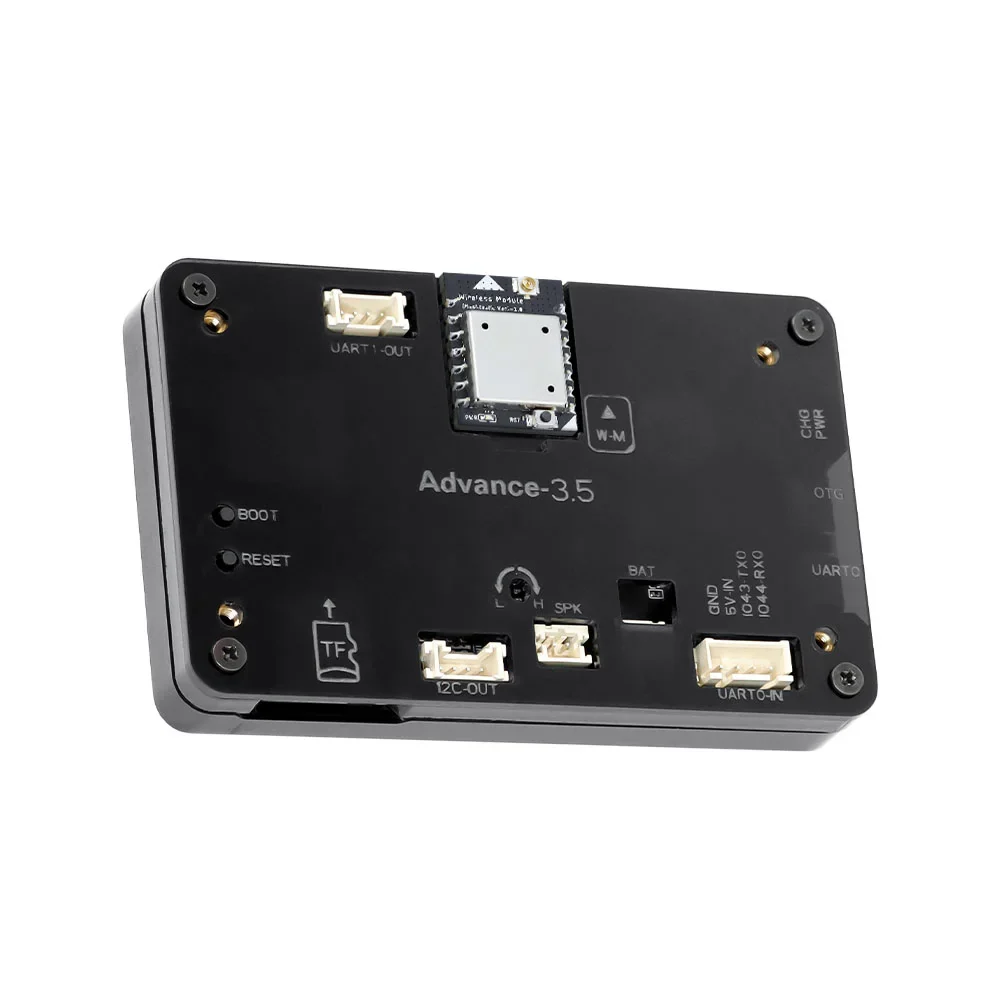

• 1× CrowPanel Advance 3.5" Display (with case)
• 1× SX1262 Meshtastic Wireless Module (with 868/915 MHz antenna)
• 1× USB-A to Type-C Cable
• 1× Crowtail/Grove 4-Pin DuPont Cable
• 1× LoRa Antenna

Resources

• Product Wiki – Pinout, setup guides, and examples
• ESP32-S3 Datasheet (PDF)
• Meshtastic Project
