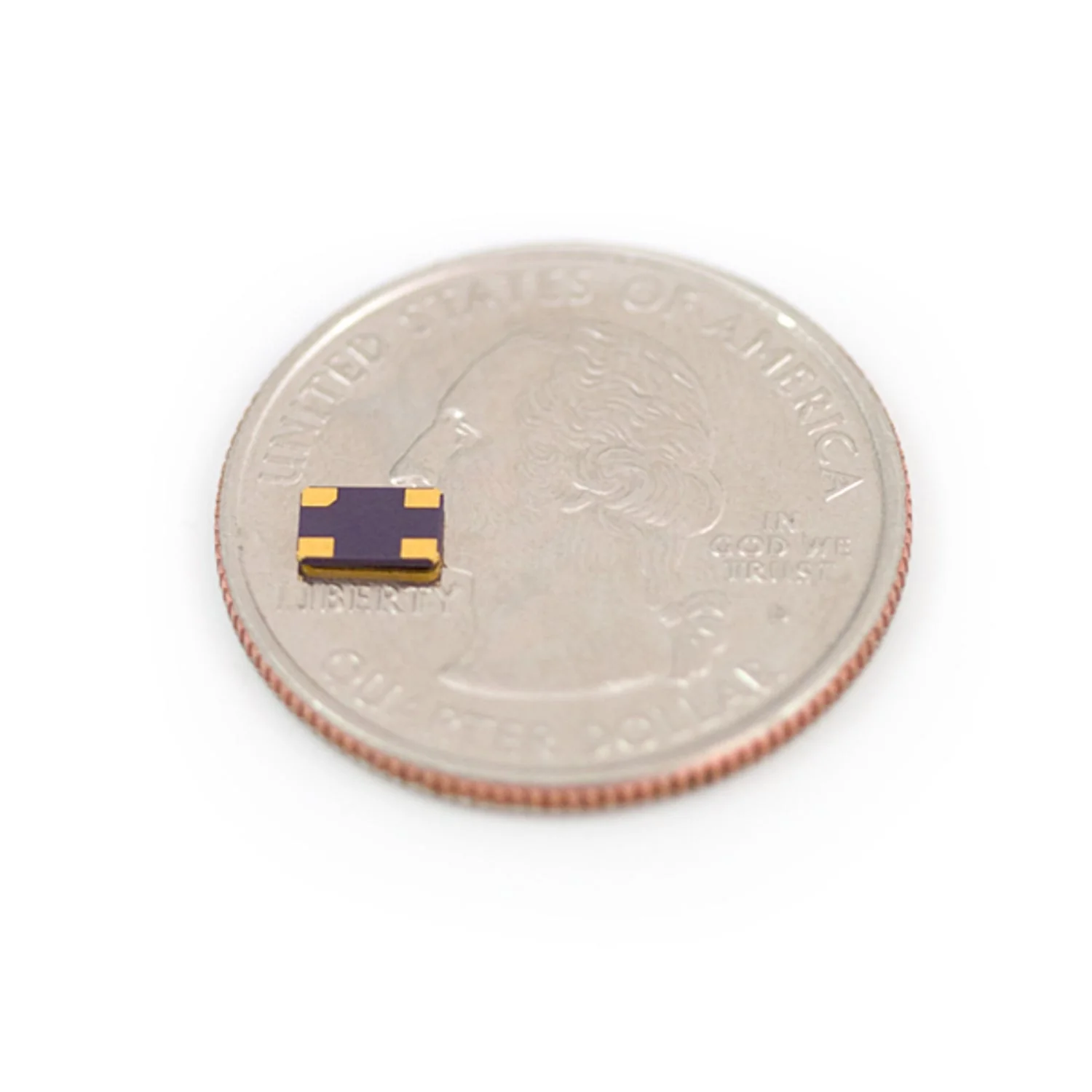

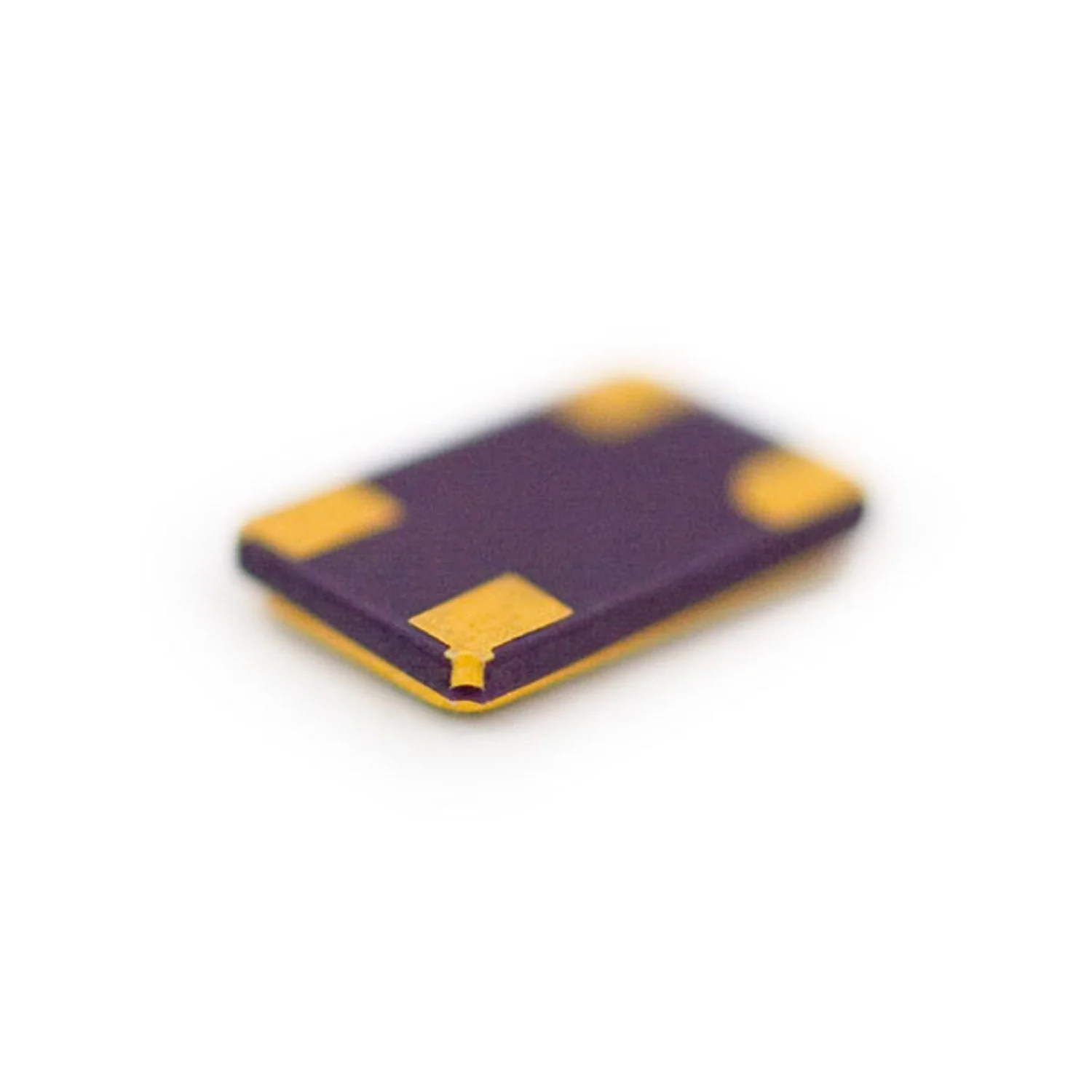

These are very small surface mount quartz crystals used where size is a concern. 24MHz for maximum speed.

Note: The datasheet below is a generic datasheet for many of our crystals. The value of the crystal may not match.

Features:

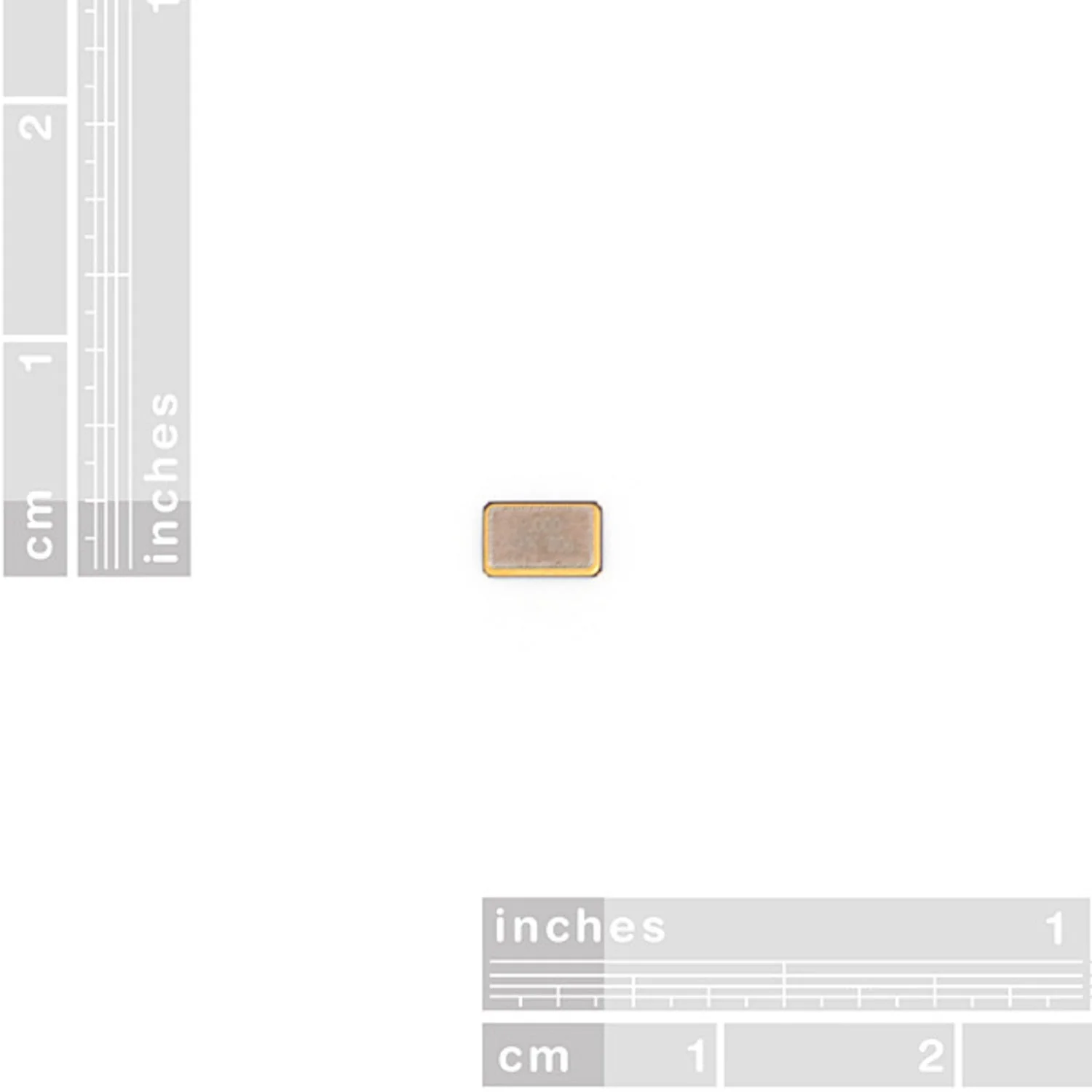

• Small 5x3.2mm footprint
• Operating temperature: -40-85C
• Frequency Tolerance: +/- 20ppm
• 12pF load capacitance

Documents:AT-SMD-5x3.pdf
