Digi XBee® 3 Low-Power LTE-M/NB-IoT, GNSS, no SIM

Product image 1
1 / 4

Digi XBee® 3 Low-Power LTE-M/NB-IoT, GNSS, no SIM

The Digi XBee 3 Global Cellular module is a compact, low-power module designed for rapid integration of cellular IoT capabilities. It combines LTE-M, NB-IoT, and 2G connectivity with Bluetooth Low Energy (BLE) and GNSS positioning in the familiar XBee 20-pin through-hole form factor.

Optimised for low-power, low-data applications such as asset tracking and smart sensors (under 5MB/month), the module features an ultra-low-power deep sleep mode (2.65μA) for extended battery life. It includes MicroPython programmability, the Digi XBee Studio tool suite, and a 12-month Digi Remote Manager subscription for over-the-air updates and monitoring.

Key Features

  • Global Cellular Connectivity – LTE-M, NB-IoT, and 2G fallback with end-device carrier certifications
  • Bluetooth Low Energy – Built-in BLE for local device communication
  • GNSS Positioning – Integrated positioning for asset tracking applications
  • Ultra-Low Power – Deep sleep at just 2.65μA, power save mode at 20μA
  • MicroPython Programmable – 1024kB flash / 64kB RAM for on-module applications
  • Digi TrustFence Security – Secure boot and protected JTAG
  • XBee Form Factor – Standard 20-pin through-hole footprint

Specifications

  • Cellular Chipset: Telit ME310G1-WW
  • Dimensions: 24.38 × 32.94mm
  • Operating Temperature: −40°C to 85°C
  • Supply Voltage: 3.3–4.3 VDC
  • SIM Size: 4FF Nano (not included)

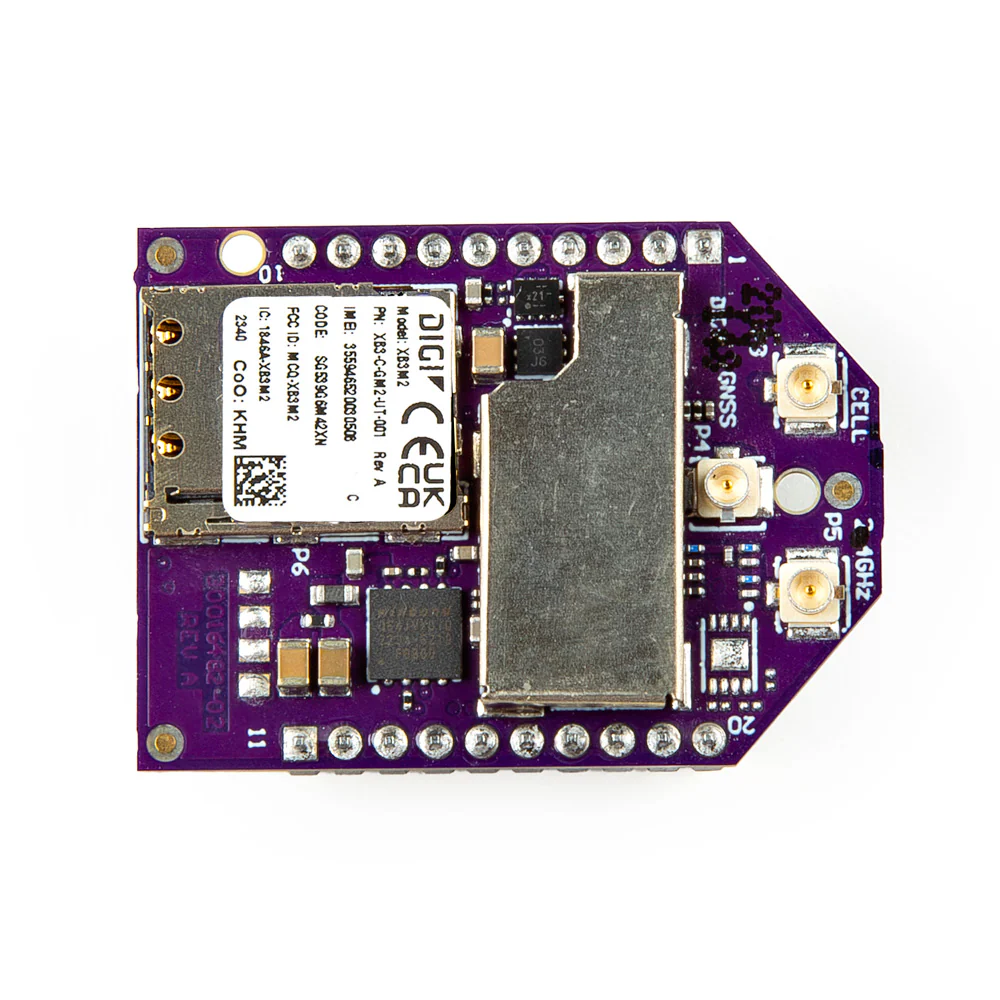

  • Antenna Connectors: 3× U.FL (cellular, Bluetooth, GNSS)
  • Data Interfaces: UART, SPI, USB
  • I/O: 4× ADC (10-bit), 13× digital I/O, USB, I2C
  • Duplex Mode: Half-duplex

Cellular Performance

  • LTE-M: Up to 588kbps down / 1Mbps up, −105dBm sensitivity
  • NB-IoT: Up to 120kbps down / 160kbps up, −113dBm sensitivity
  • 2G: Up to 264kbps down / 210kbps up
  • Transmit Power: Up to 23dBm (LTE-M/NB-IoT), up to 33dBm (2G)
  • Supported Bands: LTE B1–B5, B8, B12, B13, B18–B20, B25–B28, B66, B71, B85; 2G B2, B3, B5, B8

Power Consumption (at 3.3V)

  • Peak Transmit: 550mA (BLE off) / 610mA (BLE on)
  • Idle: 200mA peak, 100mA average
  • Power Save: 20μA
  • Deep Sleep: 2.65μA

Certifications

  • FCC (USA), ISED (Canada), CE/RED (Europe), UKCA (UK)
  • PTCRB, AT&T, and Verizon certified
Note: This module does not include a SIM card or data plan. A nano SIM (4FF) with an LTE-M or NB-IoT data plan is required.

Ideal For

  • IoT asset tracking and fleet management
  • Remote environmental and smart sensors
  • Battery-powered cellular devices
  • Low-bandwidth telemetry and monitoring

Resources

$58.90

Original: $196.35

-70%
Digi XBee® 3 Low-Power LTE-M/NB-IoT, GNSS, no SIM—

$196.35

$58.90
