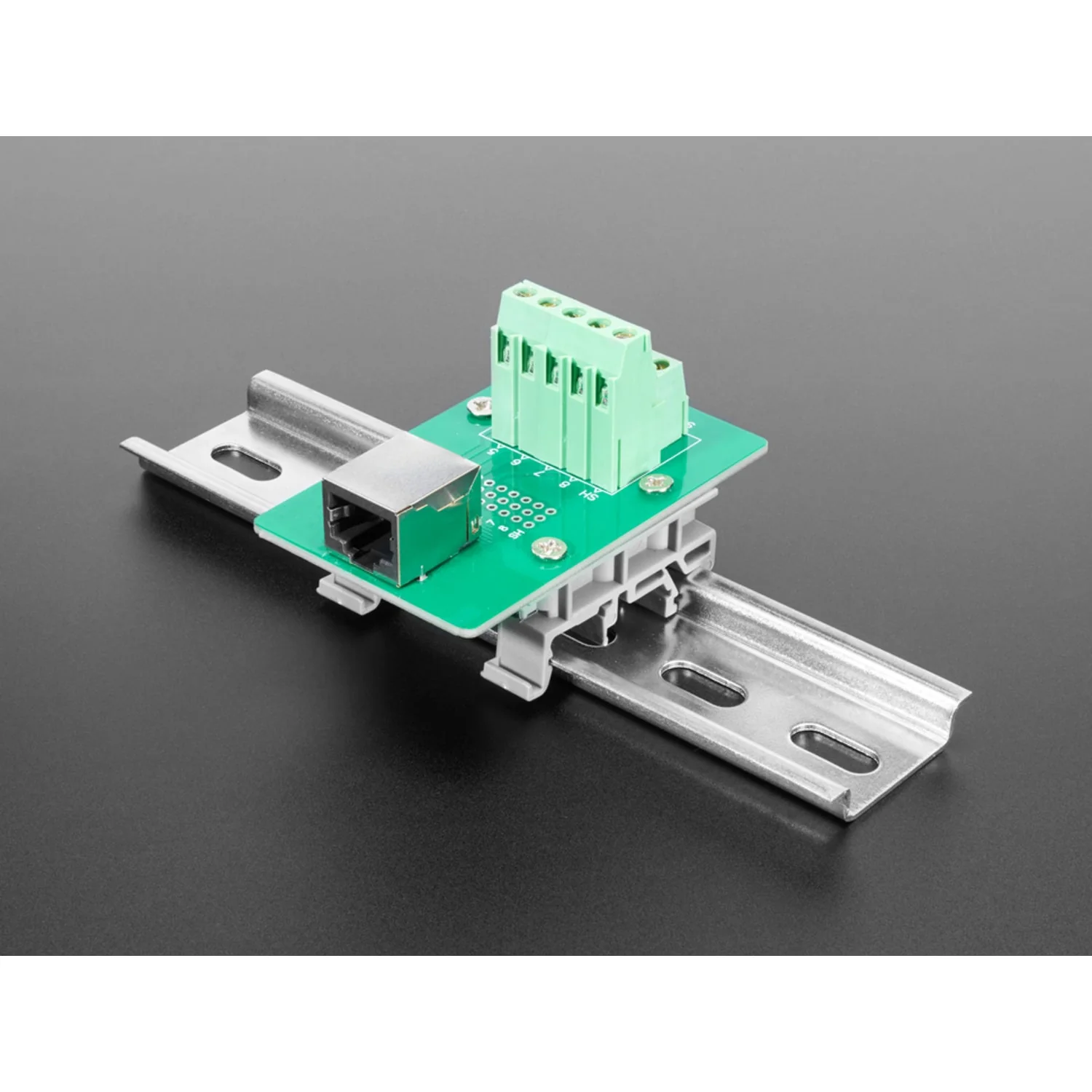

DIN Rail RJ-45 To Terminal Block Adapter - Right Angle Jack

A practical DIN rail-mountable adapter that breaks out all 8 wires from an RJ-45 (Ethernet) cable into individual screw terminal blocks. It's ideal for simplifying wiring in enclosures and panel builds — connect a single RJ-45 cable and distribute power or data to sensors, displays, microcontrollers, and other devices without any soldering.

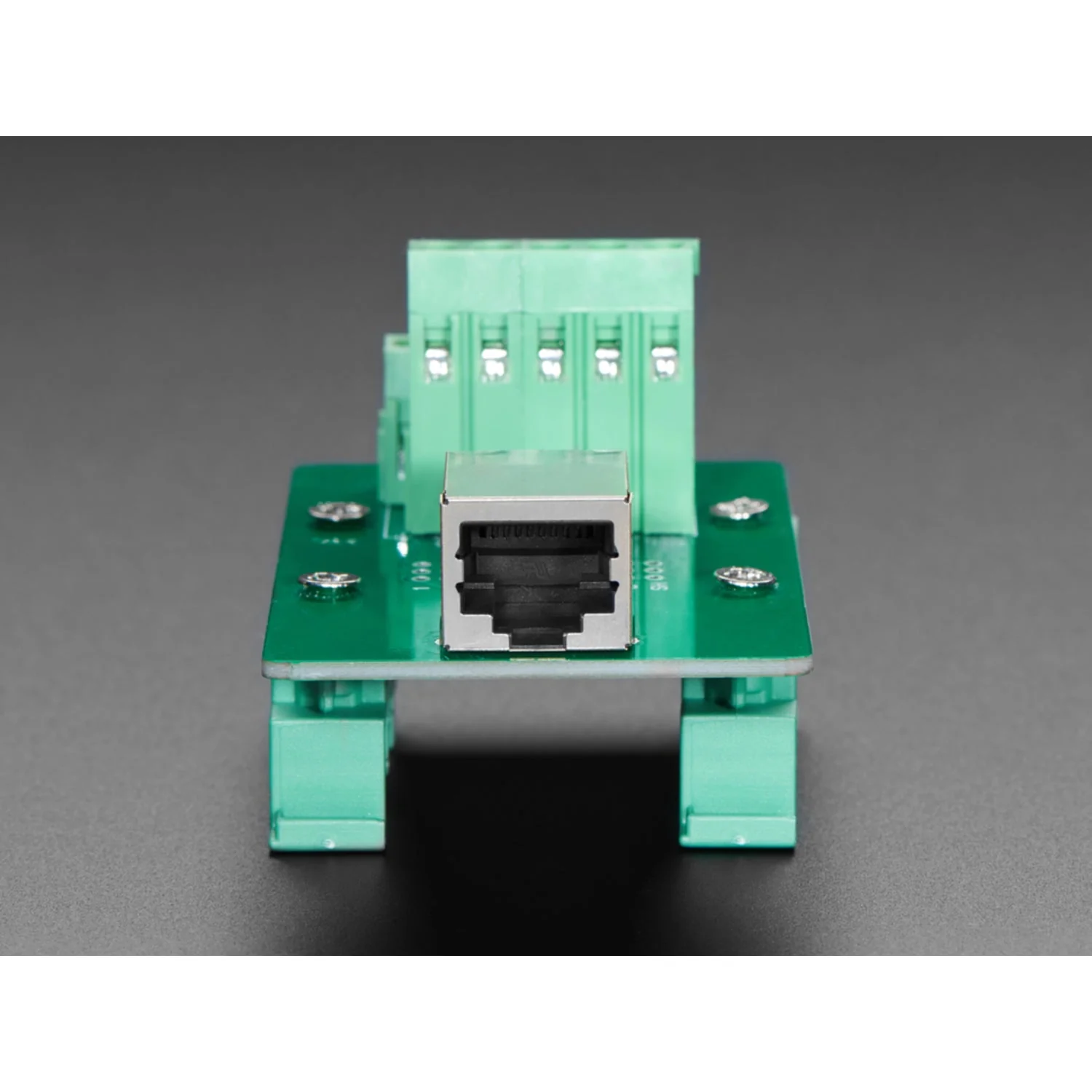

This variant features a right-angle RJ-45 jack, keeping the cable profile low and parallel to the DIN rail. No soldering required — just loosen the terminal screws, insert stranded or solid-core wire, and tighten.

Note: Not recommended for Ethernet network traffic. The twisted pairs are untwisted on the PCB, which is fine for low-speed power and data distribution but not suitable for long-term Ethernet use.

Key Features

  • DIN Rail Mount – Clips directly to standard DIN rail for clean panel installation

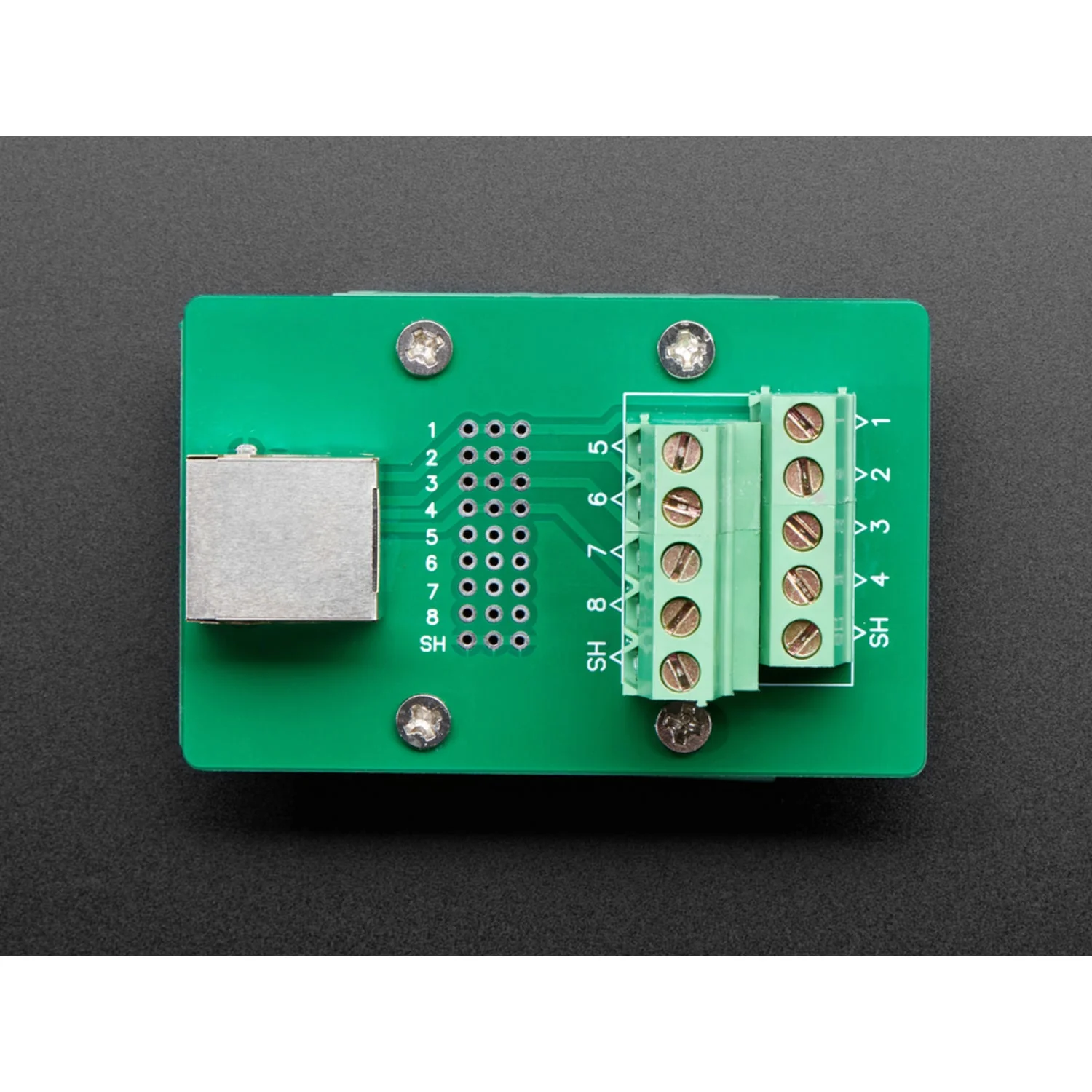

  • 8-Way Breakout – All 8 RJ-45 conductors broken out to individual terminal blocks

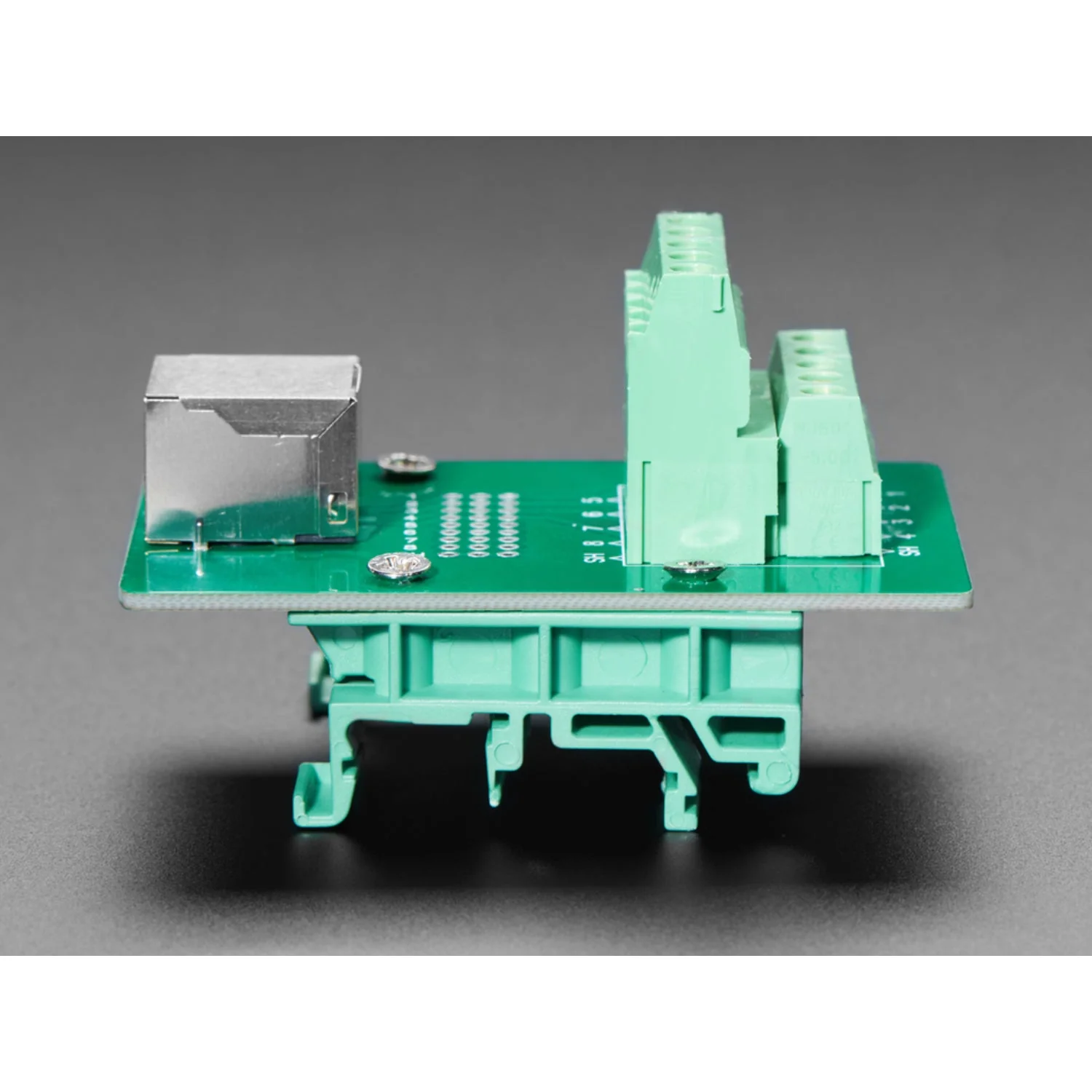

  • Right-Angle Jack – Cable exits parallel to the rail, saving panel depth

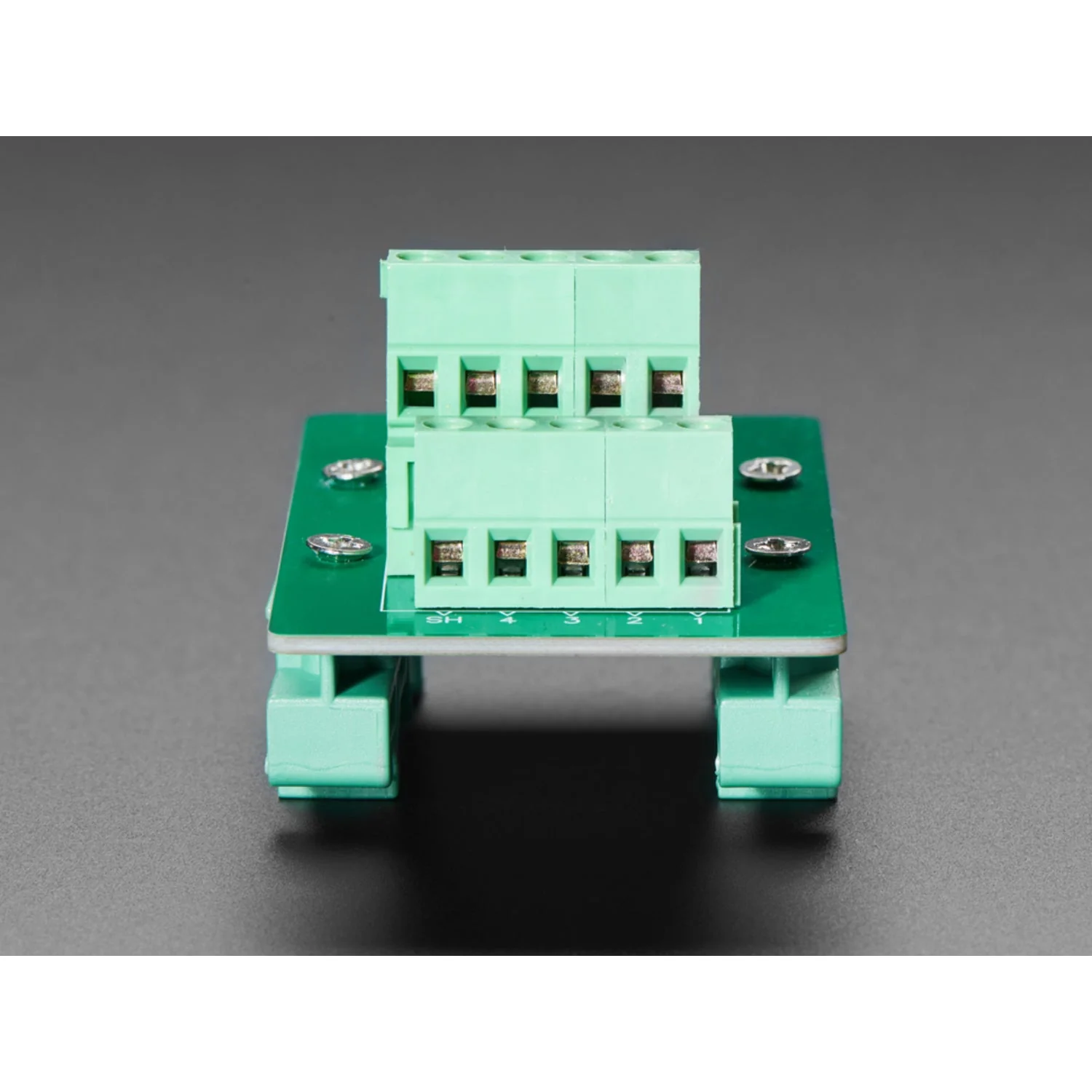

  • No Soldering – Screw terminal blocks accept stranded or solid-core wire
  • Versatile Use – Power and signal distribution to sensors, microcontrollers, displays, and more

Ideal For

  • Panel builders using DIN rail enclosures
  • Makers running multi-conductor cable using RJ-45 connectors
  • Distributing power and low-speed data in control cabinet builds
