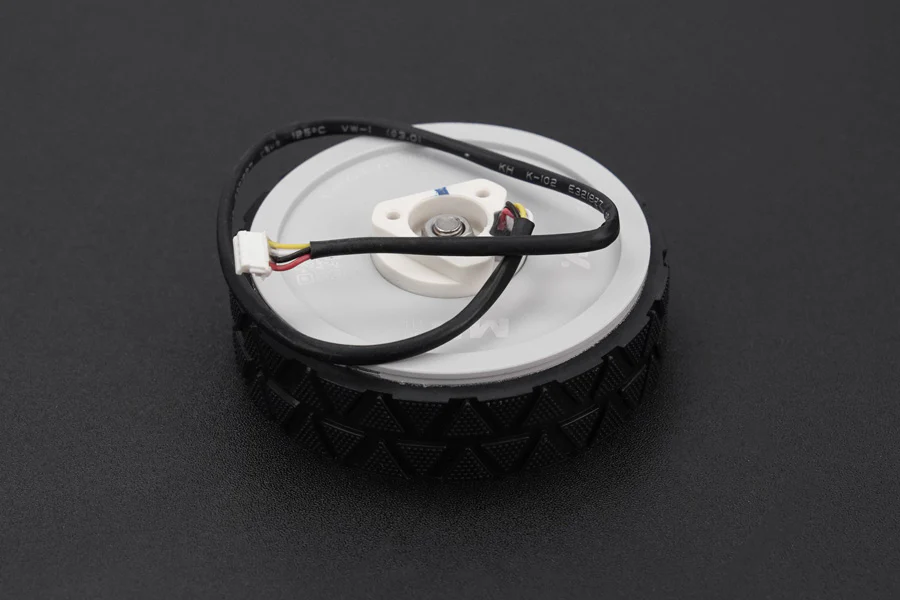

A compact direct-drive servo motor integrating a brushless outer-rotor motor, encoder, and servo driver into a single unit. By eliminating the traditional gearbox/reducer, it delivers smooth torque, low noise, and long life in a smaller package.

The built-in driver uses a Field-Oriented Control (FOC) algorithm with a high-precision sensor for accurate speed, position, and current control. Communication over UART provides real-time motor data including position, speed, current, and fault codes.

Key Features

• Integrated Design – Motor, encoder, and driver in one compact unit
• Direct Drive – No reducer/gearbox, fast response with no mechanical delay
• FOC Control – Field-oriented control for precise operation
• Low Noise – 47.2 dB idle, 54.5 dB under load
• UART Communication – Read position, speed, current, and fault codes
• Hall Position Detection – Built-in sensor for accurate feedback
• Electric Braking – Active braking support
• Protection – Over-current, over-temperature, and stall protection

Specifications

• Working Voltage – 11–22 V DC
• No-Load Speed – 210 ±15 RPM
• Rated Torque – 0.25 Nm
• Stall Torque – 0.85 Nm
• Interface – UART

Ideal For

• Robot joints and articulated mechanisms
• Self-balancing robot drive wheels
• Small AGV (Automated Guided Vehicle) drive wheels
• Educational robotics platforms

Resources

• Product Wiki
