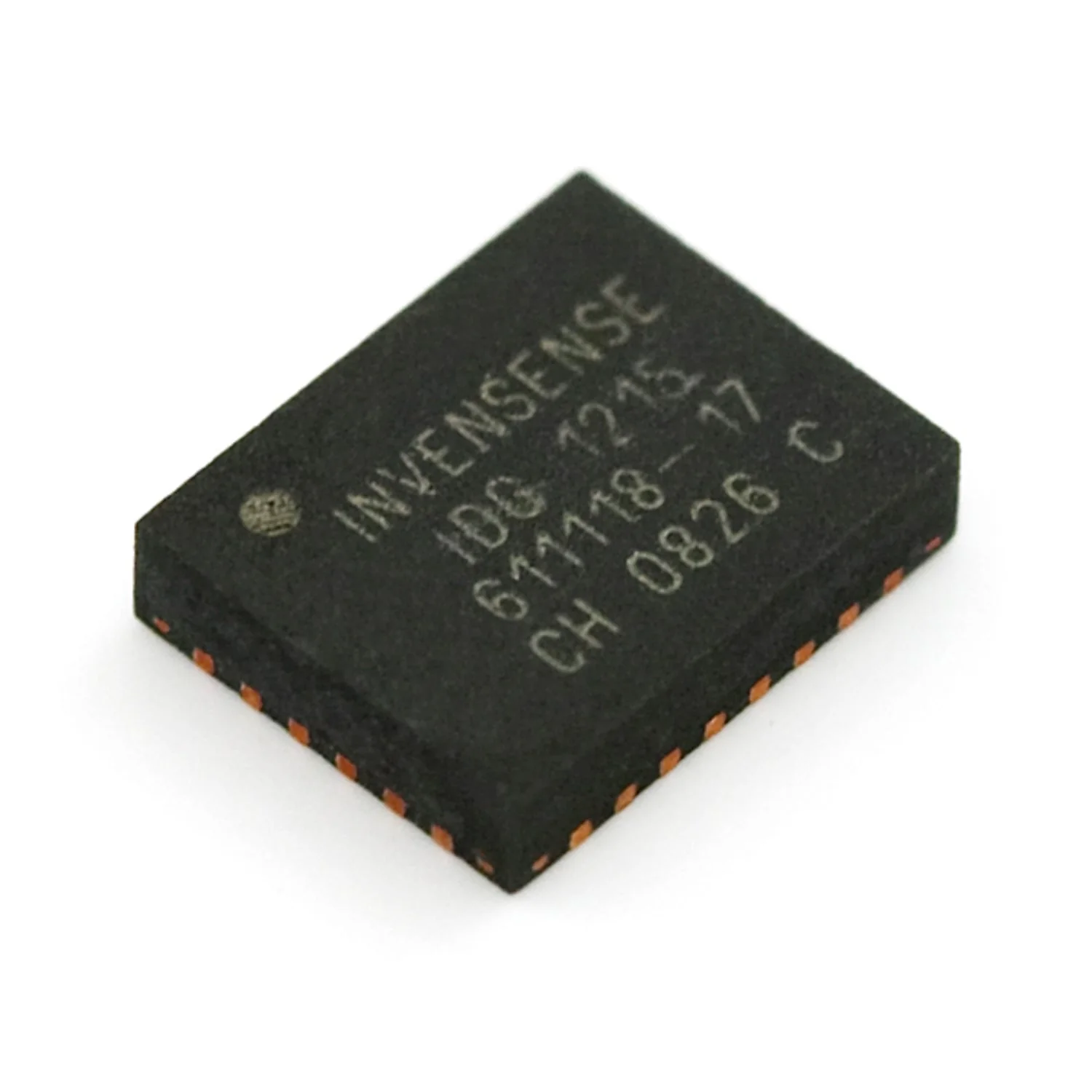

The IDG-1215 is an integrated dual-axis angular rate sensor (gyroscope) from InvenSense. It uses a vibrating dual-mass bulk silicon design to sense rotation about the X and Y axes, providing high cross-axis isolation and vibration rejection in a compact package.

All required electronics are integrated on-chip, including amplifiers, low-pass filters, and EEPROM for factory calibration. The sensor is factory trimmed, eliminating the need for end-user calibration — making it ready for use straight out of the package.

Key Features

• Dual-Axis Gyroscope – X and Y axis rotation sensing on a single chip
• ±67°/s Full-Scale Range – With 15 mV/°/s sensitivity
• 3V Single Supply – Low-voltage operation
• Integrated Filters – Built-in amplifiers and low-pass filters
• Auto-Zero Function – Automatic offset correction
• On-Chip Temperature Sensor – For temperature compensation
• Factory Calibrated – No external calibration required
• 10,000 g Shock Tolerant – Robust design for demanding applications
• Hermetically Sealed – Resistant to temperature and humidity

Specifications

• Axes – 2 (X and Y, in-plane sensing)
• Full-Scale Range – ±67°/s
• Sensitivity – 15 mV/°/s
• Supply Voltage – 3V

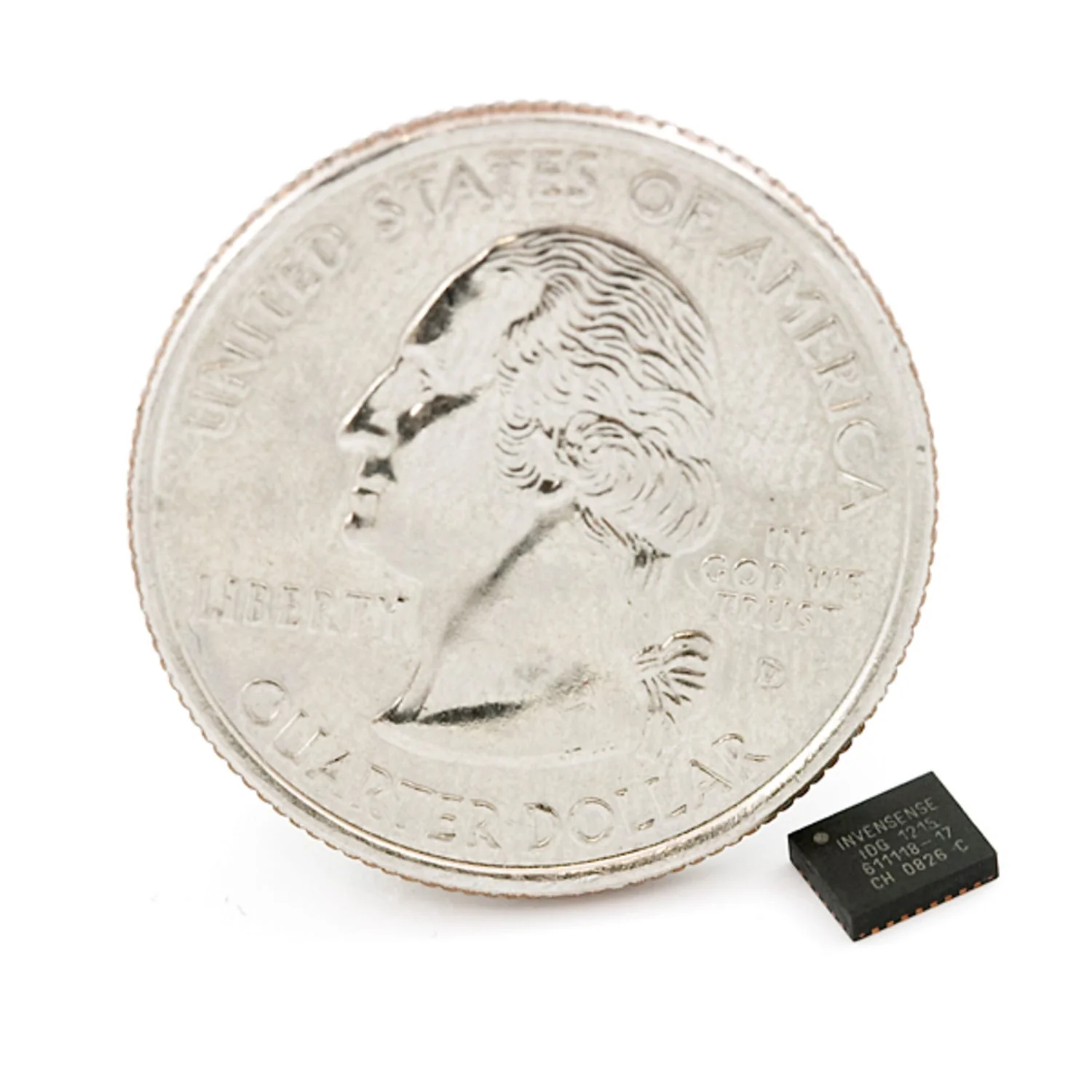

• Dimensions – 4 × 5 × 1.2 mm
• Compliance – Lead-free, Green Compliant

Ideal For

• Motion sensing and orientation tracking
• Robotics and stabilisation systems
• Gaming controllers and input devices
• Navigation and inertial measurement

Package Contents

• 1× IDG-1215 Dual-Axis Gyroscope

Resources

• IDG-1215 datasheet (PDF)
• Wiring example
