E-Textiles ADXL335 three axis acceleration sensor

Product image 1
1 / 2

E-Textiles ADXL335 three axis acceleration sensor

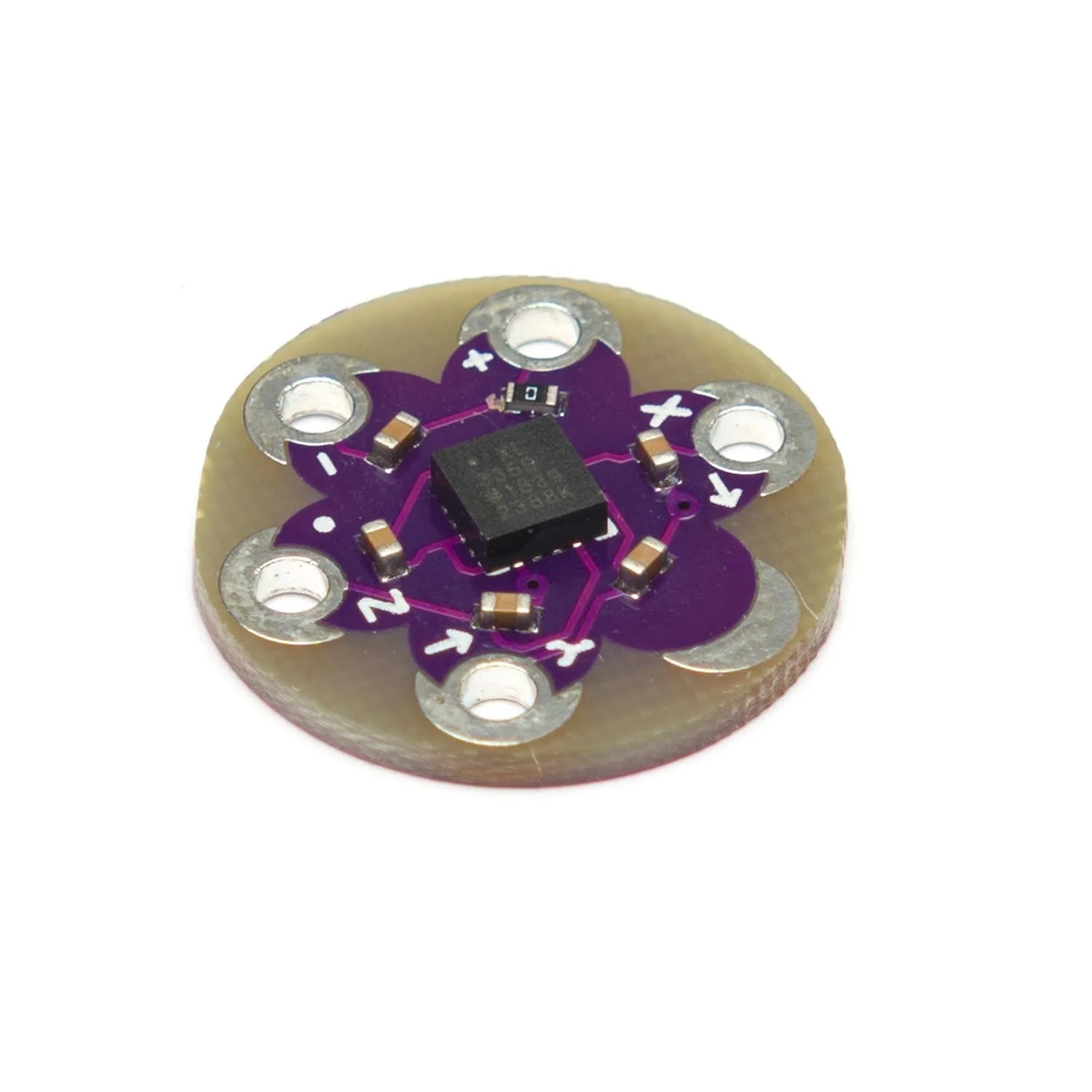

This is a three axis accelerometer designed for E-Textiles. Based on the ADXL335 MEMS accelerometer from Analog Devices, this Accelerometer can detect joint movement as well as inclination and vibration.

The ADXL335 outputs a 0V to 3V analog signal on each of the X, Y, and Z axis. You will need to convert this analog voltage to a gravity amount and use trigonometry to calculate a true ‘angle’. If you are not looking for tilt, it is very easy to use this sensor for basic motion sensing.

They’re even washable!  These PCBs are red in colour.


Specification

Power supply: 3.3V
Operating temp. range: -40~85°C
Sensitivity: 300mv/g
Sensitivity precision(%): +/-10
Output type: analog output of serial port (SPI, I2C)
Typical bandwidth: 1.6KHZ
Operating voltage: Single supply 1.8V~3.6V

Interface:

'+' should be connected to DC1.8-3.6V
'-' should be connected to GND
'X' is X axis analog data output
'Y' is Y axis analog data output
'Z' is Z axis analog data output

Connection method:

Please connect analog output port X, Y and Z to ard uino analog output A0, A1 and A2 respectively.
