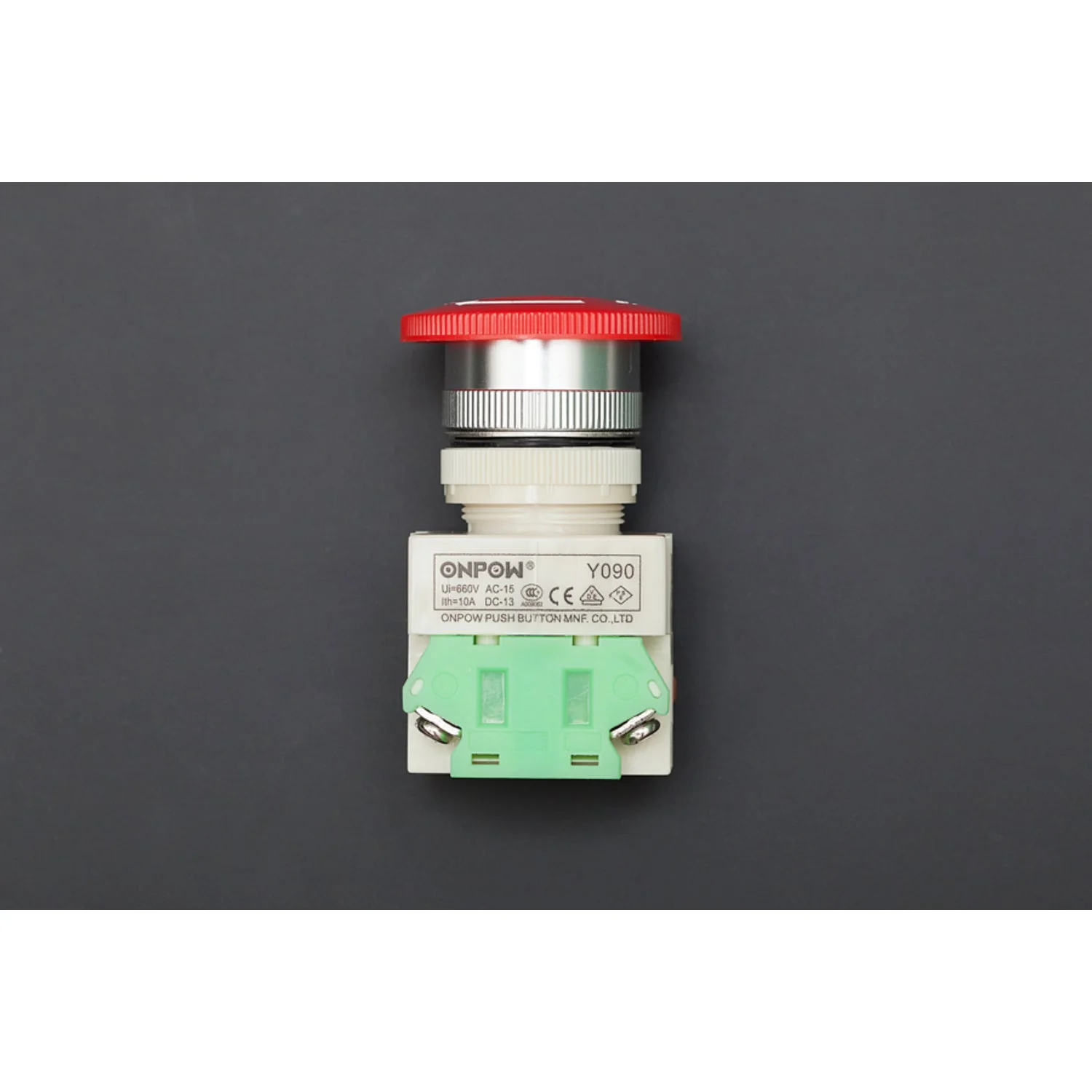

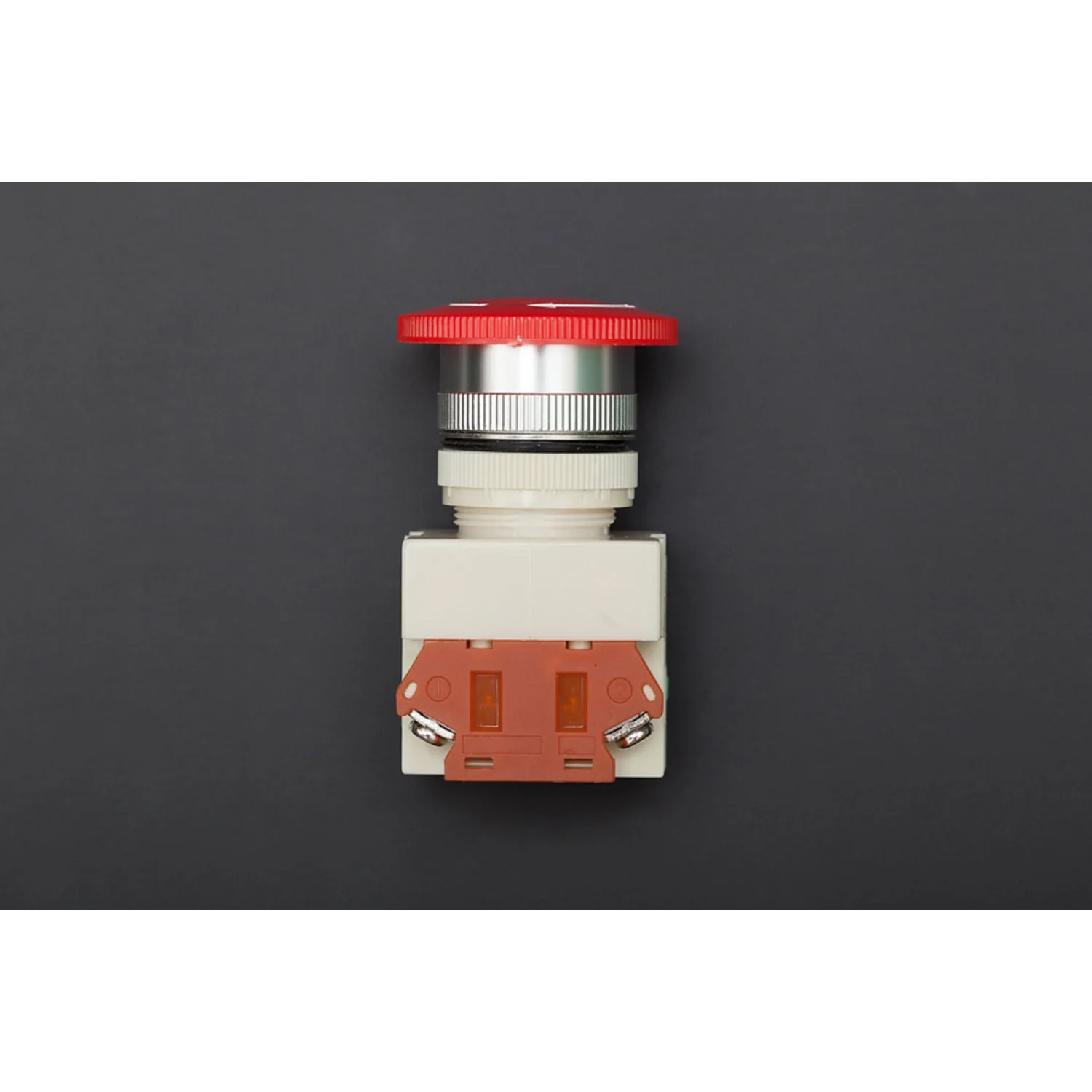

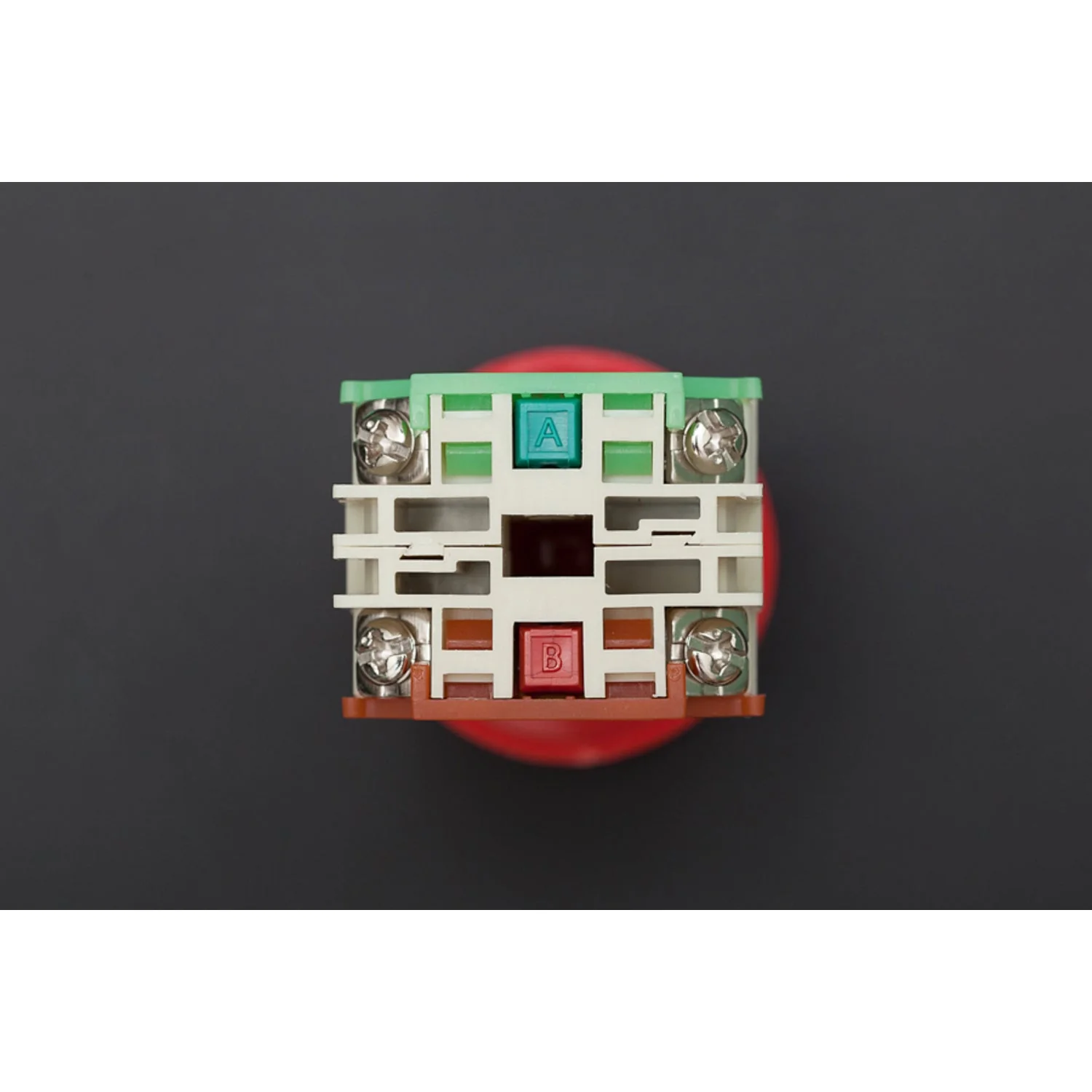

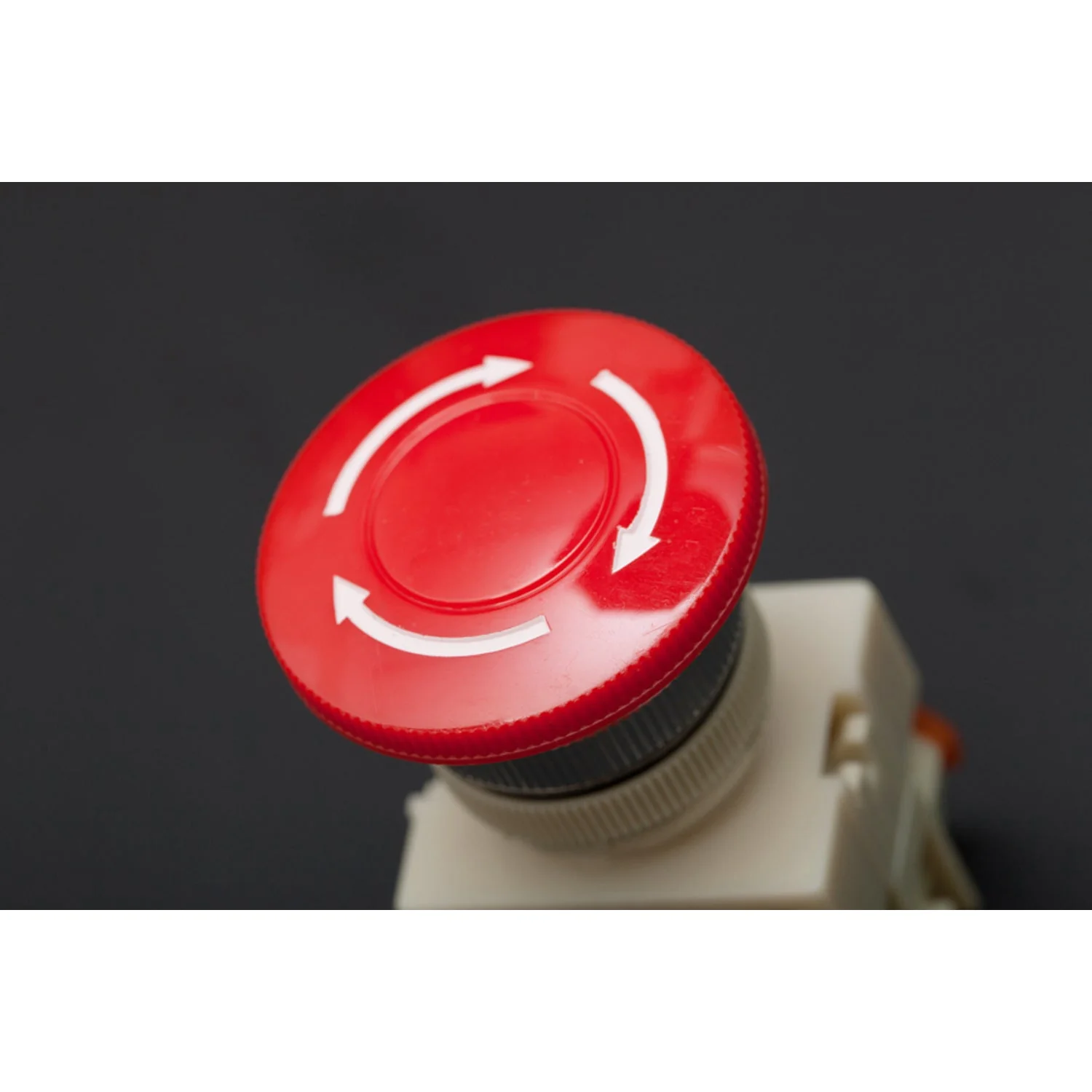

A 40 mm red mushroom-head emergency stop push button switch. This momentary-action button fits a standard 22 mm mounting hole and is rated for up to 660V insulation voltage and 10 A thermal current — suitable for both project builds and industrial-style control panels.

Specifications

• Model – Y090
• Button Type – 40 mm mushroom-head, momentary action
• Button Colour – Red
• Rated Insulation Voltage – 660V
• Thermal Current Rating – 10 A
• Mounting Hole – 22 mm
• Material – Plastic and metal
• Operating Temperature – -25°C to +55°C
• Relative Humidity – 45–85% RH
• Dimensions – 40 × 40 × 68 mm

Ideal For

• Emergency stop controls on machinery and robotics
• CNC and 3D printer safety shutoffs
• Control panel "big red button" projects

Package Contents

• 1× Emergency stop mushroom push button switch
