The ESP32-C6 MINI is Espressif's compact WiFi 6 module integrating 2.4GHz Wi-Fi 6 (802.11ax), Bluetooth 5.3 (LE), and IEEE 802.15.4 (Thread/Zigbee) into a single package with an on-board PCB antenna. Built around a high-performance 32-bit RISC-V processor clocked up to 160MHz, plus a low-power RISC-V core at up to 20MHz.

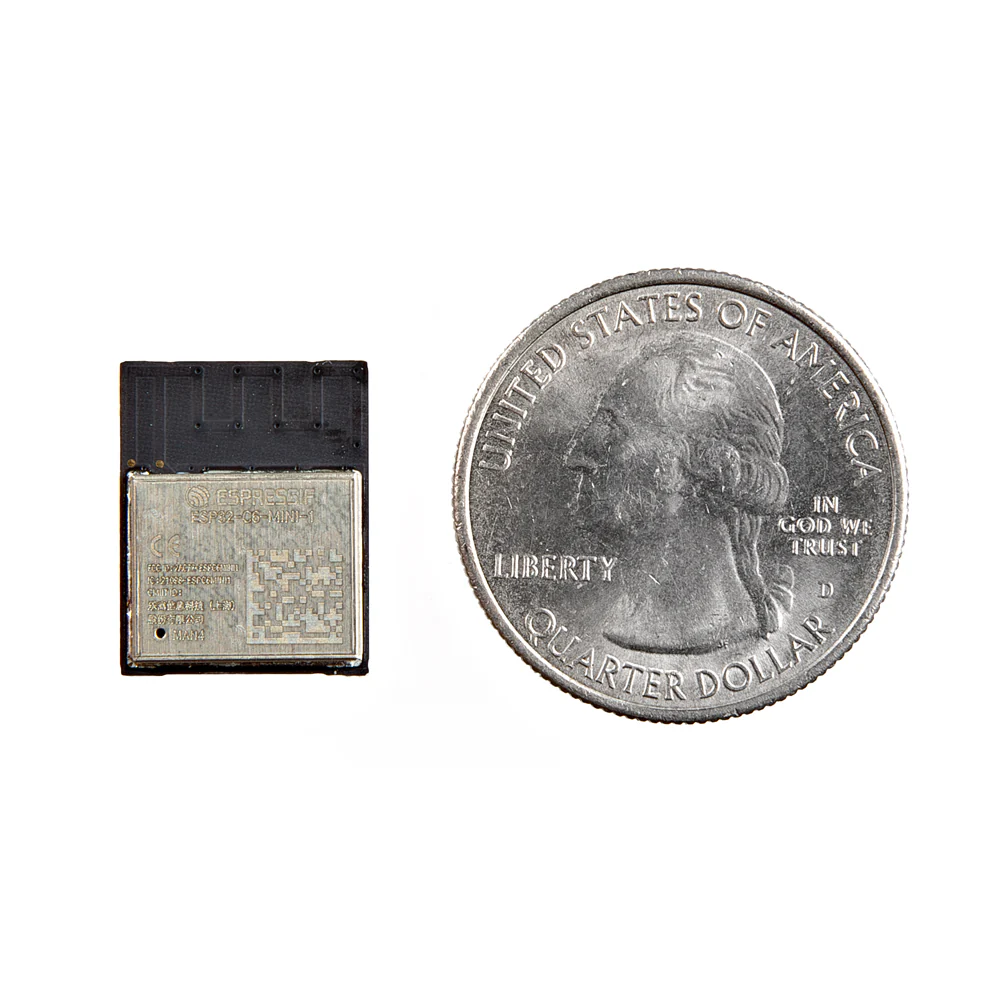

With support for Matter, Thread 1.3, and Zigbee 3.0 via the 802.15.4 radio, this module is ideal for building interoperable smart-home devices. The MINI form factor is a smaller variation of the standard WROOM module with one fewer GPIO.

Key Features

• WiFi 6 (802.11ax) – 2.4GHz with OFDMA and MU-MIMO, backward compatible with 802.11b/g/n
• Bluetooth 5.3 LE – Mesh support, 20dBm high-power mode, speeds up to 2Mbps
• IEEE 802.15.4 – Thread 1.3 and Zigbee 3.0 support
• Dual RISC-V Cores – HP core up to 160MHz, LP core up to 20MHz
• Rich Peripherals – SPI, UART, I²C, I²S, RMT, PWM, SDIO, MCPWM, ADC, temperature sensor
• PCB Antenna – On-board antenna, no external antenna required
• Certified – FCC, CE-RED, SRRC (RF), RoHS/REACH compliant

Specifications

• MCU: ESP32-C6, 32-bit RISC-V single-core, up to 160MHz
• ROM: 320KB
• HP SRAM: 512KB
• LP SRAM: 16KB
• Flash: 4MB SPI (external)
• WiFi: 802.11ax/b/g/n, 2412–2484MHz
• Bluetooth: 5.3 LE, mesh, 125Kbps–2Mbps
• 802.15.4: OQPSK PHY, 250Kbps, Thread 1.3, Zigbee 3.0
• Crystal: 40MHz oscillator

Ideal For

• Matter-compliant smart home devices
• Thread and Zigbee endpoint devices
• IoT sensor nodes and gateways
• Low-power wireless applications

Package Contents

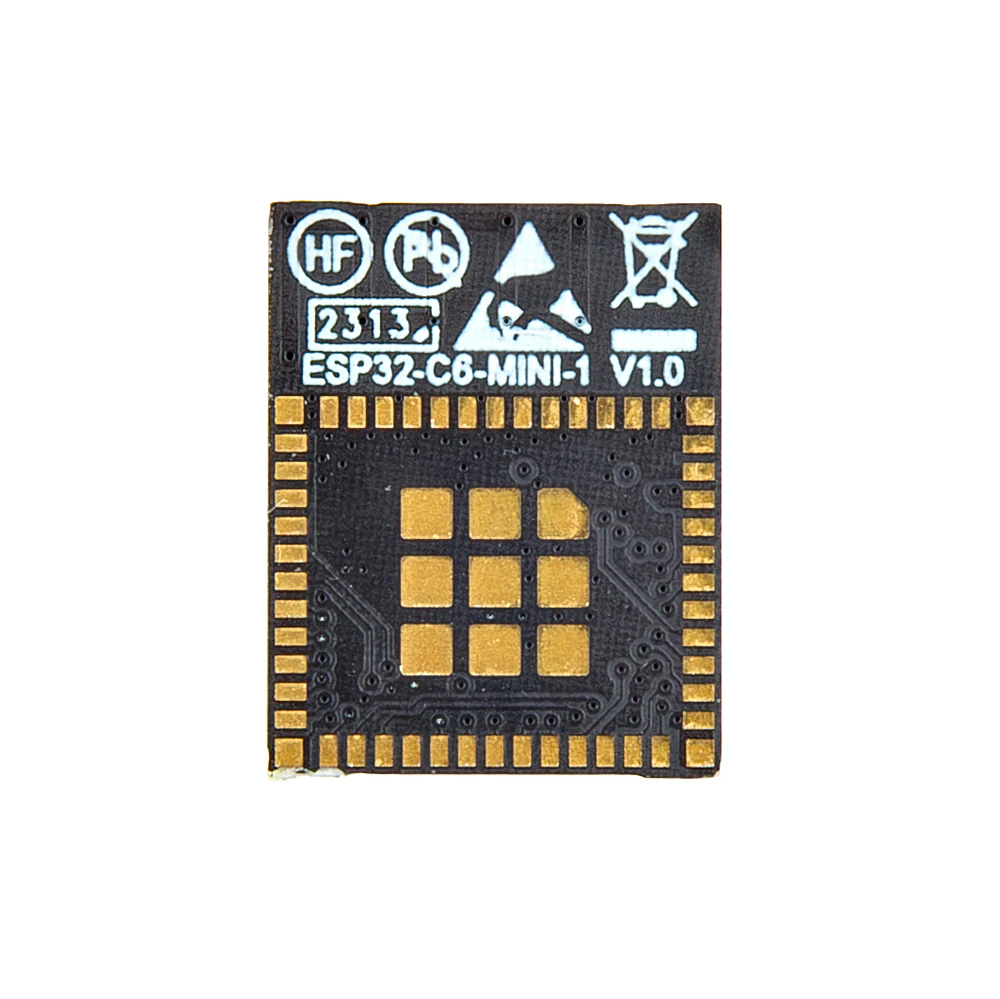

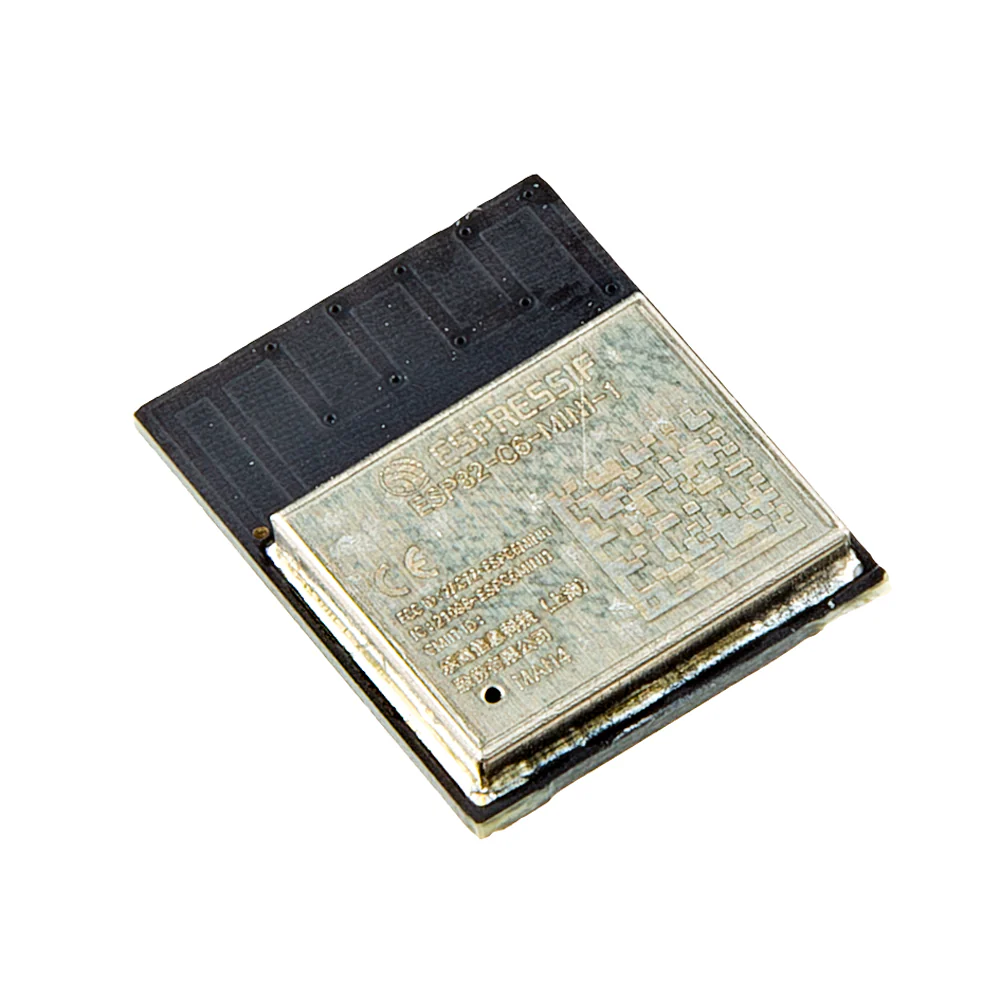

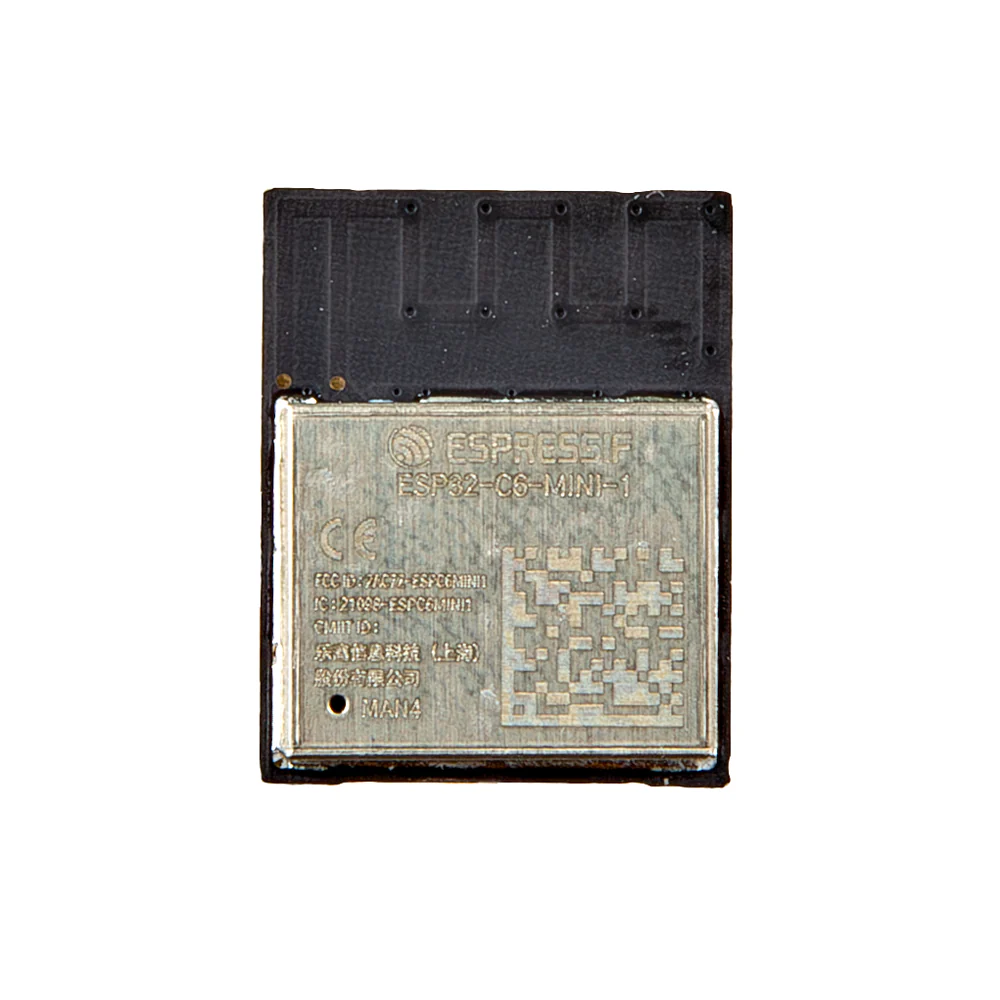

• 1× ESP32-C6 MINI Module (4MB, PCB Antenna)

Resources

• Datasheet (PDF)
