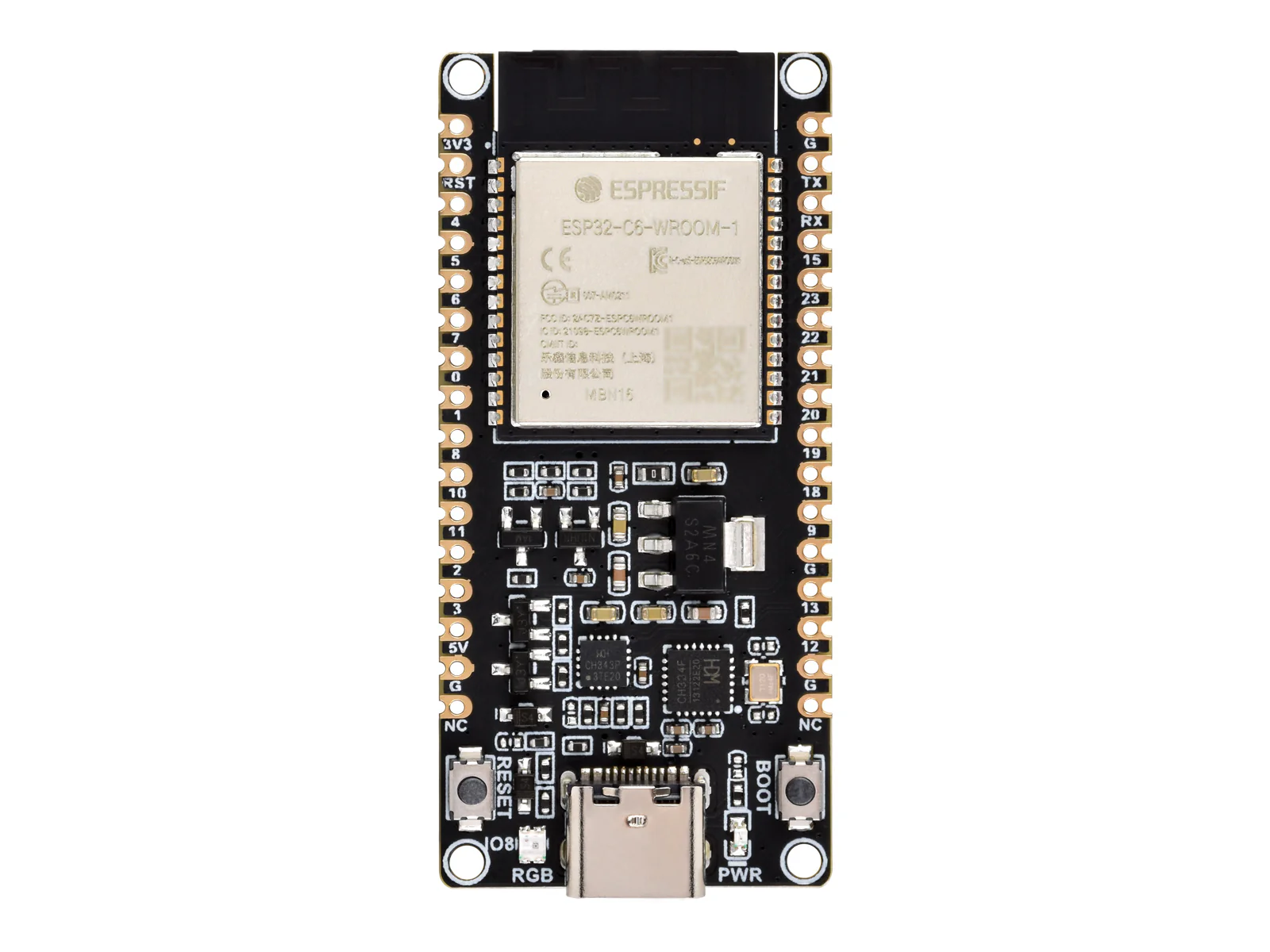

A development board based on the ESP32-C6-WROOM-1-NX module, featuring a 32-bit RISC-V single-core processor running at up to 160 MHz. Supports Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread) — making it a versatile platform for IoT, smart home, and industrial automation projects.

The board integrates CH343 and CH334 chips for USB and UART connectivity through a single USB-C port. Pin-compatible with the ESP32-C6-DevKitC-1, and supports the ESP-IDF development environment. The castellated module design also allows direct soldering to carrier boards.

Key Features

• ESP32-C6 RISC-V Processor – 32-bit single-core, up to 160 MHz
• Wi-Fi 6 – Next-generation wireless connectivity
• Bluetooth 5 – Low-energy wireless communication
• IEEE 802.15.4 – Zigbee 3.0 and Thread support
• USB-C with USB + UART – CH343 and CH334 bridge chips onboard
• Rich Peripherals – SPI, UART, I²C, I²S, LED PWM, SDIO, and more
• Castellated Module – Solder directly to carrier boards
• ESP-IDF Compatible – Comprehensive development framework support

Specifications

• Module: ESP32-C6-WROOM-1-NX
• Processor: 32-bit RISC-V, up to 160 MHz
• Flash: 8 MB or 16 MB (variant dependent)
• Wireless: Wi-Fi 6, Bluetooth 5, IEEE 802.15.4
• USB: USB-C (CH343 USB-to-UART + CH334 USB hub)
• Interfaces: SPI, UART, I²C, I²S, LED PWM, SDIO
• Pin Compatible: ESP32-C6-DevKitC-1
• Weight: 13 g

Ideal For

• IoT and smart home devices
• Zigbee and Thread mesh networking
• Industrial automation prototyping
• Wi-Fi 6 connected projects

Package Contents

• 1× ESP32-C6 Development Board
• 2× 40-Pin Male Pin Headers (or pre-soldered, variant dependent)

Resources

• Waveshare Wiki
