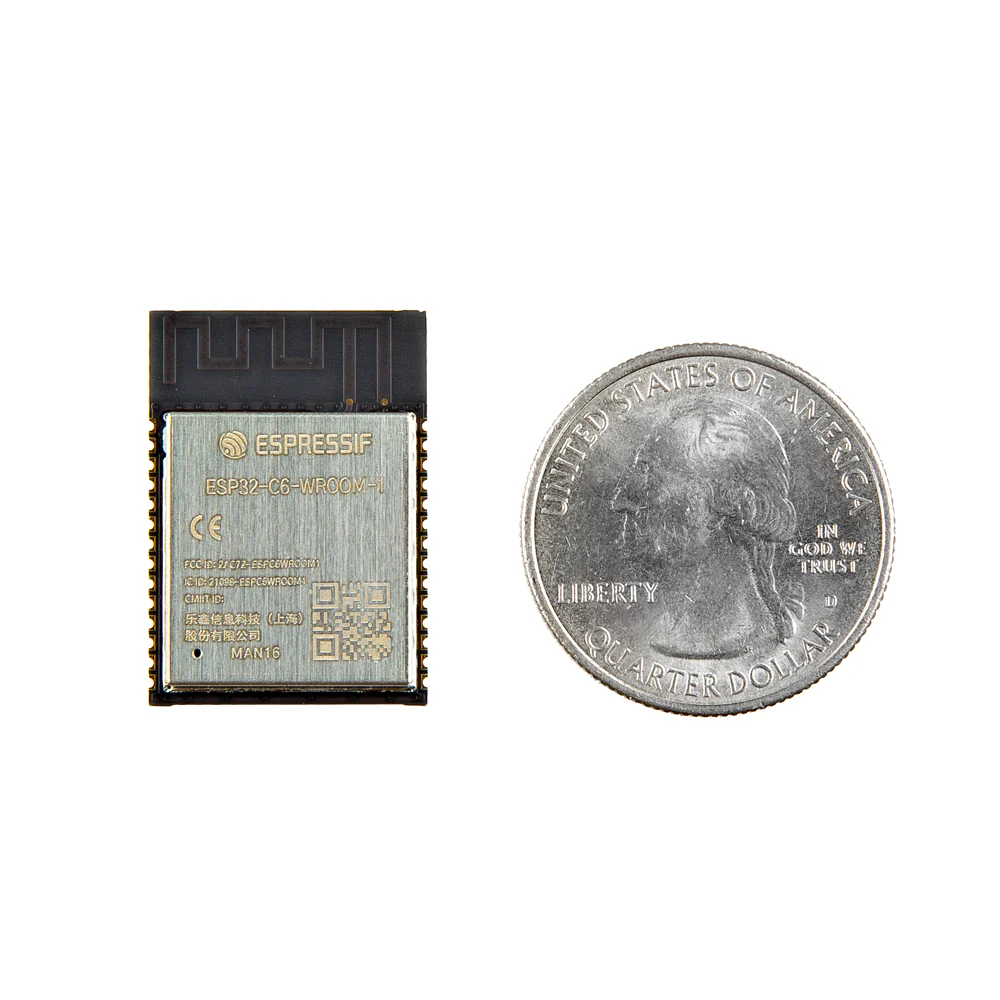

The ESP32-C6-WROOM-1 is Espressif's first Wi-Fi 6 module, integrating 2.4 GHz Wi-Fi 6 (802.11ax), Bluetooth 5.3 (LE), and IEEE 802.15.4 (Thread/Zigbee) on a single chip. Built around a high-performance 32-bit RISC-V core clocked up to 160 MHz plus a low-power RISC-V core at 20 MHz, it offers strong processing capability with excellent power efficiency.

This variant features 16 MB of flash memory and an on-board PCB antenna. With support for Thread 1.3, Zigbee 3.0, and Matter, it's well-suited for smart home devices that need to interoperate across ecosystems. The Wi-Fi 6 radio supports OFDMA and MU-MIMO for reliable performance in congested wireless environments.

Key Features

• Wi-Fi 6 (802.11ax) – 2.4 GHz, backwards compatible with 802.11b/g/n, OFDMA and MU-MIMO support
• Bluetooth 5.3 LE – Mesh, high power mode (20 dBm), data rates up to 2 Mbps
• IEEE 802.15.4 – Thread 1.3 and Zigbee 3.0 support for Matter-compliant devices
• Dual RISC-V Cores – HP core up to 160 MHz, LP core up to 20 MHz
• 16 MB Flash – Ample storage for firmware and data
• PCB Antenna – On-board antenna, no external antenna required
• Rich Peripherals – SPI, UART, I2C, I2S, RMT, MCPWM, SDIO, ADC, temperature sensor, USB Serial/JTAG

Specifications

• MCU – ESP32-C6, 32-bit RISC-V single core up to 160 MHz
• ROM – 320 KB
• HP SRAM – 512 KB
• LP SRAM – 16 KB
• Flash – 16 MB (SPI)
• Wi-Fi – 802.11ax (2412–2484 MHz), 1T1R
• Bluetooth – 5.3 LE, mesh, 125 Kbps / 500 Kbps / 1 Mbps / 2 Mbps
• 802.15.4 – OQPSK PHY, 250 Kbps, Thread 1.3, Zigbee 3.0
• Crystal – 40 MHz oscillator
• Certifications – FCC, CE-RED, SRRC, RoHS, REACH

Ideal For

• Matter-compliant smart home devices
• Thread and Zigbee mesh networking
• Wi-Fi 6 IoT applications
• Low-power wireless sensor nodes

Package Contents

• 1× ESP32-C6-WROOM-1 Module (16 MB, PCB antenna)

Resources

• Datasheet (PDF)
