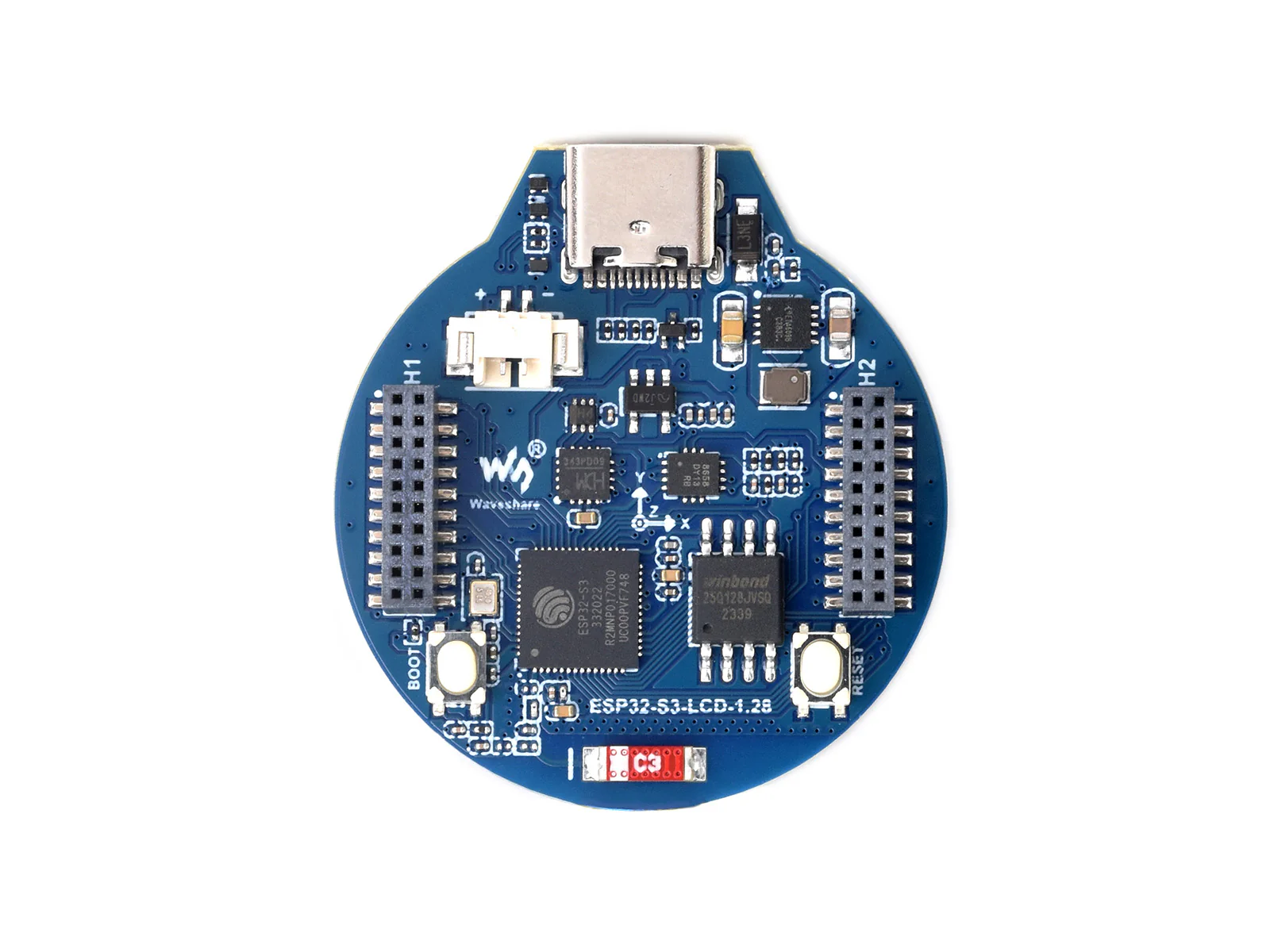

ESP32-S3 Dual-Core Dev Board with 1.28" Round IPS Display
Unlock the full potential of IoT development with the cutting-edge ESP32-S3 Development Board, your all-in-one solution for creating interactive and smart connected devices. This powerhouse board is designed by Waveshare to deliver exceptional performance with its Xtensa® 32-bit LX7 dual-core processor, while still maintaining an impressively low power footprint.
Product Highlights:
- Advanced Processing Capabilities: With a main frequency of up to 240MHz, the ESP32-S3-LCD-1.28 board can handle complex tasks with ease.
- Wireless Connectivity: Stay connected with 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (BLE) support, featuring an onboard antenna for effortless wireless communication.
- Generous Memory and Storage: Equipped with 512KB of SRAM and 384KB ROM, the board also includes 2MB PSRAM and 16MB of external flash memory for all your storage needs.
- Type-C Connector: Modern and user-friendly, the USB Type-C connector ensures easy connection and quick data transfer.
- High-Resolution Display: Boasting a 1.28-inch round IPS LCD panel with a 240x240 resolution in 65K color, this screen will bring clarity and color to your projects.
- Motion Tracking: With a QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope), your applications can detect and respond to motion gestures.
- Battery Management: An onboard high-efficiency lithium battery recharge manager makes it simple to keep your projects mobile and manageable.
- Flexible Development: With 30 multi-function GPIO pins, you have the flexibility to adapt the board to a multitude of uses.
- Ready for Coding: The board comes with a pre-installed USB to UART chip for programming and diagnostics, making it ready for action right out of the box.
What's Included:
- ESP32-S3R2: The Wi-Fi and Bluetooth-enabled SoC with the high operating frequency and onboard PSRAM.
- W25Q128JVSIQ: A robust 16MB NOR-Flash for your external memory requirements.
- QMI8658: A precise 6-axis IMU that includes both a 3-axis gyroscope and a 3-axis accelerometer.
- ME6217C33M5G: A stable LDO providing 800mA output for consistent power delivery.
- CH343P: The USB to UART chip facilitating program uploads and serial communication.
- ETA6096: The efficient lithium battery recharge manager for power integrity.
Measuring at only 0.009 kg in weight, this light and compact development board is perfect for rapid prototyping and IoT innovation.
Visit the Waveshare Wiki at www.waveshare.com/wiki/ESP32-S3-LCD-1.28 for detailed documentation, resources, and support to kickstart your development.
Quick Overview:
- ESP32-S3-LCD-1.28 Development Board x1
Dive into your next IoT development venture with the ESP32-S3 Development Board—the ultimate tool for modern makers and tech enthusiasts looking to integrate powerful processing, vibrant display, and versatile connectivity into their projects.
