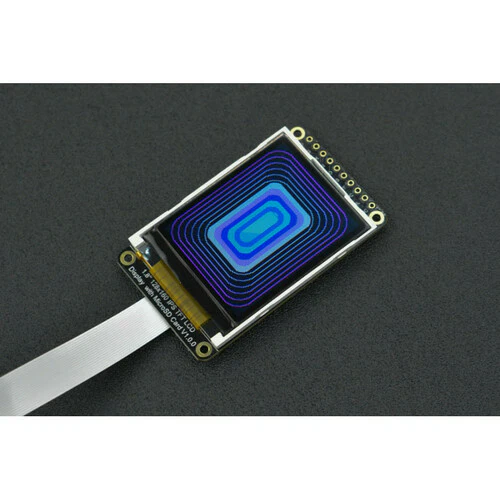

A 1.8-inch IPS TFT LCD display module with 128×160 resolution and an integrated microSD card slot for reading full-colour bitmaps. Driven by the ST7735S chip over SPI (4-wire), the display offers a 120° viewing angle and low power consumption, making it suitable for sensor dashboards, status monitors, and compact GUI projects.

The module supports two wiring methods: standard pin header connection and DFRobot's GDI (General Display Interface) via FPC cable for plug-and-play use with FireBeetle controllers.

Key Features

• 1.8-Inch IPS Display – 128×160 resolution with 120° viewing angle
• ST7735S Driver – SPI (4-wire) communication
• Integrated MicroSD Slot – Load and display full-colour bitmap images
• Dual Interface Options – Pin header or GDI FPC cable connection
• Wide Voltage Range – 3.3–5 V operating voltage
• Low Power – 0.11 W full-screen power consumption

Specifications

• Resolution – 128 × 160 pixels
• Driver Chip – ST7735S
• Interface – SPI (4-wire), GDI
• Operating Voltage – 3.3–5 V
• Viewing Angle – 120°
• Full-Screen Power – 0.11 W
• Operating Temperature – −10 °C to +60 °C
• Display Area – 26 × 35 mm
• Module Dimensions – 34 × 55 mm
• Mounting Hole Pitch – 29 mm / 50 mm
• Mounting Hole Size – 2 mm

Ideal For

• Sensor monitoring dashboards and alarms
• Temperature and environmental displays
• Compact GUI interfaces for embedded projects
• Bitmap image display from microSD card

Package Contents

• 1× Fermion 1.8-inch IPS TFT LCD display module
• 1× GDI display cable
• 1× 10-pin connector

Resources

• Product Wiki
• Schematic (PDF)
• ST7735S Chip Datasheet (PDF)
