The STS35 temperature sensor from Sensirion gives a fully calibrated, linearized, and supply-voltage-compensated digital output and has an outstanding accuracy of up to +/–0.1°C.

It provides an operating temperature range of -40~125°C and up to 1MHz I2C communication rate. Besides, the sensor can heat up itself to dehumidify the chip, which means it can function properly in a certain level of humidity.

Features

Factory calibrated, accurate digital output

High accuracy, ±0.1°C temperature error

Fast startup time, 0.5ms

High reliability, long-term stability

Applications

Grain bin temperature monitoring

Precise temperature controlling in Lab

Ambient temperature detection in greenhouse

Temperature measuring in the environment with changeable humidity

Specification

Operating Voltage: 2.15~5.5V DC

Heating Power Consumption: 3.6~33mW

Output Signal: I2C

Measuring Range: -40~125°C

Accuracy: ±0.1°C

Resolution: 0.01°C

Preheat: ≤1.5ms (Typical, 0.5ms)

Response Time: >2s

Operating Temperature: -40~125°C

Size: 20x17.5x2mm/0.79x0.69x0.08”

Mounting Hole Size: M2(2mm); Pitch 15mm

Documents

Shipping List

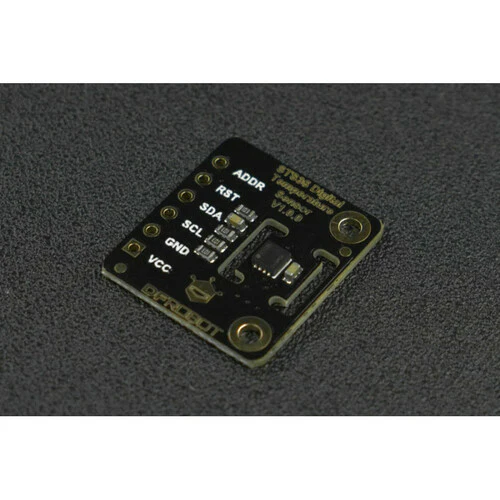

Fermion: STS35 High Accuracy Digital Temperature Sensor x1
