FireBeetle Covers-LoRa Radio 868MHz

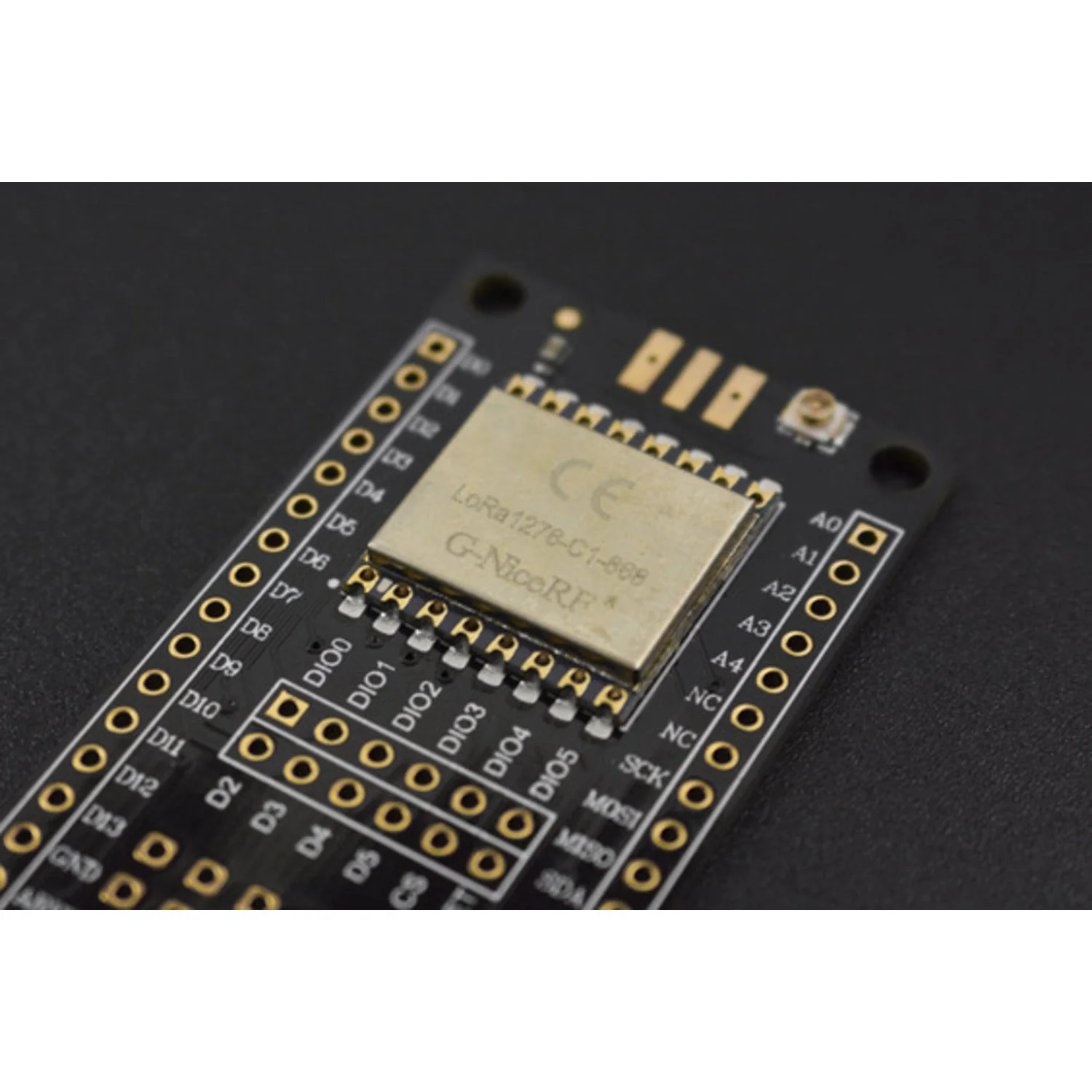

The FireBeetle LoRa Radio 868 MHz is a wireless transmission cover board for the DFRobot FireBeetle series, featuring the Semtech SX1276 LoRa transceiver with a built-in power amplifier. It supports LoRa long-range modulation as well as FSK, GFSK, and OOK modes, with a transmission range of up to 5 km. Arduino-compatible and designed for IoT applications.
Key Features
- SX1276 LoRa Transceiver – 868 MHz with built-in PA for extended range
- Up to 5 km Range – Long-range wireless communication
- Multiple Modulation Modes – LoRa, FSK, GFSK, and OOK
- Ultra-Low Sleep Current – ≤ 0.2 µA in sleep mode
- Up to 20 dBm Output – Configurable transmission power (−1 to +20 dBm)
- Receiving Sensitivity – −139 dBm in LoRa mode
- SPI Interface – 5 GPIO pins available (usable as interrupts)
- Built-In Antenna – With electrostatic protection
- FireBeetle Compatible – Stacks onto FireBeetle main boards
Specifications
- Operating Voltage – 3.3 V
- Frequency Range – 800–900 MHz (typical 868 MHz)
- Data Rate – FSK: 1.2–300 kbps; LoRa: 0.018–37.5 kbps
- Emission Current – ≤ 120 mA
- Receiving Current – ≤ 15 mA
- Sleep Current – ≤ 0.2 µA
- Maximum RSSI – 127 dB
- FIFO Buffer – 256 bytes
- CRC & Frequency Hopping – Supported
- Operating Temperature – −20 °C to +70 °C
- Dimensions – 58 × 29 mm
- Mounting Holes – 3.1 mm inner diameter
Ideal For
- IoT sensor networks and remote monitoring
- Home automation and environmental sensing
- Wearable device data transmission
- FireBeetle-based low-power projects
Package Contents
- 1× FireBeetle LoRa Radio Cover (868 MHz)
Resources
