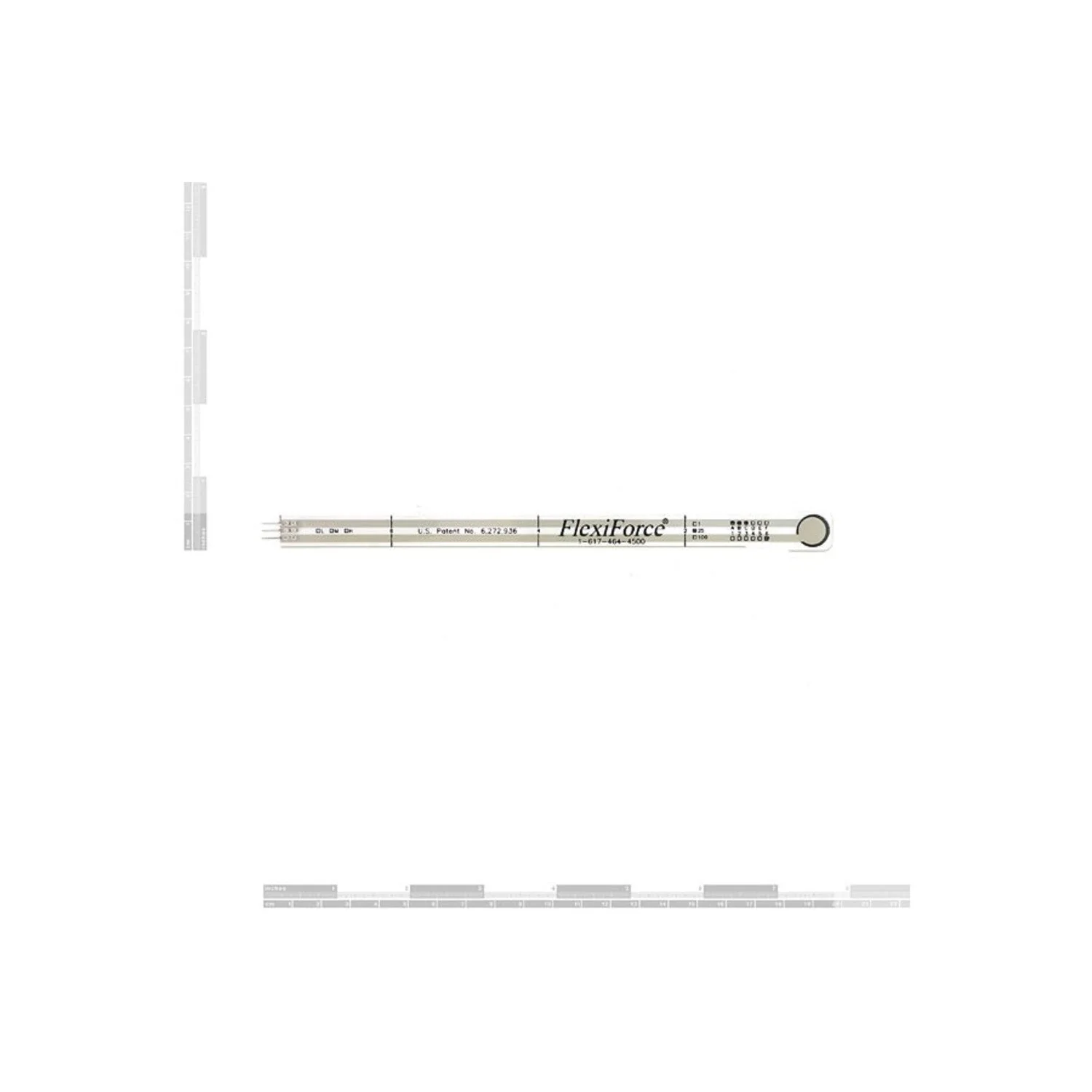

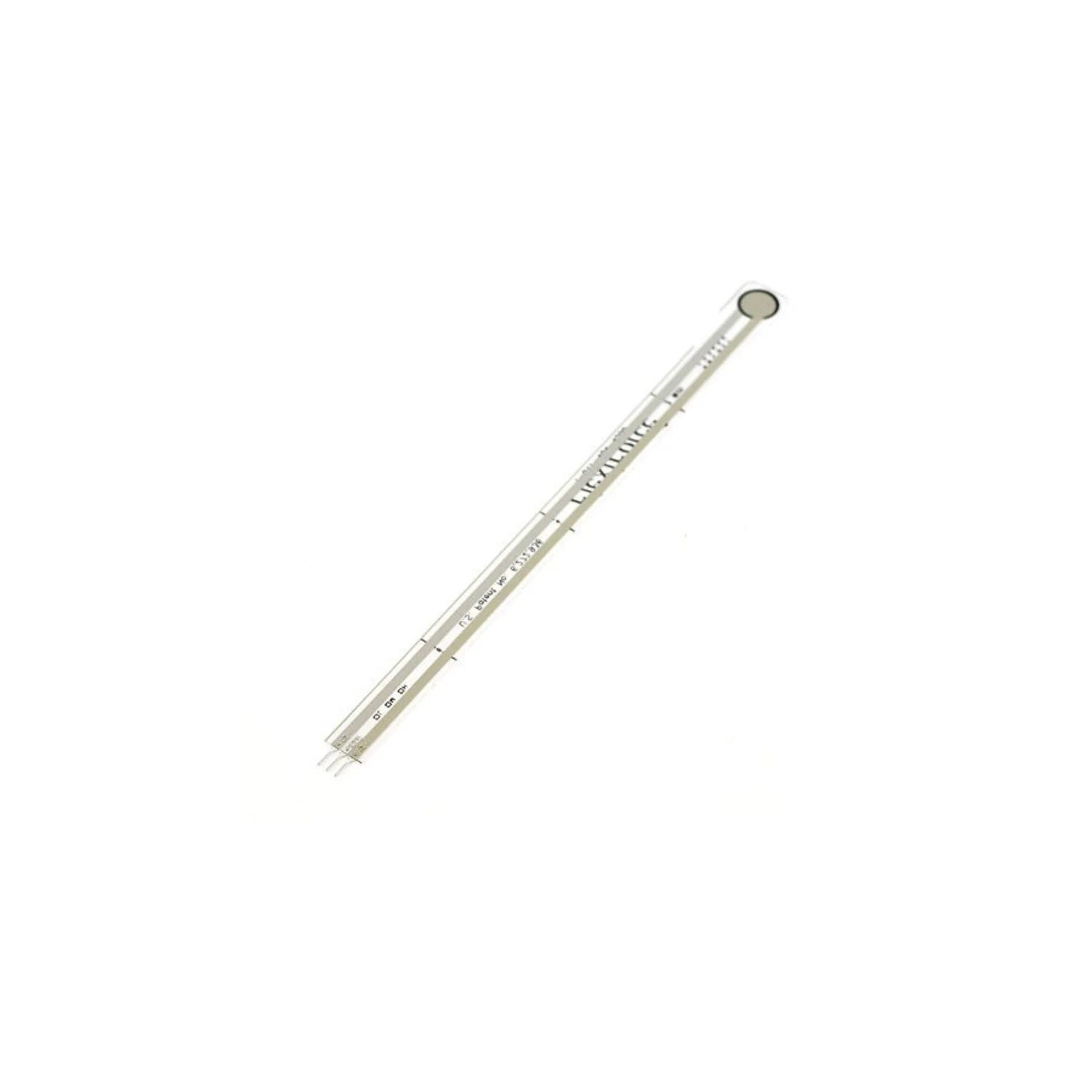

The FlexiForce is a thin, flexible piezoresistive force sensor that measures applied pressure from 0 to 100 lbs (440N). The harder you press on the circular sensing area, the lower the sensor's resistance — from effectively infinite (no pressure) down to approximately 300kΩ under heavy force.

The sensor is flexible but only responds to pressure applied to the 9.53mm diameter sensing area at the tip, not to bending. It features a breadboard-friendly 0.1"-spaced 3-pin connector and a fast response time under 5ms.

Key Features

• Piezoresistive Sensing – Resistance decreases proportionally with applied force
• 0–100 lbs Range – Measures up to 440N of force
• Thin & Flexible – Can be embedded in tight spaces and curved surfaces
• Fast Response – Less than 5ms response time
• Breadboard-Friendly – 3-pin male connector with 0.1" spacing

Specifications

• Force Range: 0–100 lbs (440N)
• Sensing Area: 9.53mm (0.38") diameter
• Response Time: <5ms
• Max Working Current: 2.5mA
• Connector: 3-pin male square pin (0.1" spacing)
• Dimensions: 216 × 14mm (8.5" × 0.55")

Ideal For

• Presence and weight detection
• Impact testing and force measurement
• Touch and contact sensing
• Force threshold triggers and alarms

Package Contents

• 1× FlexiForce Pressure Sensor (100 lbs)
