Flip-Pin (20-pins)
Flip-Pins are low-profile headers designed by Fliptronics that look and act like traditional IC pins. At 0.020″ wide — the same as standard DIP IC pins — they're directly compatible with breadboards and IC sockets without the damage that wider square header pins can cause.

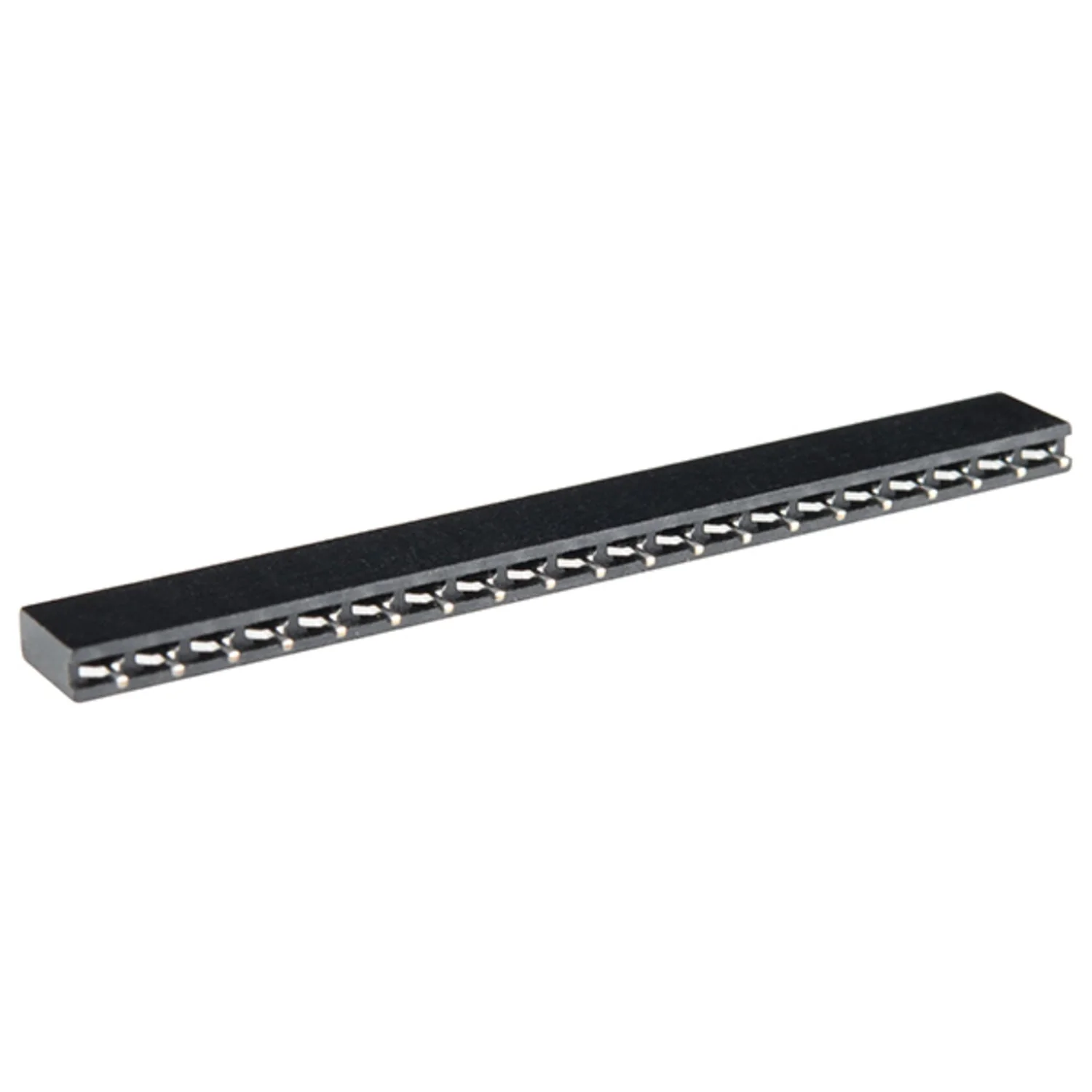

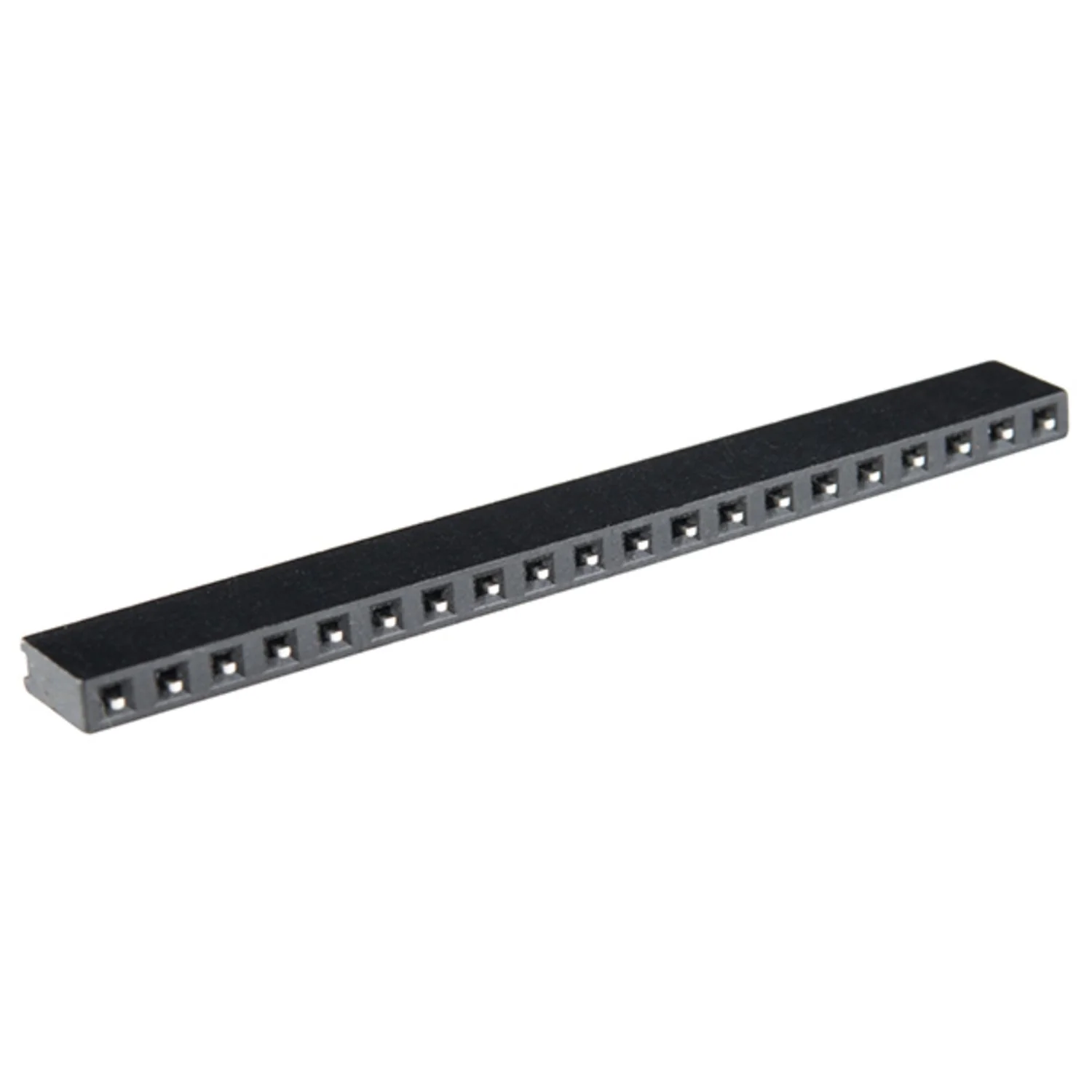

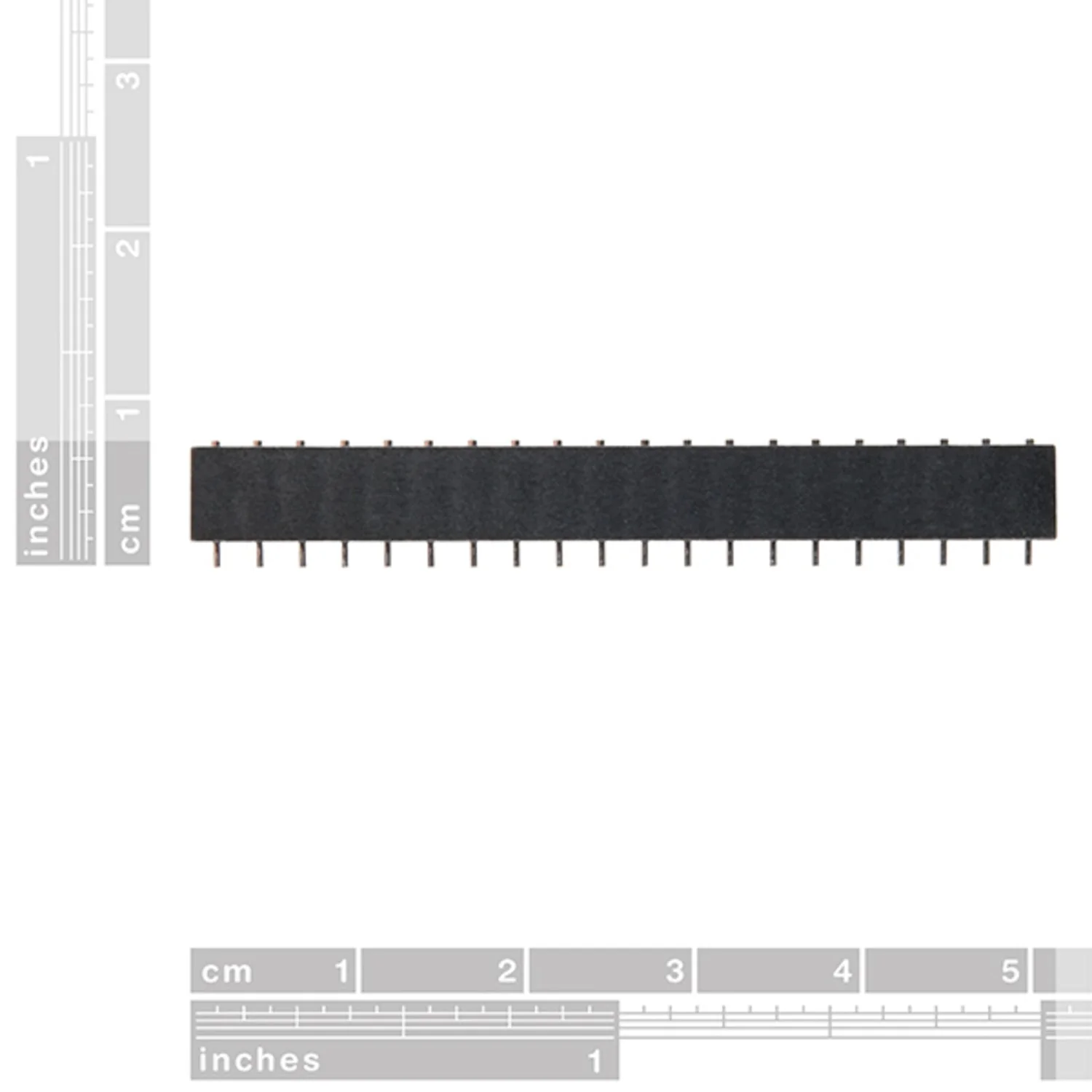

Each set of 20 pins comes in a black plastic aligner sleeve that holds pins 0.100″ apart with a 0.062″ solder tail. Solder the pins in place, remove the sleeve, and you have clean, flush-mount headers. Cut the sleeve to the number of pins you need, or combine multiple strips for longer lengths.
Key Features
- 0.020″ Pin Width – Standard DIP IC width, won't damage breadboards
- 0.100″ Pitch – Standard header spacing
- Plastic Aligner Sleeve – Holds pins during soldering, removable after
- Low Profile – Near-flush with the top of the PCB after soldering
- Cuttable – Trim sleeve to any pin count
- 20 Pins – Per strip
