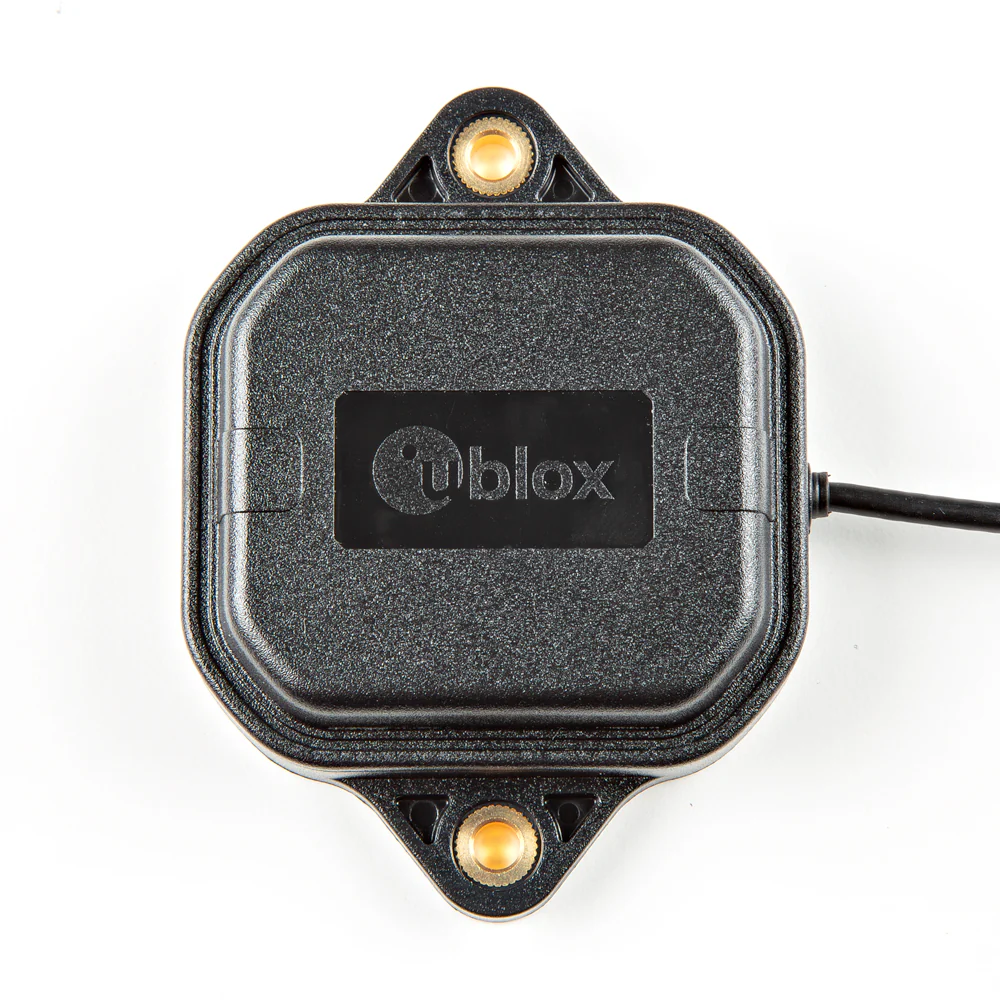

The u-blox ANN-MB1 is a multi-band active GNSS antenna supporting L1, L5, E5a, B2a, and NavIC frequency bands. Designed for high-precision positioning applications, it pairs directly with the u-blox F9 platform (NEO-F9P, ZED-F9P, ZED-F9T) and other multi-band GNSS receivers.

The antenna features a high-performance RHCP dual-resonance, dual-feed patch element with a built-in high-gain LNA and SAW pre-filtering. It comes with a 5-metre cable terminated with an SMA connector.

Key Features

• Multi-Band GNSS – L1 (1559–1606 MHz) and L5/E5a/B2a/NavIC (1164–1188 MHz)
• RHCP Polarisation – Right-hand circular polarisation for optimal satellite reception
• Built-In LNA – High-gain low-noise amplifier with SAW pre-filter
• 5-Metre Cable – SMA connector for easy integration
• u-blox F9 Compatible – Optimised for NEO-F9P, ZED-F9P, and ZED-F9T modules

Specifications

• Frequency Bands – L1: 1559–1606 MHz · L5/E5a/B2a/NavIC: 1164–1188 MHz
• Peak Gain (12 cm ground plane) – L1: 3.8 dBic · L5: 1.3 dBic
• Axial Ratio (Zenith) – L1: 3.3 dB typical · L5: 3.4 dB typical
• Efficiency – L1: 55% typical · L5: 40% typical
• VSWR – Max 2:1
• Impedance – 50Ω
• Polarisation – RHCP
• Cable Length – 5 m
• Connector – SMA
• Dimensions – 60 × 82 × 22.5 mm
• Weight – 164 g (including cable)

Ideal For

• RTK and high-precision GNSS positioning
• Surveying and mapping equipment
• Autonomous vehicle and drone navigation
• u-blox F9 platform evaluation and integration

Resources

• Datasheet (PDF)
