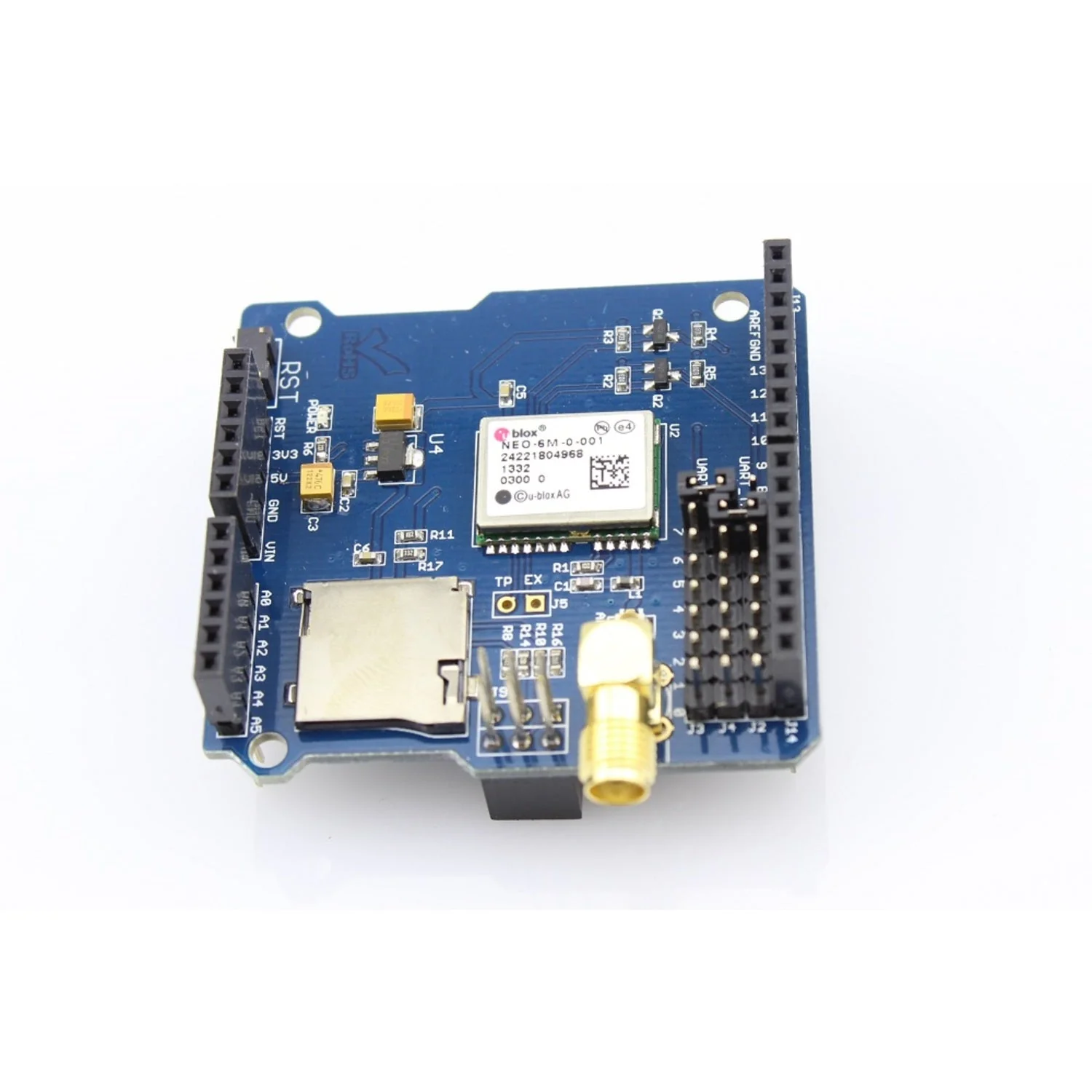

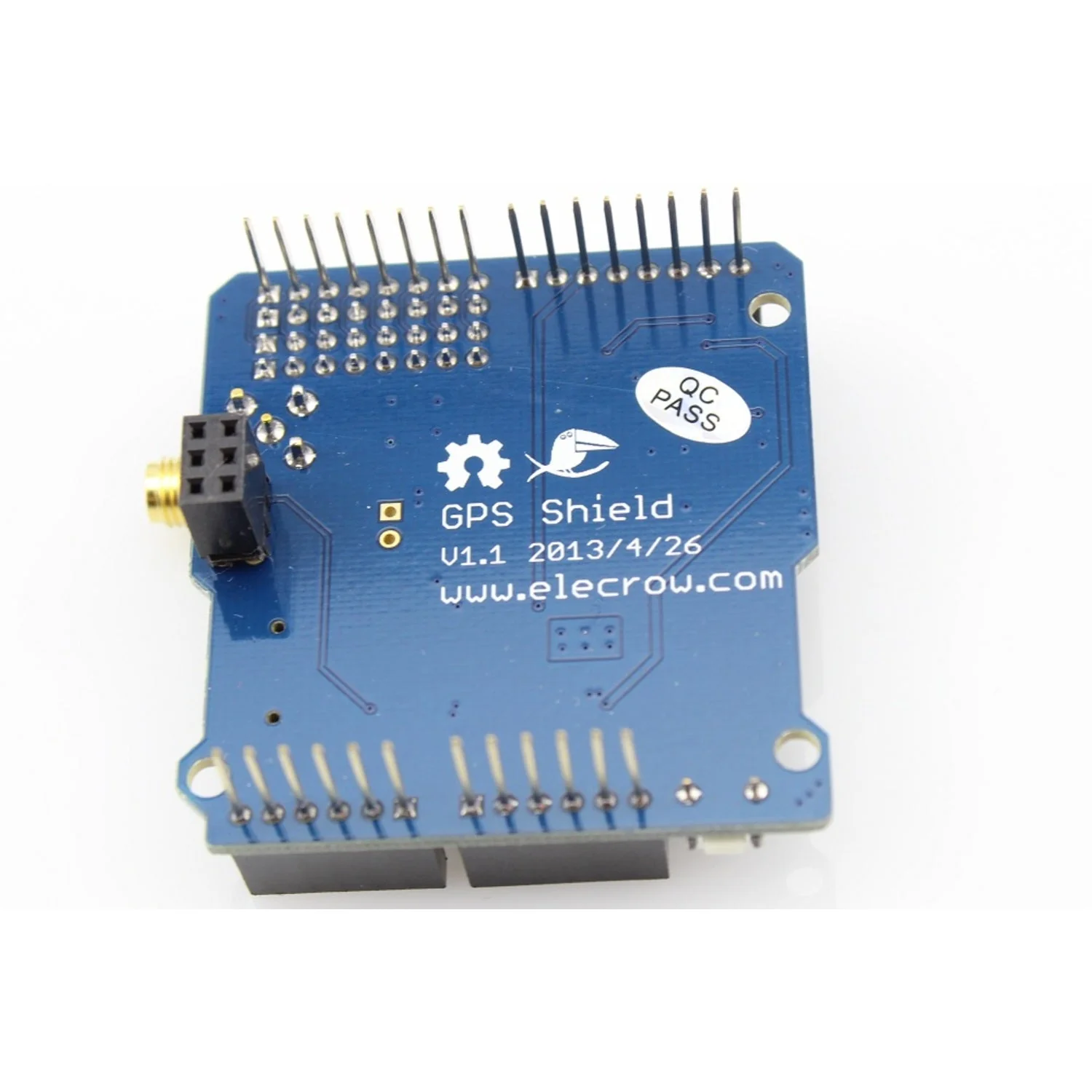

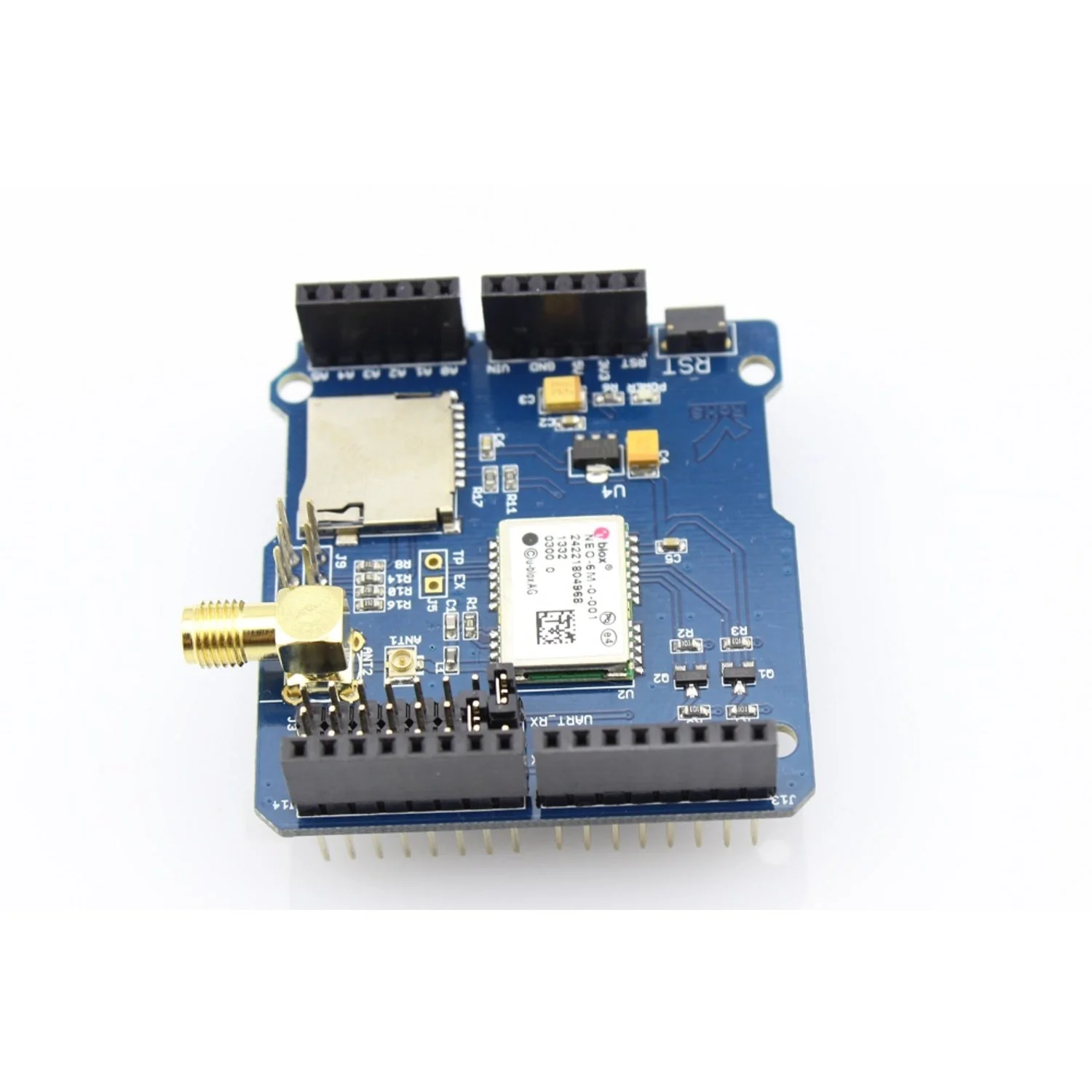

The GPS Shield is based on the u-blox NEO-6M receiver module and plugs directly into Arduino UNO, Mega, and compatible boards. It provides GPS positioning data via a serial port connection (pins configurable to D0–D7) and includes a micro SD card slot for data logging.

An active IPC antenna is included for high receive sensitivity, and the shield supports both 3.3 V and 5 V logic levels for broad Arduino compatibility.

Key Features

• u-blox NEO-6M GPS Module – Reliable satellite positioning with fast time-to-first-fix
• Arduino Shield Form Factor – Compatible with Arduino UNO, Mega, and Crowduino
• Micro SD Card Slot – Log GPS data directly to a memory card
• 3.3 V / 5 V Logic Compatible – Works with all common Arduino boards
• Active Antenna Included – High sensitivity; also compatible with standard passive antennas
• Configurable Serial Pins – RX/TX assignable to D0–D7 for software serial support

Specifications

• GPS Module – u-blox NEO-6M
• Operating Temperature – −40 °C to +85 °C
• Logic Voltage – 3.3 V / 5 V

Ideal For

• GPS tracking and data logging projects
• Arduino-based navigation and positioning systems
• Outdoor environmental monitoring with location tagging

Package Contents

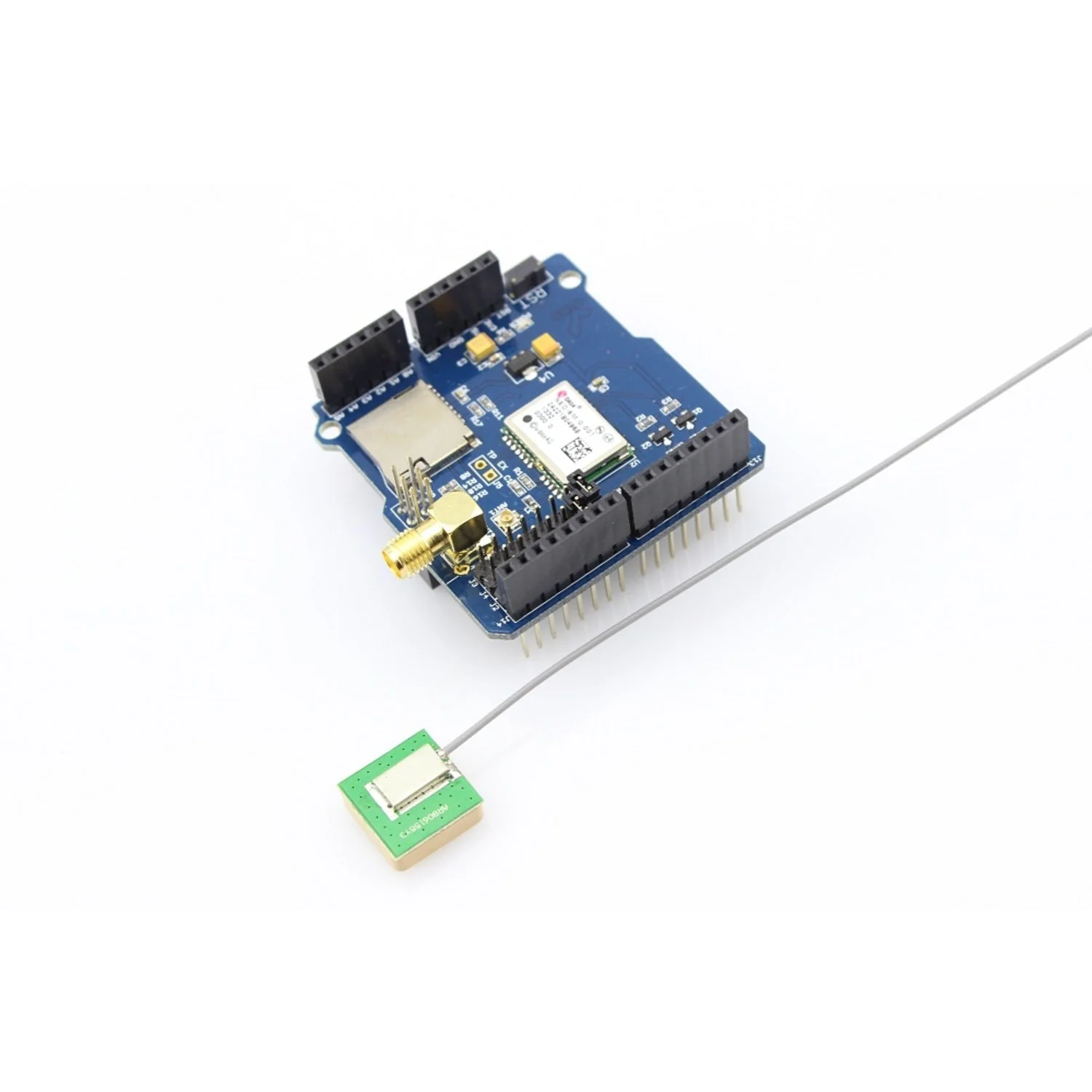

• 1× GPS Shield (assembled)
• 1× IPC active antenna

Resources

• Wiki & Setup Guide (Elecrow)
