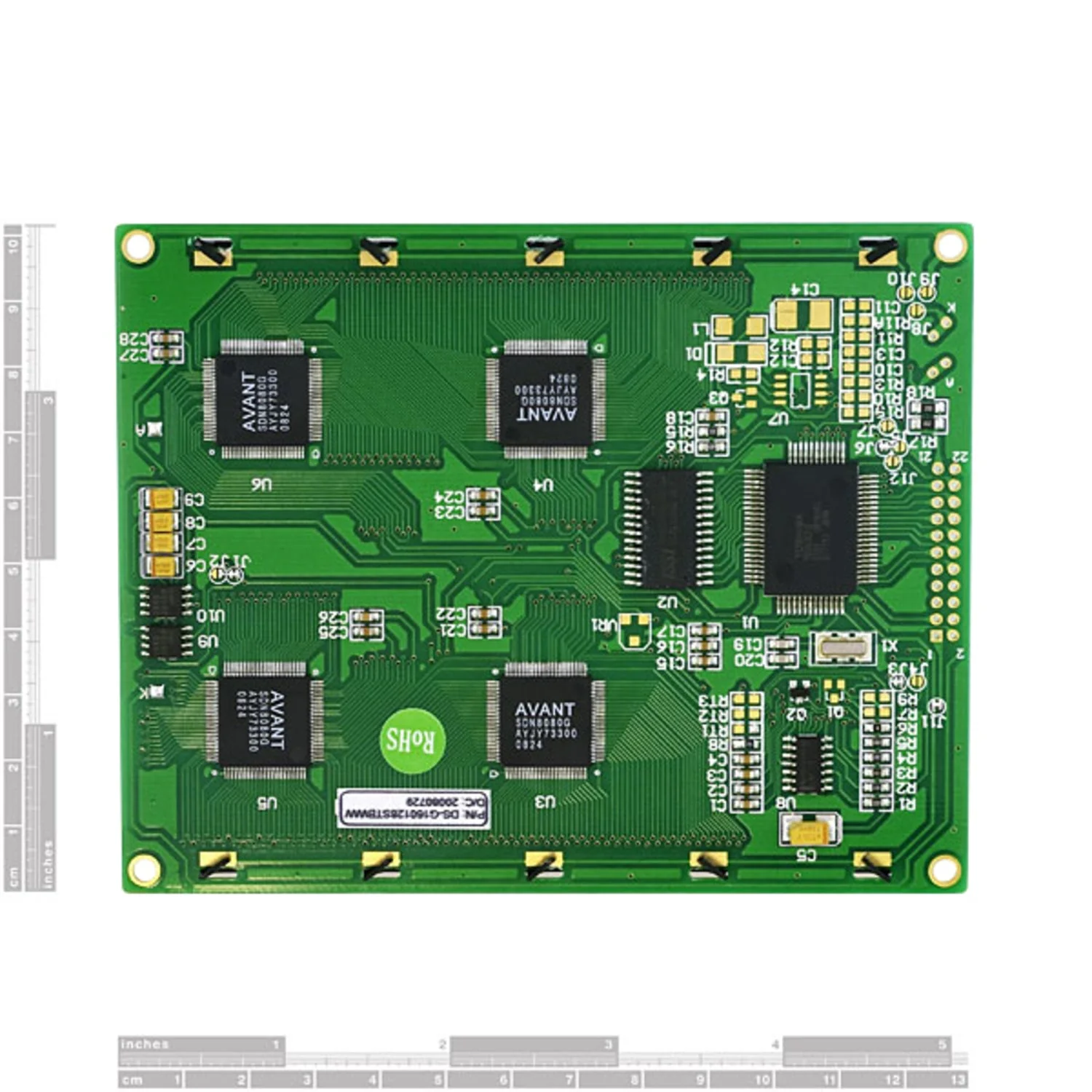

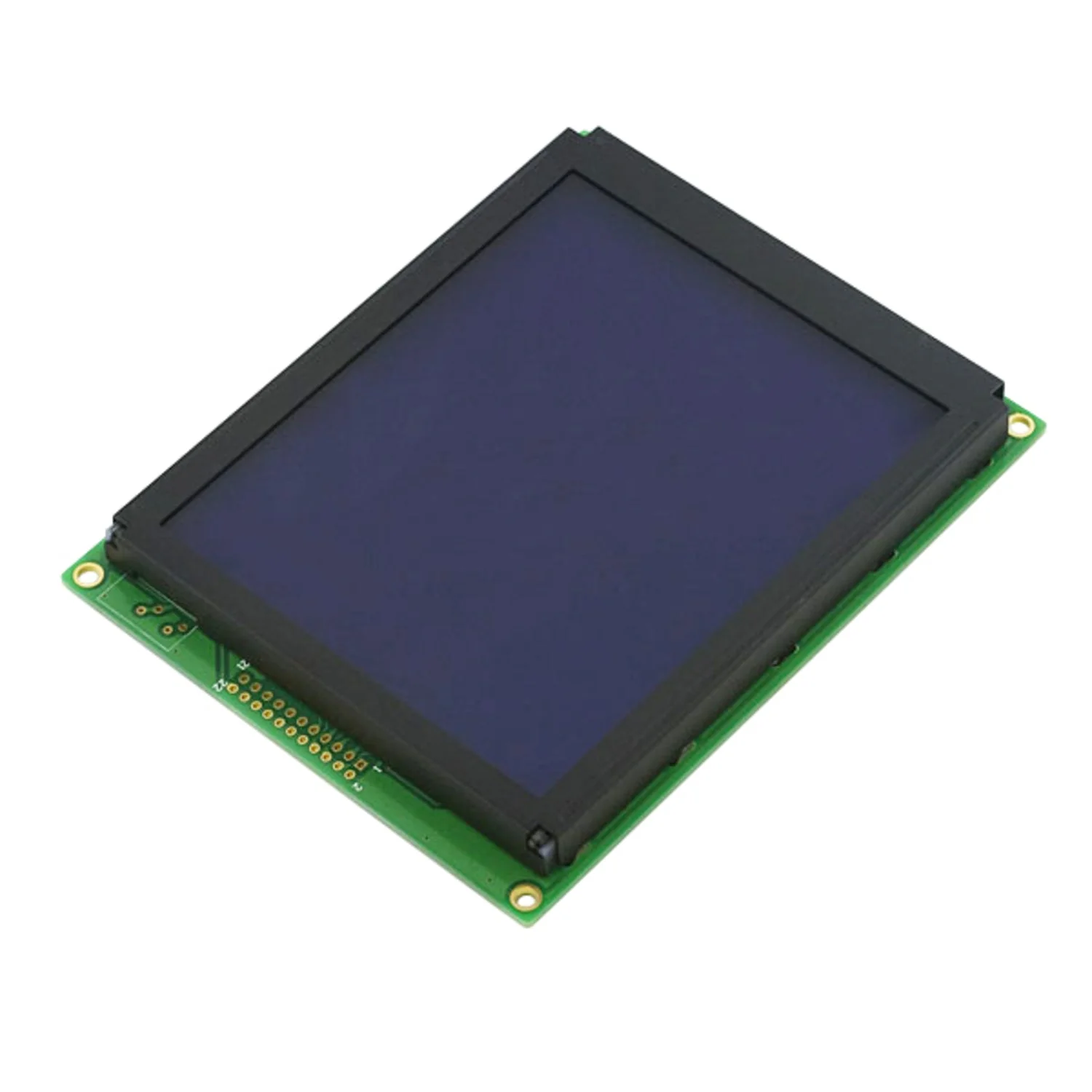

A large 160×128 pixel graphical STN LCD with a blue background and white pixels. This display features a built-in T6963C parallel interface controller and white LED backlight, all driven from 5V with on-board negative voltage generation for contrast.

Specifications

• Resolution – 160 × 128 pixels
• Display Type – STN Negative Transmissive
• Colours – Blue background, white pixels
• Bias – 1/9th
• Backlight – White LED (5V @ 200 mA)
• Controller – T6963C
• LCD Power – 5V @ 1 mA
• Dimensions – 102 × 129 mm (4 × 5")
• Weight – 260 g

Package Contents

• 1× Graphic LCD 160×128 with backlight

Resources

• Datasheet (PDF)
• T6963C Controller Manual (PDF)
• T6963C Application Note (PDF)
• Toshiba Application Note (PDF)
• Hookup Guide
