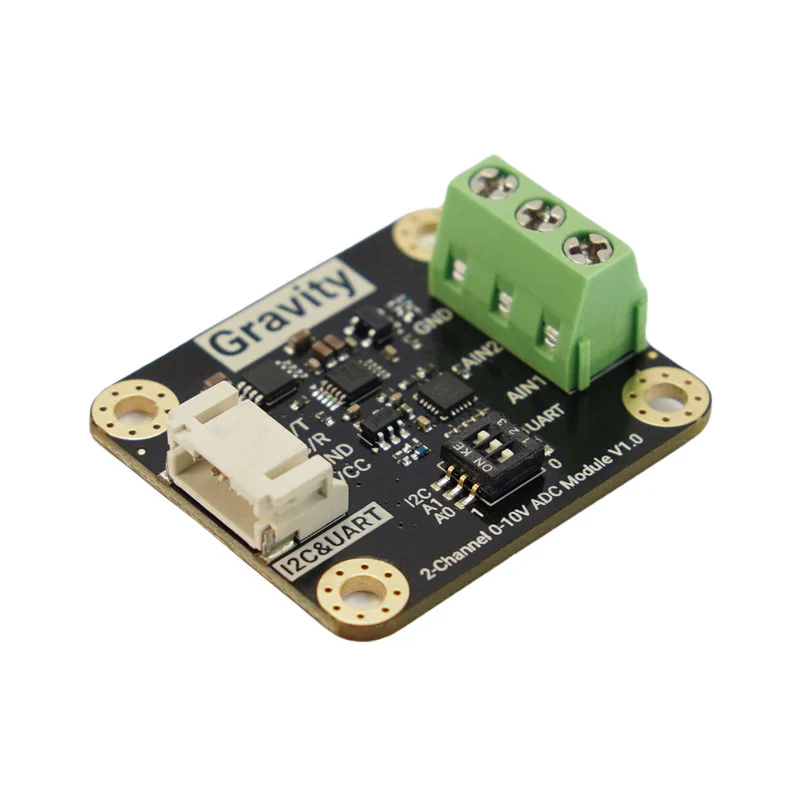

The Gravity 0–10V ADC Module is a high-precision dual-channel analogue-to-digital converter designed to interface industrial-grade 0–10V sensors with microcontrollers and Linux-based systems. Built on the Texas Instruments ADS1115, it delivers 15-bit resolution (0.375 mV per step) with ±2 mV accuracy across the full 0–10V input range.

The module bridges the voltage gap between high-output industrial sensors (pressure transducers, flow meters, wind speed sensors) and low-voltage controllers like Arduino and Raspberry Pi — no external signal conditioning required. Dual I²C and UART interfaces with the standard Gravity 4-pin connector make integration straightforward.

Key Features

• 15-Bit Resolution – 0.375 mV steps with ±2 mV measurement accuracy
• 0–10V Input Range – Direct interface with industrial-standard sensors
• Dual-Channel Input – Read two analogue signals simultaneously
• ADS1115 ADC Chip – Programmable gain amplifier (PGA) and internal voltage reference
• I²C and UART – Flexible communication for microcontrollers and PLCs
• Gravity Connector – Standard 4-pin interface for quick wiring
• Wide Supply Voltage – 3.3V to 5V DC operation

Specifications

• ADC Chip: ADS1115
• Input Range: 0–10V
• Resolution: 15-bit (0.375 mV)
• Accuracy: ±2 mV
• Communication: I²C / UART
• Supply Voltage: 3.3–5V DC

Ideal For

• Industrial automation — pressure, flow, and temperature monitoring
• Environmental monitoring — water quality, wind speed, humidity
• Energy management — voltage signal tracking from meters and inverters
• Bridging 0–10V industrial sensors to Arduino, Raspberry Pi, or PLCs

Package Contents

• 1× Gravity 0–10V 15-bit Dual-Channel ADC Module
• 1× Gravity 4-Pin I²C/UART Cable

Resources

• Product Wiki
