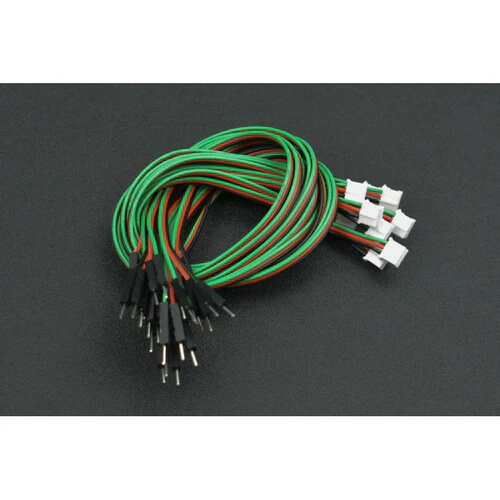

This high-quality 30cm digital sensor cable is equipped with 3 pin PH2.0 plug connector on one side and Dupont male connector on the other side.

One package has 10 cables. Compatible with breadboard and DuPont wire spacing, these cables use materials that are in line with RoHS requirements. It’s color labeled, which is convenient for distinguishing the sensor output type and wiring in the production project.

They are specially designed for our popular IO Expansion shield and digital sensors such as vibration sensors, tilt sensors, magnetic induction, etc.

It connects most of our digital sensors to the IO board, making it convenient to make interesting interactive works.

Features

Compatible with breadboard and DuPont wire spacing

Color labeled, convenient for distinguishing

Applications

Connect digital sensors to the IO board

Specification

Withstand Voltage: <50V

Withstand Current: <1000mA

Length: 30cm

Interface: 3Pin PH2.0-DuPont Male

Black Wire: Power -

Red Wire: Power +

Green Wire: Digital signal

Shipping List

Gravity: 3 Pin PH2.0 to DuPont Male Connector Digital Cable (30cm) x10
