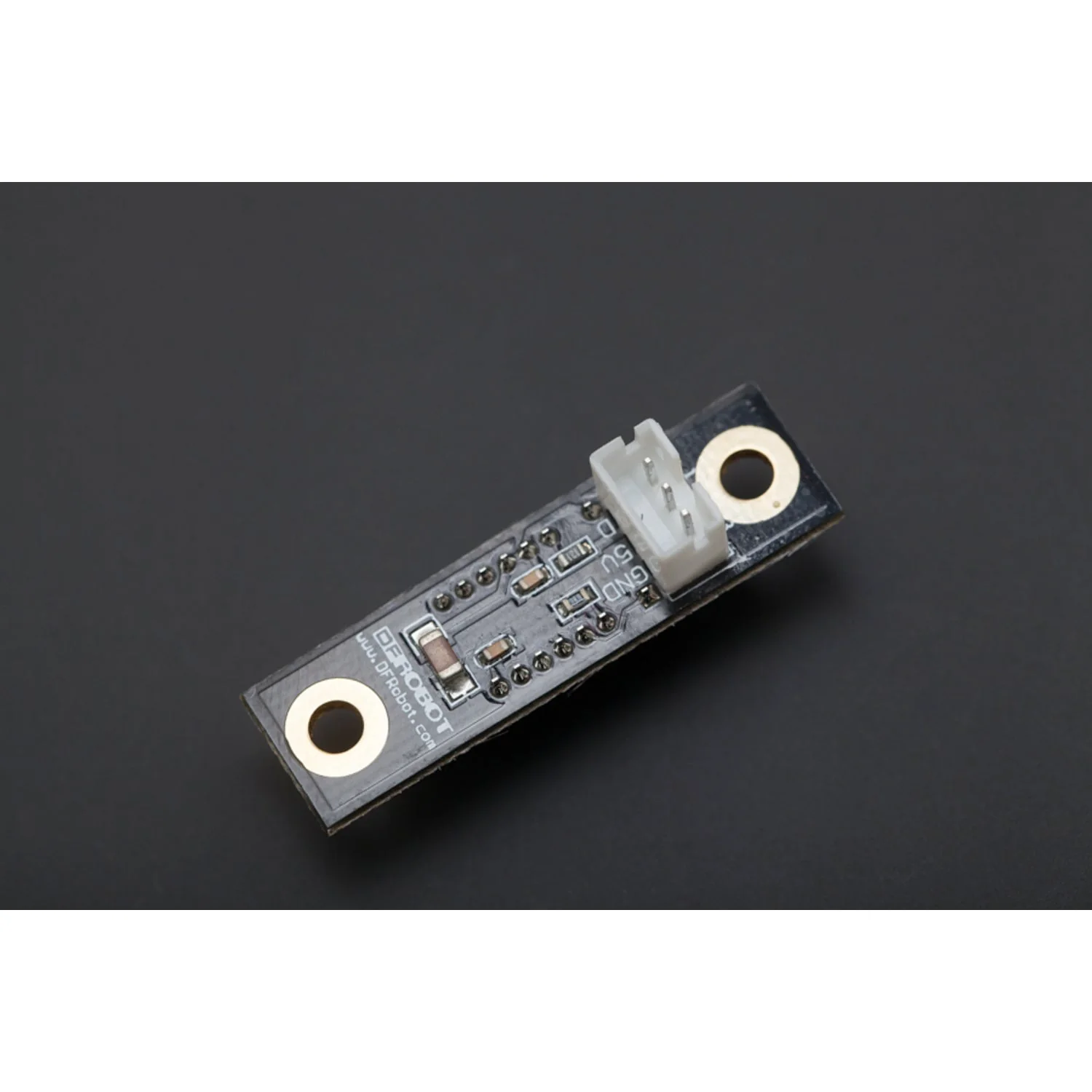

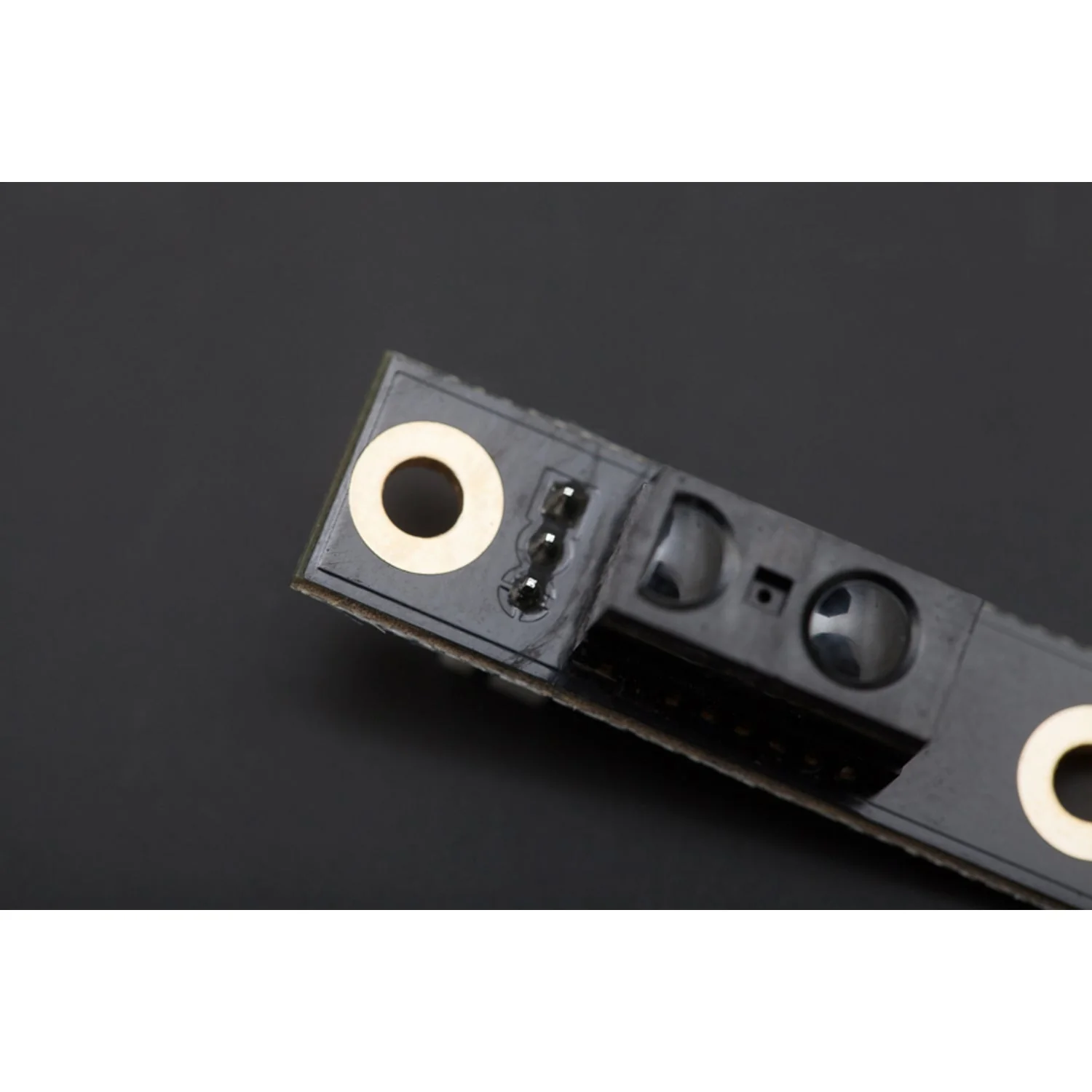

A compact digital infrared distance sensor from DFRobot's Gravity range, designed for edge detection and close-range proximity sensing. It detects objects within 1–10 cm and outputs a simple digital HIGH/LOW signal — perfect for preventing robots from falling off tables or down stairs.

Connects directly to an Arduino digital pin using the included Gravity sensor cable. The low power consumption (under 10 mA) and lightweight design (under 5 g) make it ideal for mobile robotics platforms.

Key Features

• 1–10 cm Detection Range – Close-range infrared proximity sensing
• Digital Output – Simple HIGH/LOW signal for easy integration
• Low Power – Under 10 mA current draw
• Lightweight – Under 5 g
• Gravity Interface – Plug-and-play cable included

Specifications

• Supply Voltage: 2.7–6.2 V
• Current: <10 mA
• Detection Range: 1–10 cm
• Output: Digital (HIGH: VCC − 0.6 V, LOW: 0.6 V)
• Dimensions: 35 × 10 × 15 mm
• Weight: <5 g

Ideal For

• Edge detection on mobile robots
• Home cleaning robot cliff sensors
• Close-range obstacle detection

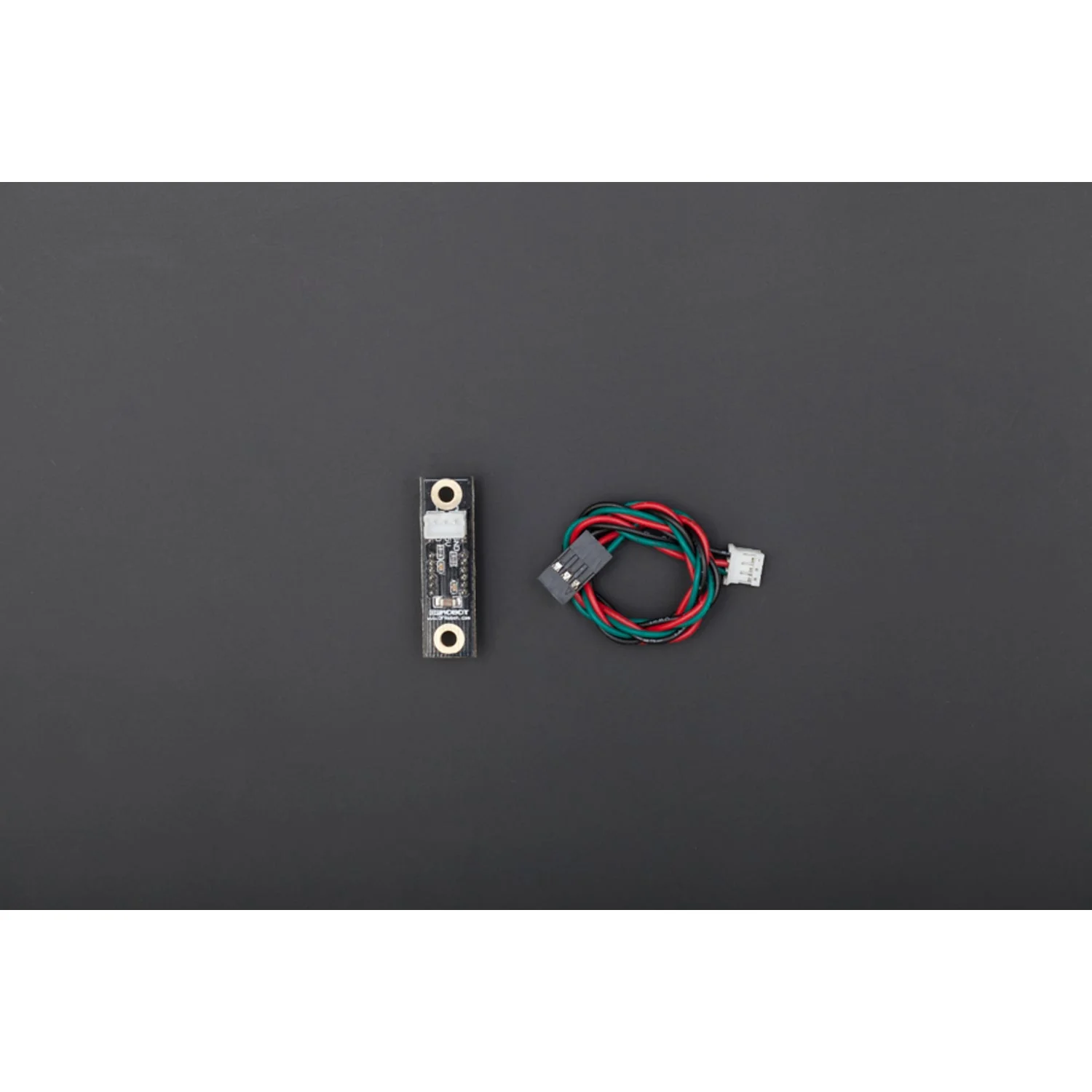

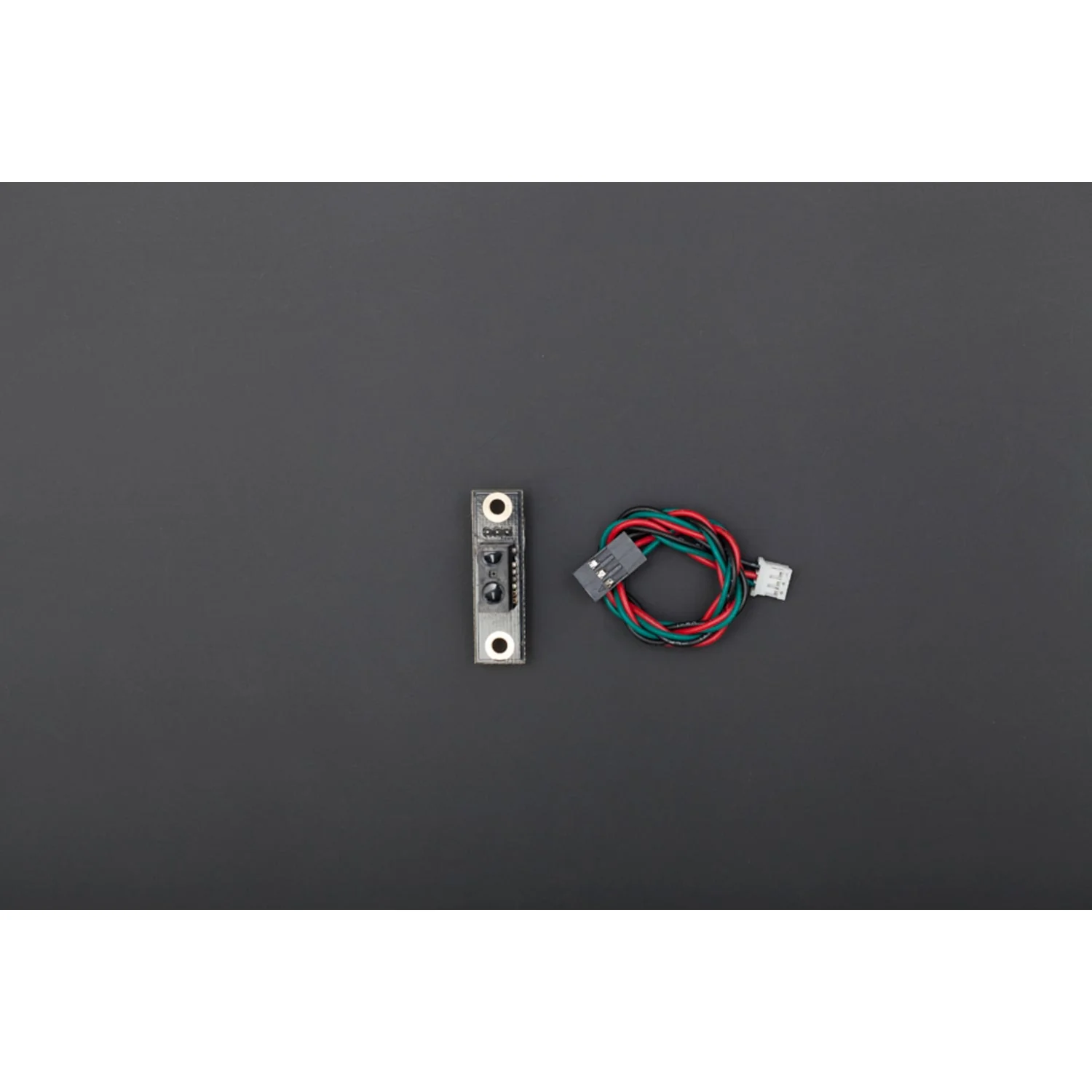

Package Contents

• 1× 10 cm Infrared Sensor with breakout board
• 1× Digital sensor cable

Resources

• Product Wiki (DFRobot)
• Sensor Datasheet (PDF)
• Sample Code
