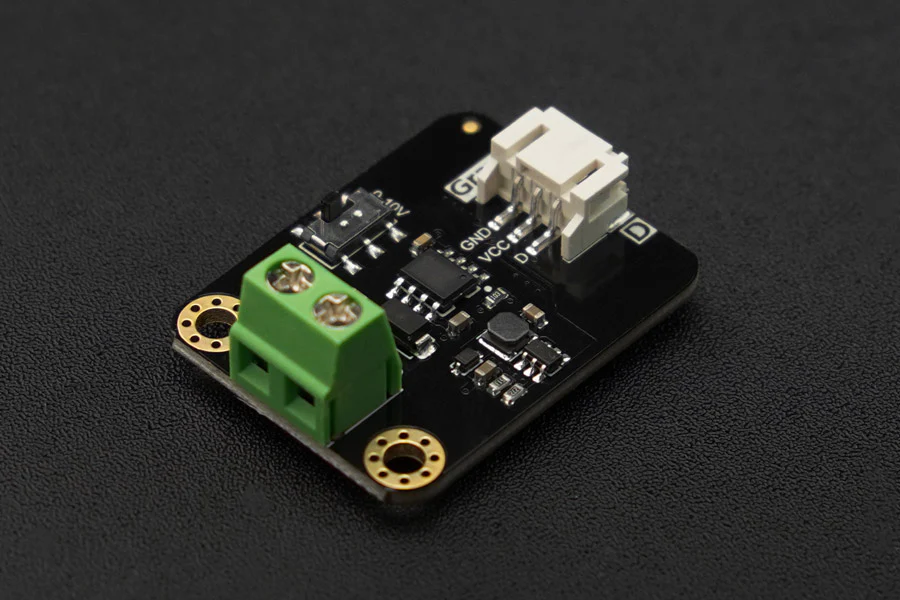

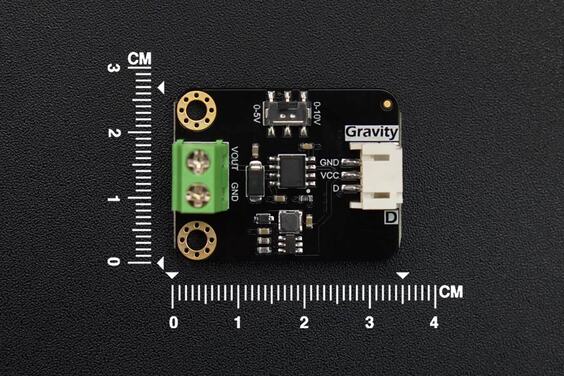

A 1-channel DAC module that converts a PWM signal from any microcontroller into a precise 0–5V or 0–10V analogue voltage output. Built around the GP8101S chip with 8-bit resolution and 0.2% accuracy, it's ideal for driving standard 0–10V or 0–5V controlled devices in automation projects — lights, frequency converters, valves, pumps, and more.

Controlled via PWM from a digital MCU pin through the Gravity 3-pin interface, making it simple to integrate with Arduino and other development boards. Compatible with both 3.3V and 5V systems.

Key Features

• 0–5V or 0–10V Output – Standard analogue voltage for industrial and automation devices
• PWM Controlled – Drive from any MCU digital pin
• High Accuracy – Output voltage error less than 0.2%, linearity error 0.1%
• 3.3V and 5V Compatible – Works with Arduino, ESP32, Raspberry Pi, and more
• Gravity Interface – Plug-and-play 3-pin analogue connector
• Cascadable – Link multiple modules for multi-channel output

Specifications

• DAC Chip – GP8101S
• Resolution – 8-bit (0–255)
• Output Voltage – 0–5V or 0–10V
• Channels – 1
• Communication – PWM
• Operating Voltage – 3.3V–5V
• Output Accuracy – 0.2%
• Linearity Error – 0.1%

Ideal For

• Automatic lighting adjustment (0–10V dimmers)
• Variable frequency drive (VFD) control
• Valve regulation and pump control
• Industrial automation with Arduino

Package Contents

• 1× GP8101S 1-Channel PWM to 0–5V/10V DAC Module
• 1× Gravity 3-Pin Analogue Sensor Cable

Resources

• Product Wiki
