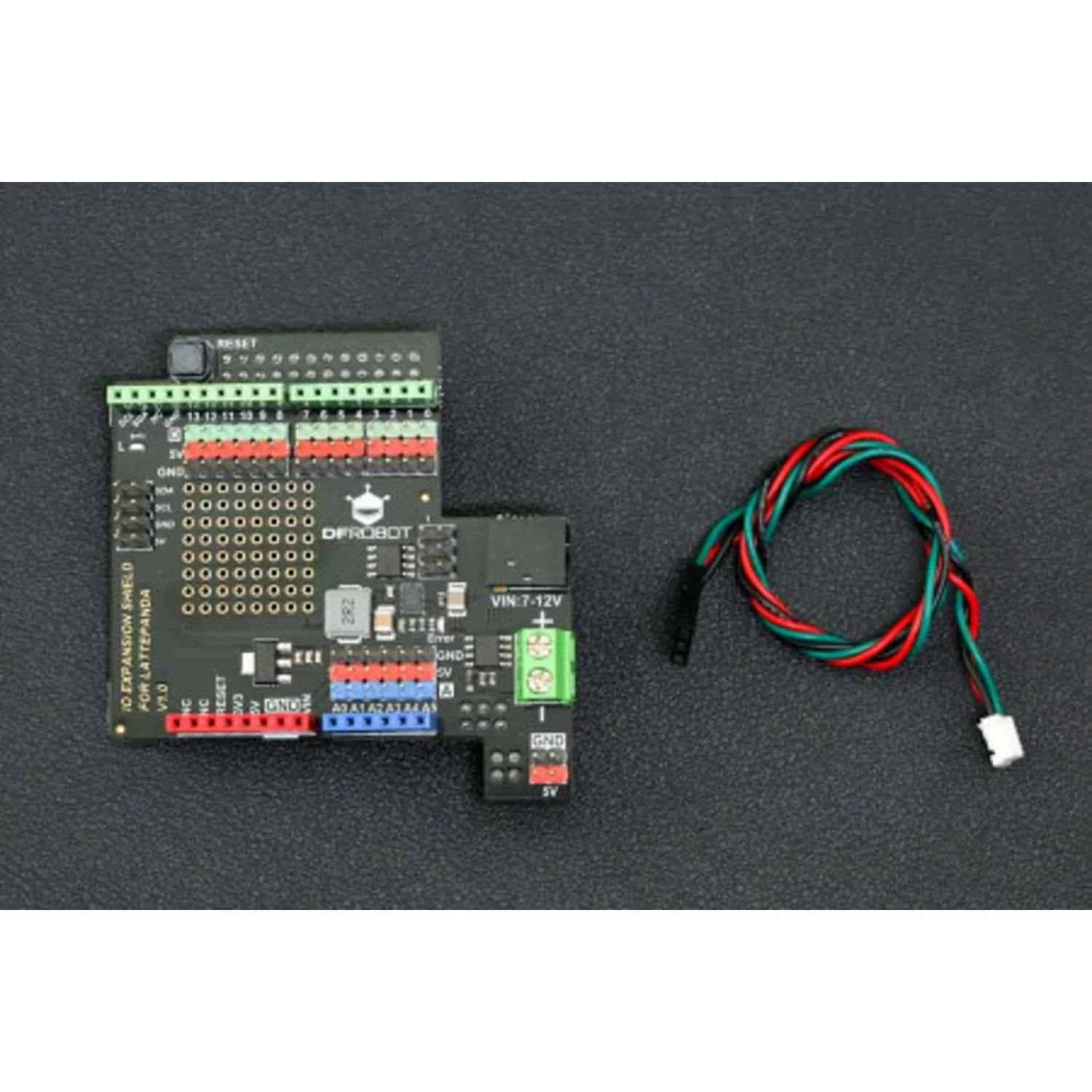

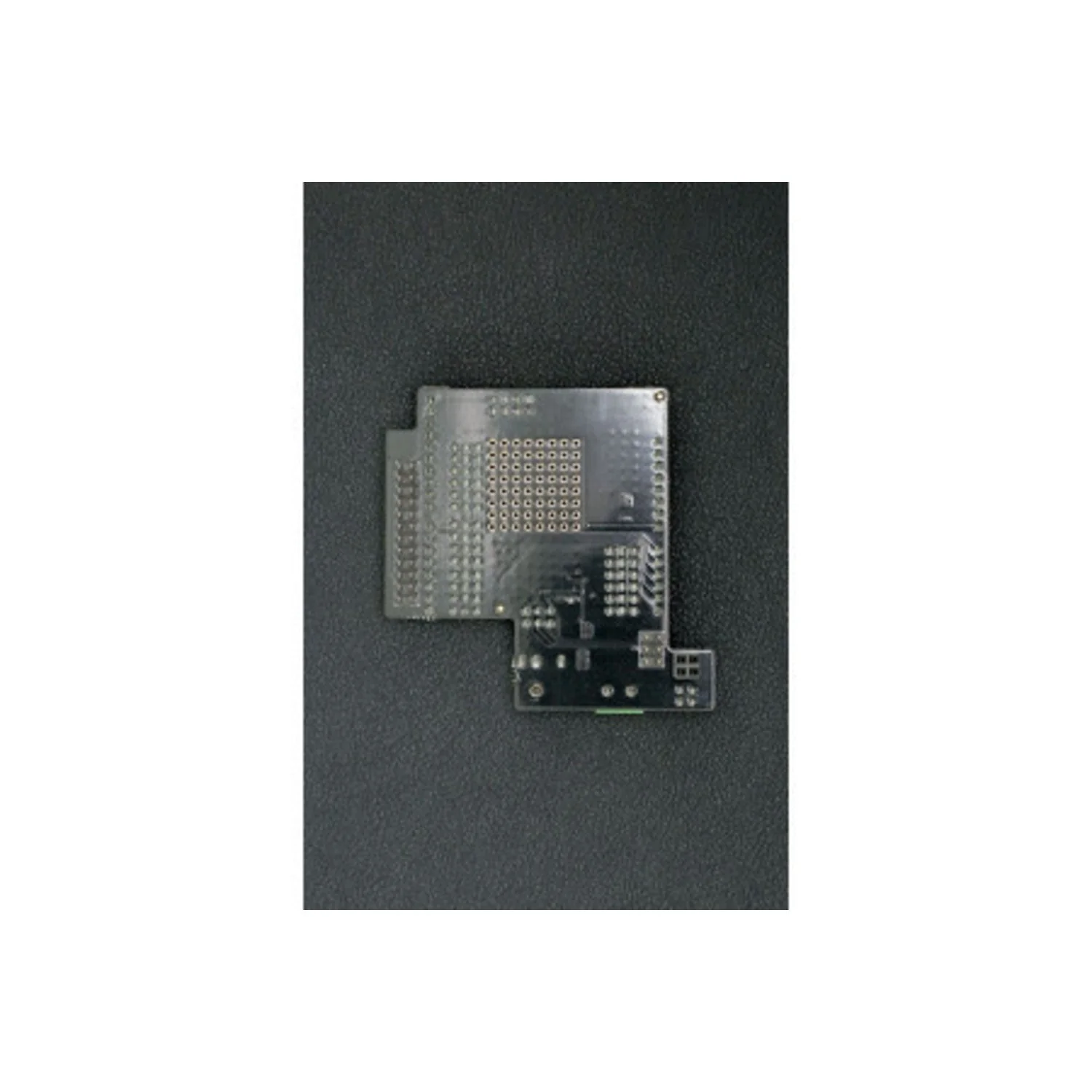

The Gravity IO Expansion Shield breaks out all GPIO pins from the LattePanda into Gravity-compatible 3-pin colour-coded connectors, providing plug-and-play access to hundreds of Gravity sensors and modules. Each pin includes VCC and GND, eliminating the need for separate power wiring.

The shield also adds a flexible power solution — use a 7–12 V supply via the 2.1 mm DC jack or 2-pin terminal to power both the LattePanda and connected devices, with up to 5 A available at the 5 V output. An 8×8 prototyping pad area is included for custom circuitry.

Key Features

• Gravity 3-Pin Interface – Colour-coded connectors compatible with the full Gravity sensor range
• 14 Digital + 6 Analogue Ports – Full GPIO breakout with VCC and GND on each pin
• 2× I²C Ports – For connecting I²C sensors and modules

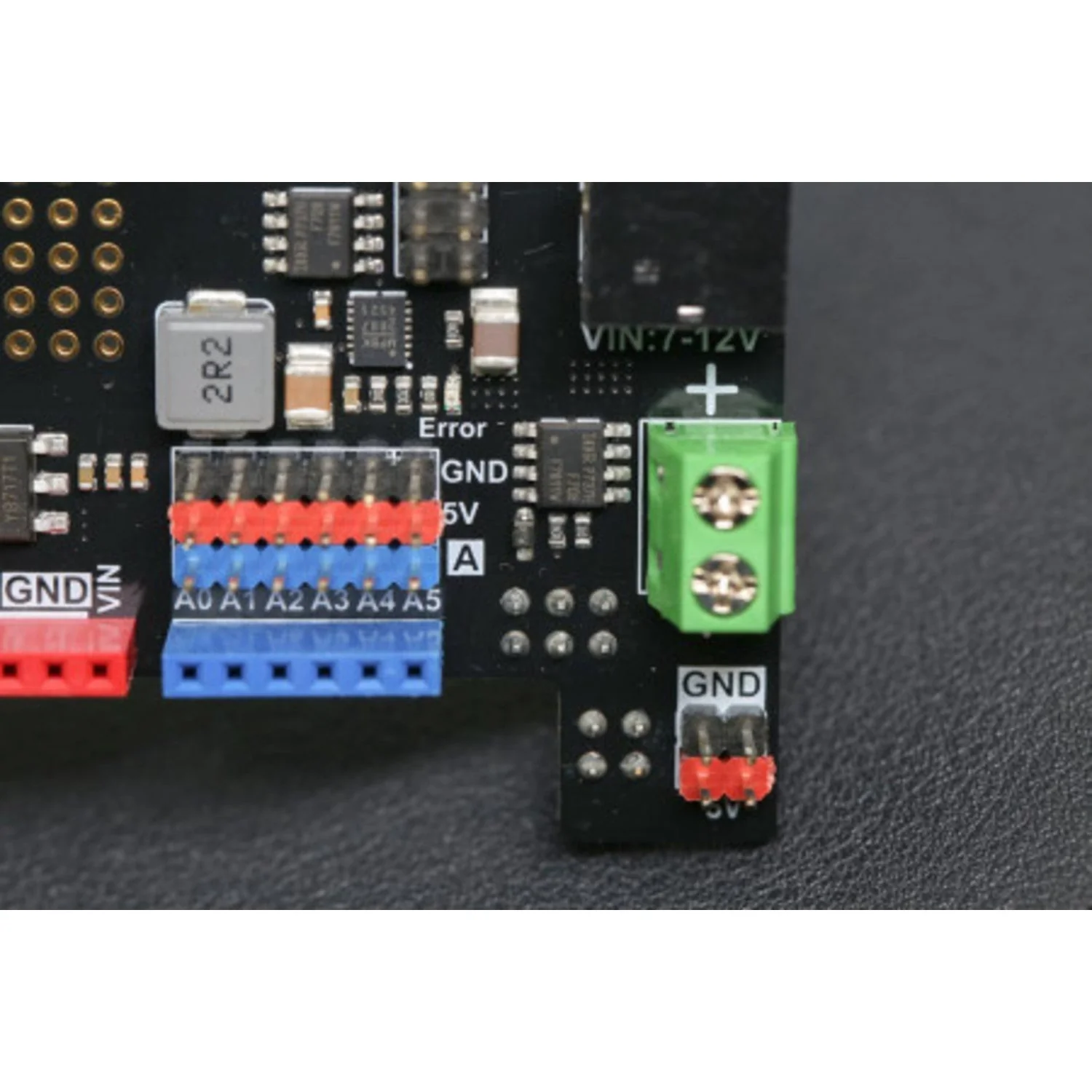

• Flexible Power Input – 7–12 V via DC 2.1 mm jack or 2-pin screw terminal
• High Current Output – Up to 5 A at 5 V, 1 A at 3.3 V

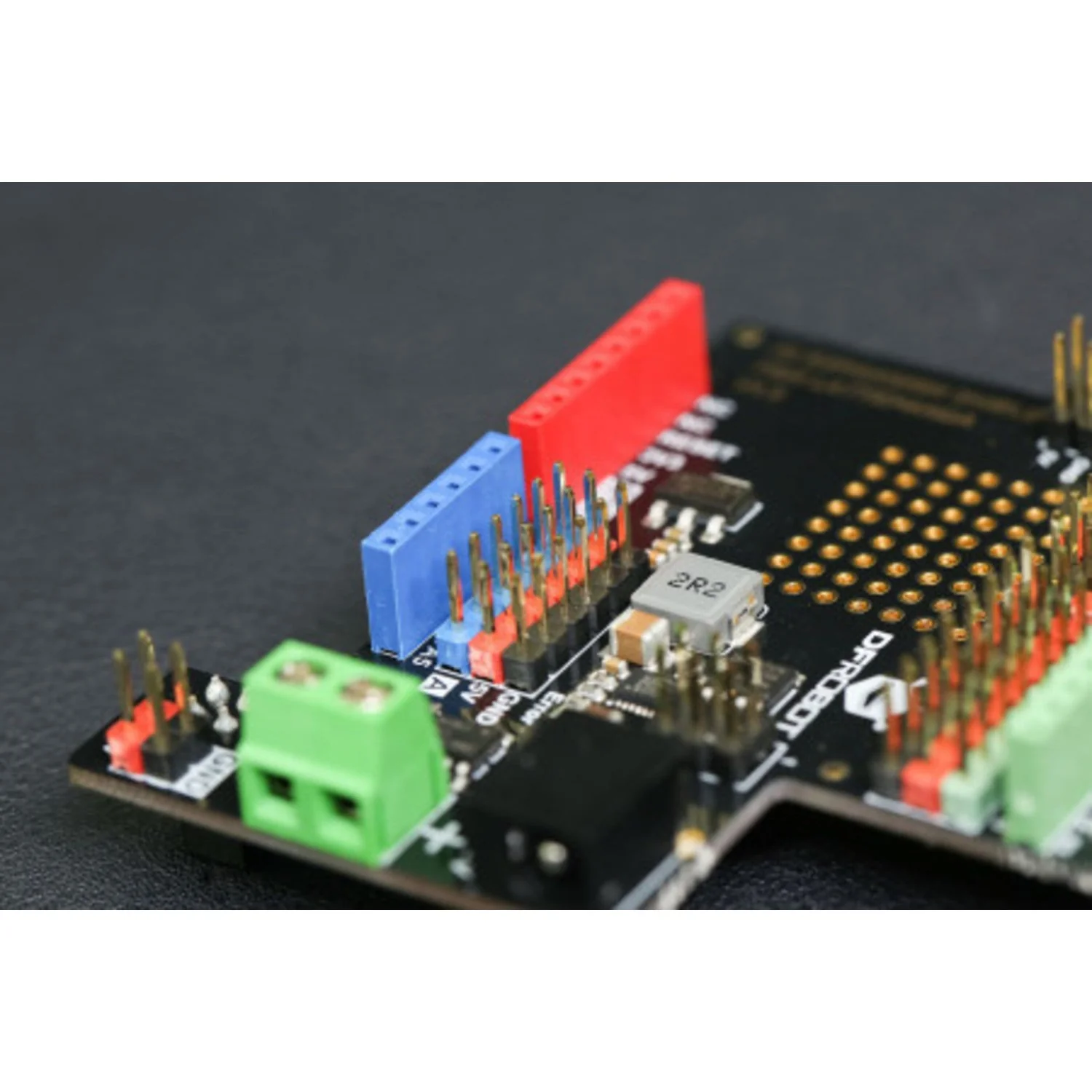

• Prototyping Area – 8×8 general-purpose 2.54 mm pads
• ICSP Port – For direct programming access

Specifications

• Compatibility – LattePanda, Arduino Leonardo
• Input Voltage – 7–12 V
• Power Input – DC 2.1 mm jack or 2-pin terminal
• Digital Gravity Ports – 14
• Analogue Gravity Ports – 6
• I²C Ports – 2
• 5 V Output Current – Up to 5 A
• 3.3 V Output Current – Up to 1 A
• I/O Voltage – 5 V

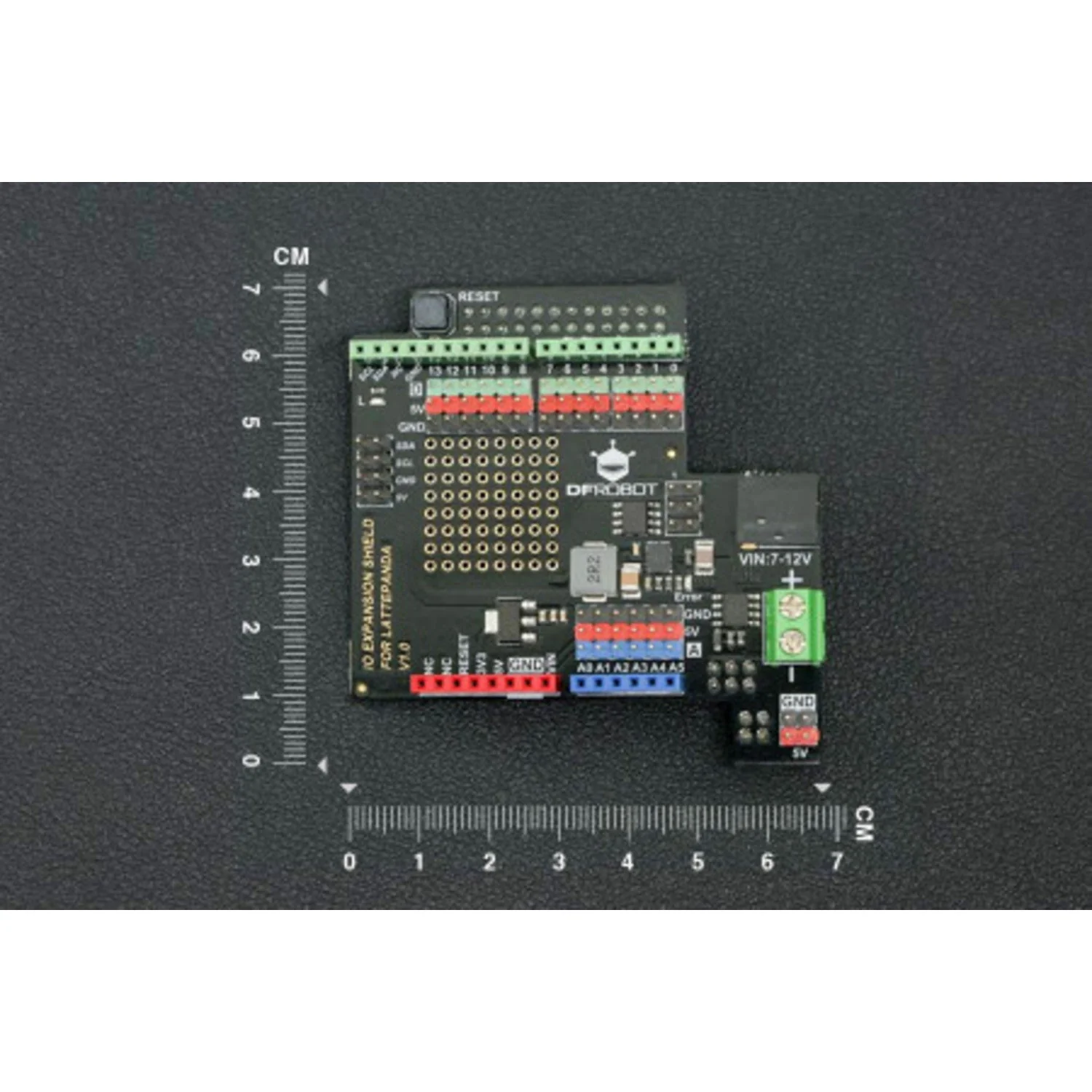

• Dimensions – 70 × 68 mm

Resources

• Schematic (PDF)
• 3D Model (PDF)
