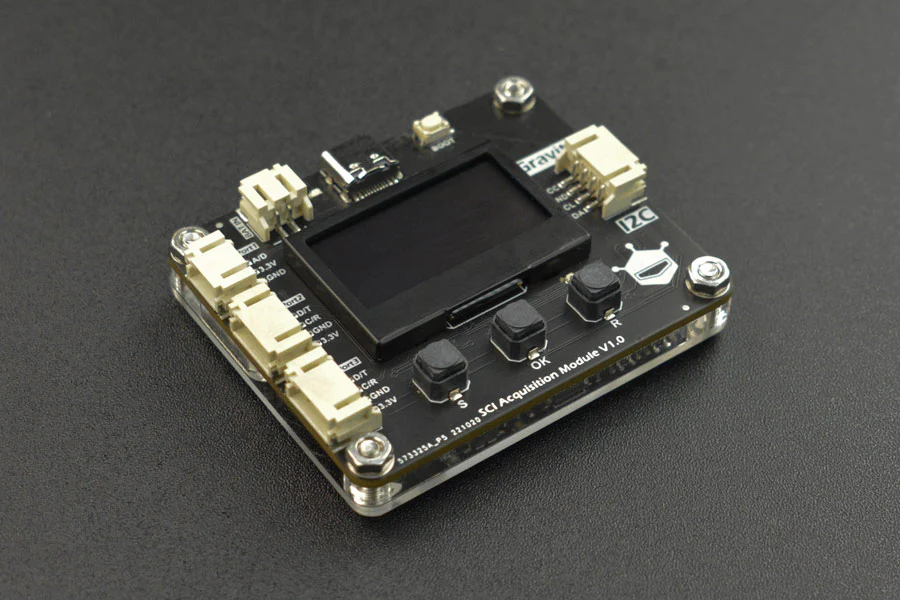

The Gravity SCI DAQ Module is a multi-functional data acquisition module with a built-in 1.3-inch OLED screen for real-time sensor readings. It supports over 20 common sensor types including temperature, humidity, and barometric pressure — with automatic sensor recognition and a standardised I2C data output, so you can read any supported sensor using the same code.

Built-in 16MB storage with an RTC clock lets you log timestamped data for later analysis. The module standardises output across all supported sensors, significantly reducing the complexity of sensor interfacing for Arduino, UNIHIKER, and other I2C-compatible controllers.

Key Features

• Display – 1.3-inch OLED screen for real-time data viewing
• Sensor Support – Auto-recognises 20+ Gravity sensor types
• I2C Output – Standardised data format (addresses 0x21–0x23)
• Data Storage – 16MB on-board U-disk storage
• RTC Clock – CR1220 battery-backed real-time clock for timestamped data
• Operating Voltage – 3.3–5.5V DC
• Operating Current – 40mA
• Input Interfaces – 1× Digital/Analog, 2× I2C/UART
• Output Interface – 1× I2C
• Dimensions – 62 × 52 × 13mm

Ideal For

• STEAM education and science experiments
• Data logging and environmental monitoring
• Simplifying multi-sensor projects
• Rapid prototyping without custom sensor code

Package Contents

• 1× Gravity SCI DAQ Module
• 2× Double-headed PH2.0-4P Cable (20cm)
• 1× Double-headed PH2.0-3P Cable (20cm)
• 1× Gravity 4P Sensor Cable

Resources

• Product Wiki & Documentation
