The Gravity Science Data Acquisition Module Kit is a comprehensive toolkit for conducting digital scientific experiments without programming or electronics knowledge. Built around the DFRobot SCI DAQ module, it includes four sensors covering soil moisture, ambient light, temperature/humidity, and air quality — everything needed for hands-on STEM exploration.

The SCI DAQ module features automatic sensor recognition, a built-in 1.3-inch OLED display, data logging with 16 MB onboard storage, and an RTC clock. Simply plug in a sensor, and the module handles data conversion and display automatically. It also outputs data via I2C, making it compatible with micro:bit, Arduino, Raspberry Pi, and UNIHIKER.

Key Features

• No Programming Required – Plug-and-play sensor reading and data logging
• Automatic Sensor Recognition – SCI DAQ module detects connected sensors automatically
• 1.3-Inch OLED Display – Real-time data readout on the module
• 16 MB Onboard Storage – Log experimental data for later analysis
• RTC Clock – Timestamp data with included CR1220 battery
• Sensor Calibration – Built-in calibration functions
• I2C Output – Compatible with micro:bit, Arduino, Raspberry Pi, UNIHIKER
• Flexible Power – 3.3–5.5V DC via USB or 3×AA battery holder

Included Sensors

• Analogue Soil Moisture Sensor – 3.3–5V, 0–4.2V output, 60×20×5 mm
• VEML7700 Ambient Light Sensor – I2C, 0–120 klx range, 0.0036 lx resolution
• SHT31-F Temperature & Humidity Sensor – I2C, ±0.2°C / ±2% RH accuracy, −40°C to 125°C range
• ENS160 Air Quality Sensor – I2C, eCO2 (400–65,000 ppm) and TVOC (0–65,000 ppb)

SCI DAQ Module Specifications

• Operating Voltage – 3.3–5.5V DC
• Operating Current – 40 mA
• Interfaces – 1× Digital/Analogue, 2× I2C/UART
• Output – I2C (address 0x21–0x23)
• Display – 1.3-inch OLED
• Storage – 16 MB
• Dimensions – 62 × 52 × 13 mm

Ideal For

• STEM education and classroom experiments
• Environmental monitoring: soil, light, temperature, humidity, air quality
• Science fair projects and student research
• Introducing data acquisition without coding

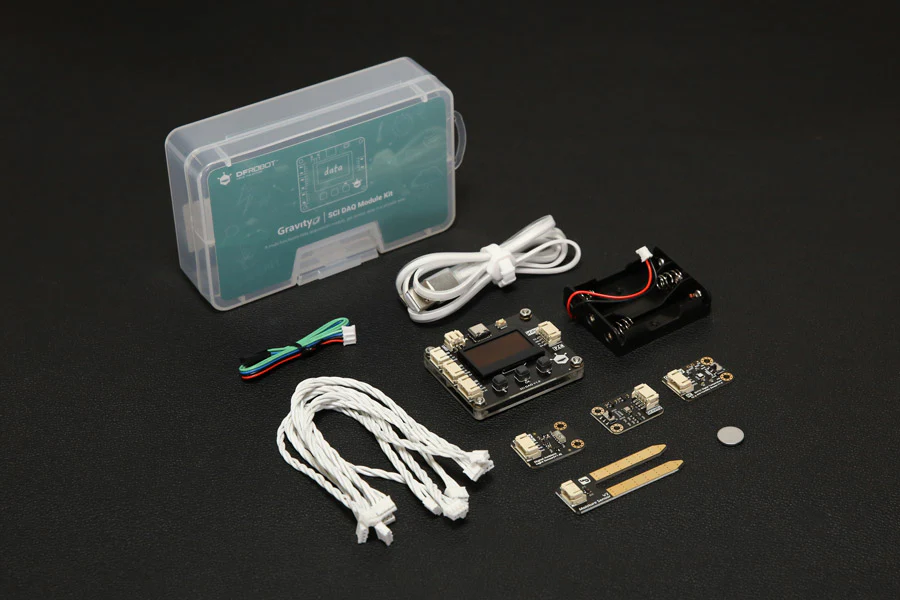

Package Contents

• 1× Gravity SCI DAQ Module
• 1× Analogue Soil Moisture Sensor
• 1× VEML7700 Ambient Light Sensor
• 1× SHT31-F Temperature & Humidity Sensor
• 1× ENS160 Air Quality Sensor
• 1× 3×AA Battery Holder (PH2.0-2P)
• 1× Type-C & Micro 2-in-1 USB Cable (1 m)
• 1× RTC Battery (CR1220)
• 4× Double-headed PH2.0-4P Cables (20 cm)
• 2× Double-headed PH2.0-3P Cables (20 cm)
• 1× Gravity 4P I2C/UART Sensor Cable (30 cm)

Resources

• Science Experiments Tutorials
