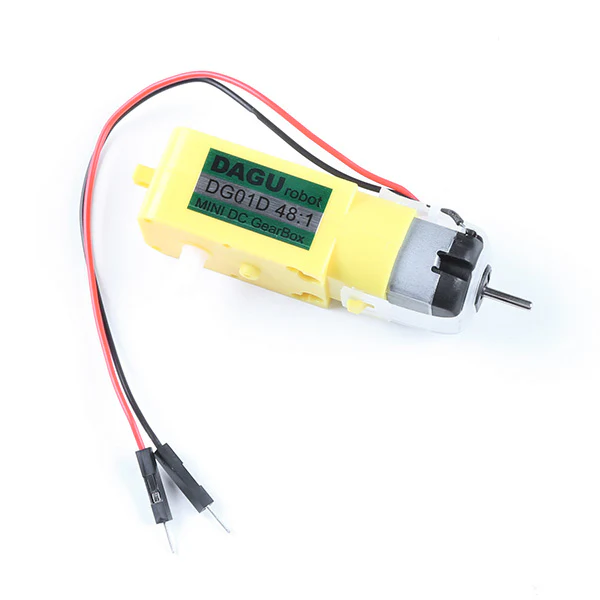

A compact hobby gearmotor from DAGU with a 48:1 gearbox ratio and 140 RPM unloaded speed. Features a 9mm output shaft on a straight axis with male connectors for easy wiring. A reliable, affordable option for small robotics and wheeled projects.

Runs on 4.5VDC with a no-load current of 190mA — well suited for battery-powered robots and chassis like the Shadow Chassis.

Specifications

• Suggested Voltage: 4.5VDC
• No-Load Speed: 140 RPM
• No-Load Current: 190mA
• Max Load Current: 250mA
• Torque: 800 gf·cm
• Gearbox Ratio: 48:1
• Output Shaft Length: 9mm (straight axis)
• Connectors: Male

Ideal For

• Small wheeled robots and chassis
• Hobby robotics projects
• Arduino and microcontroller motor experiments

Package Contents

• 1× Hobby Gearmotor (140 RPM, male connectors)

Resources

• Datasheet (DG01D)
