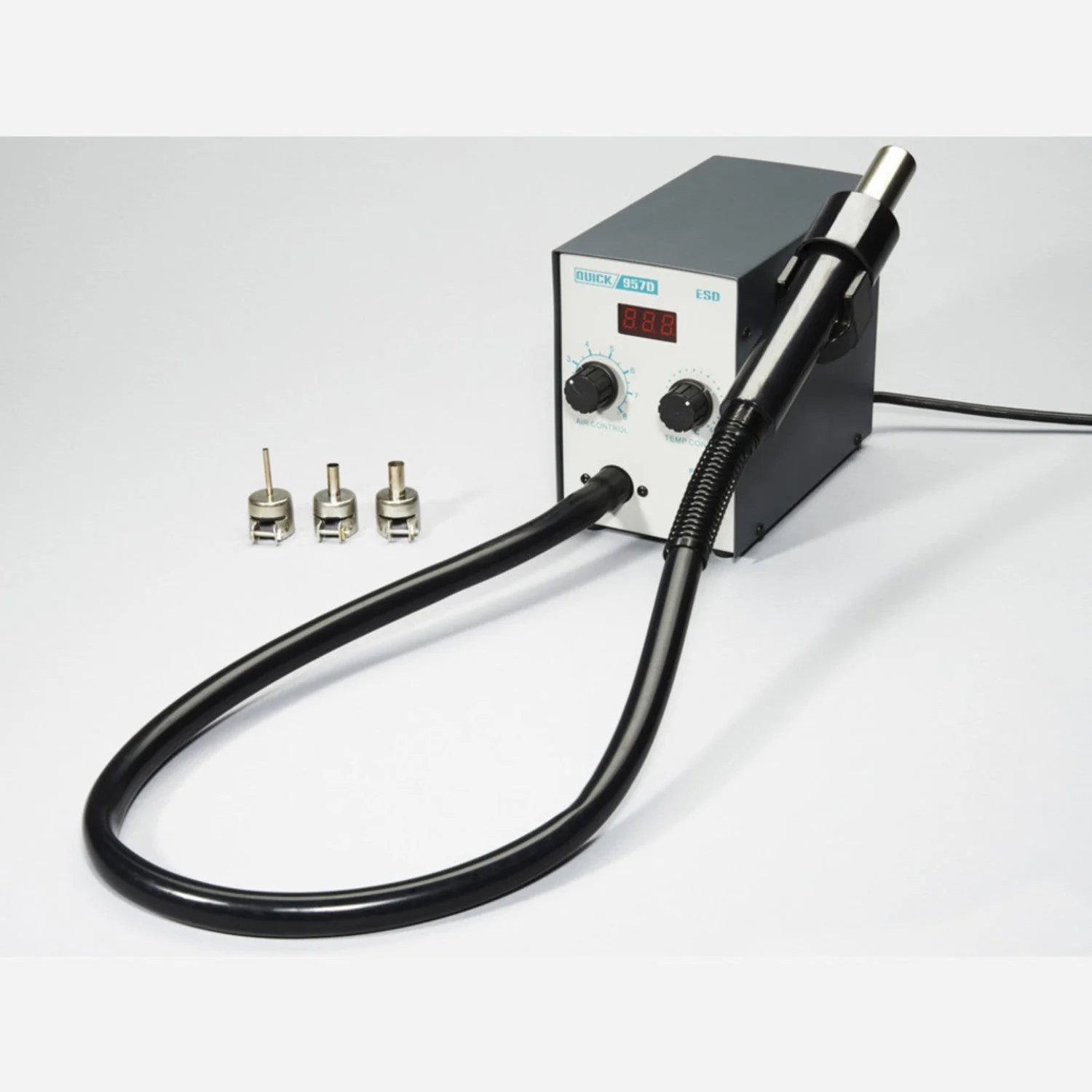

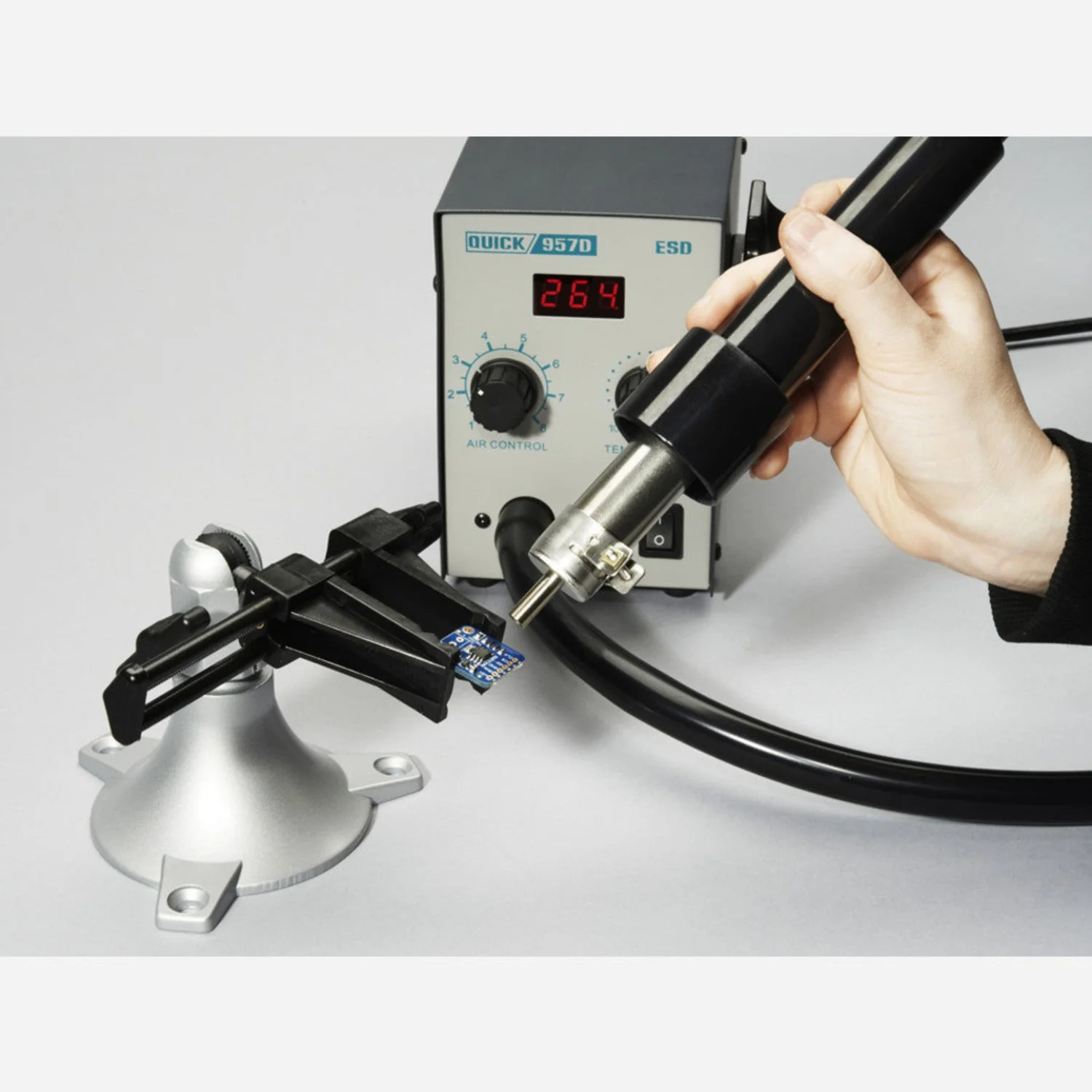

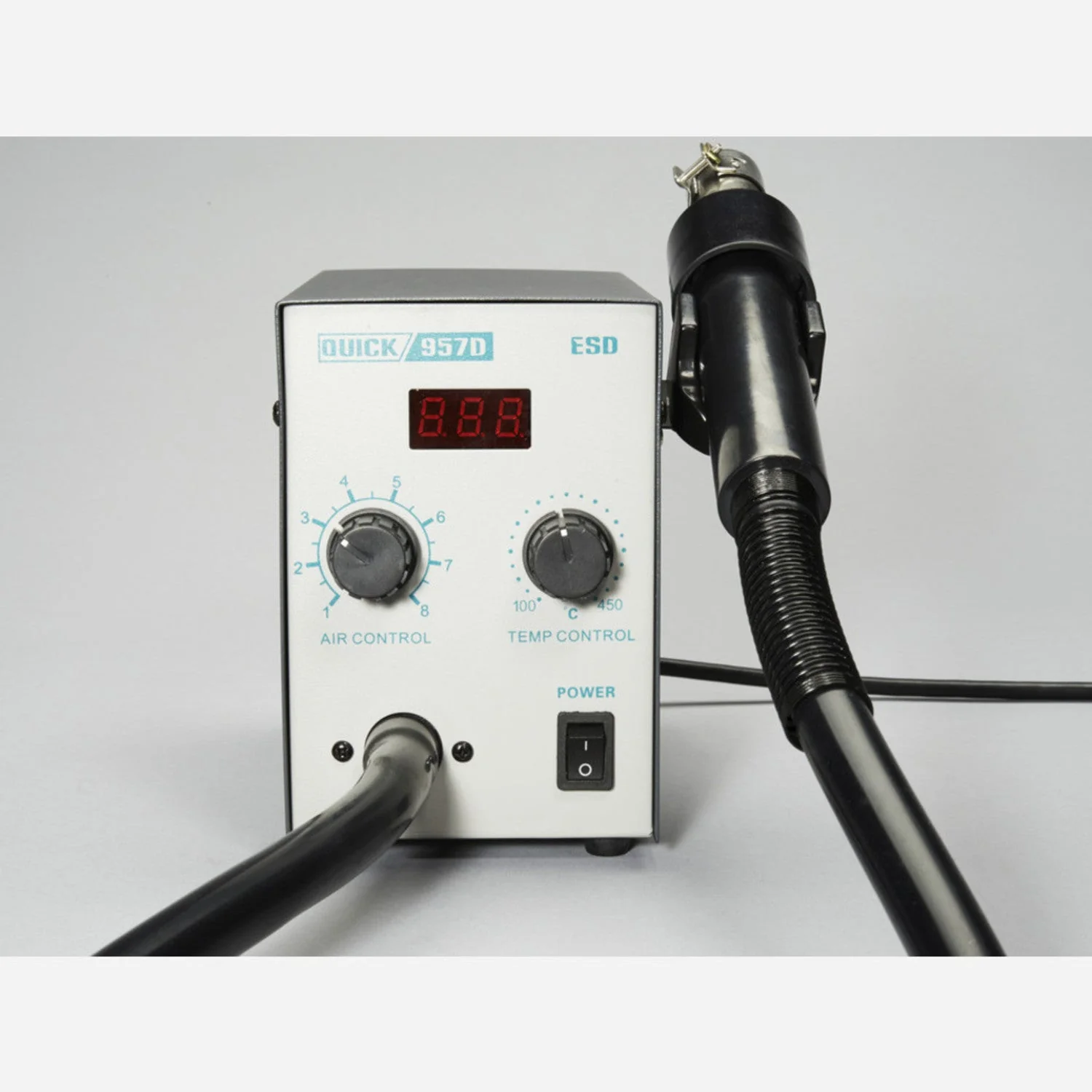

The Quick 957D is a hot air soldering rework station with an internal pump and heater that delivers a steady stream of temperature-controlled hot air. It is designed for removing and replacing surface-mount components, fixing solder joints and bridges, and performing solder paste reflow on PCBs.

The station features closed-loop temperature control from 100–450 °C with a digital display, and an intelligent cooling system that keeps the airflow running until the temperature drops below 100 °C. Three interchangeable nozzles are included for different component sizes.

Key Features

• Closed-Loop Temperature Control – 100–450 °C with digital display
• Internal Pump – Steady, adjustable airflow up to 100 L/min
• Intelligent Cooling – Airflow continues until temperature drops below 100 °C
• Three Nozzles Included – Different sizes for various component footprints
• Digital Temperature Display – Easy monitoring during rework

Specifications

• Model – Quick 957D
• Temperature Range – 100–450 °C
• Power Consumption – 580 W
• Max Airflow – 100 L/min
• Display – Digital temperature readout
• Temperature Control – Closed-loop

Ideal For

• SMD component removal and replacement
• Solder paste reflow
• Fixing solder bridges and cold joints
• PCB rework and repair

Package Contents

• 1× Quick 957D hot air rework station
• 3× Nozzles (assorted sizes)

Resources

• Hot Air Tools Guide (Adafruit)
