I2S Microphone Module

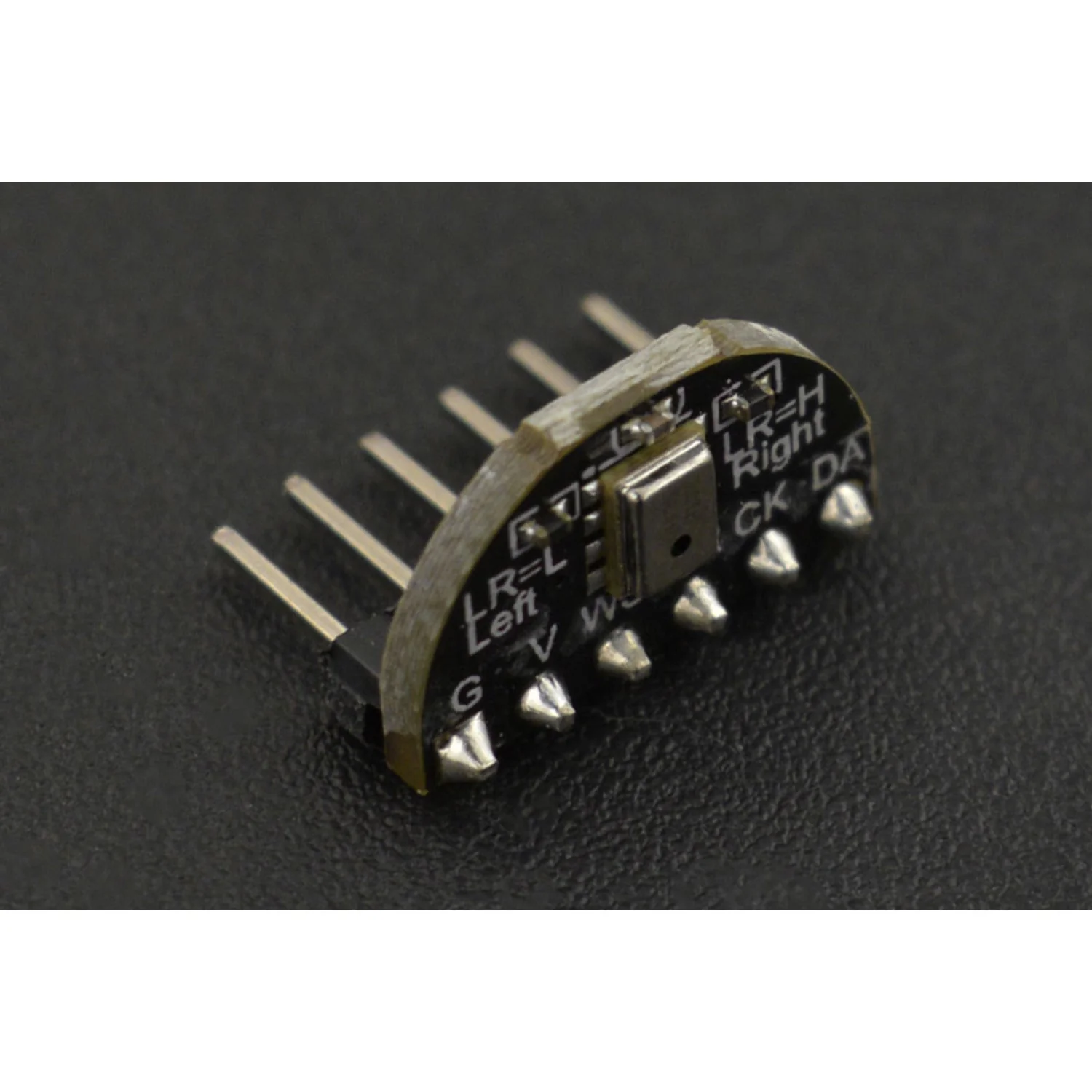

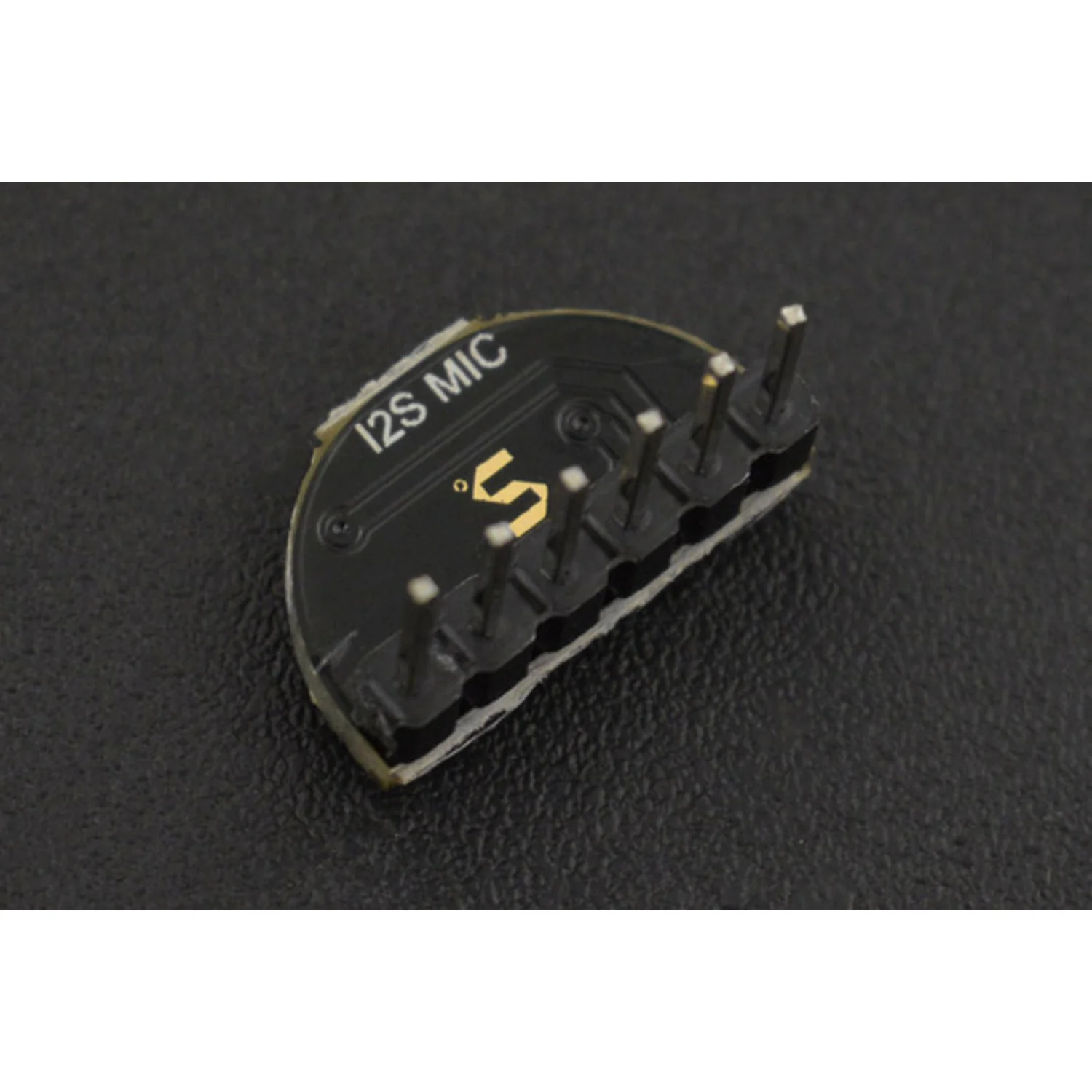

A compact digital MEMS microphone module based on the MSM261S4030H0 chip, providing 24-bit I2S digital audio output. The built-in I2S interface connects directly to DSPs and microcontrollers without requiring an external codec, simplifying audio capture designs. An on-board SK9822 RGB LED provides visual feedback with two-wire colour control.
The omnidirectional, bottom-ported microphone delivers high sensitivity with a 140 dB SPL acoustic overload point and 57 dB signal-to-noise ratio, making it well-suited for voice capture, audio processing, and AI applications.
Specifications
- Microphone – MSM261S4030H0 MEMS (omnidirectional, bottom-ported)
- Output – 24-bit I2S digital audio
- Sensitivity – −26 dBFS @ 1kHz, 1Pa
- Signal-to-Noise Ratio – 57 dB (A-weighted, 20kHz bandwidth)
- Max Sound Level – 140 dB SPL
- Input Voltage – 3.3V ± 0.2V DC
- Input Current – >1mA
- Operating Temperature – −30°C to +85°C
- On-Board LED – SK9822 RGB LED with two-wire control
- Connector – 16-pin 2.54mm Dupont header
- Dimensions – 15.2 × 9.1mm
Ideal For
- Digital audio capture and voice recognition projects
- AI and machine learning audio applications
- Sipeed MAIX and other I2S-compatible microcontrollers
- DSP and embedded audio processing
Package Contents
- 1× I2S Microphone Module
