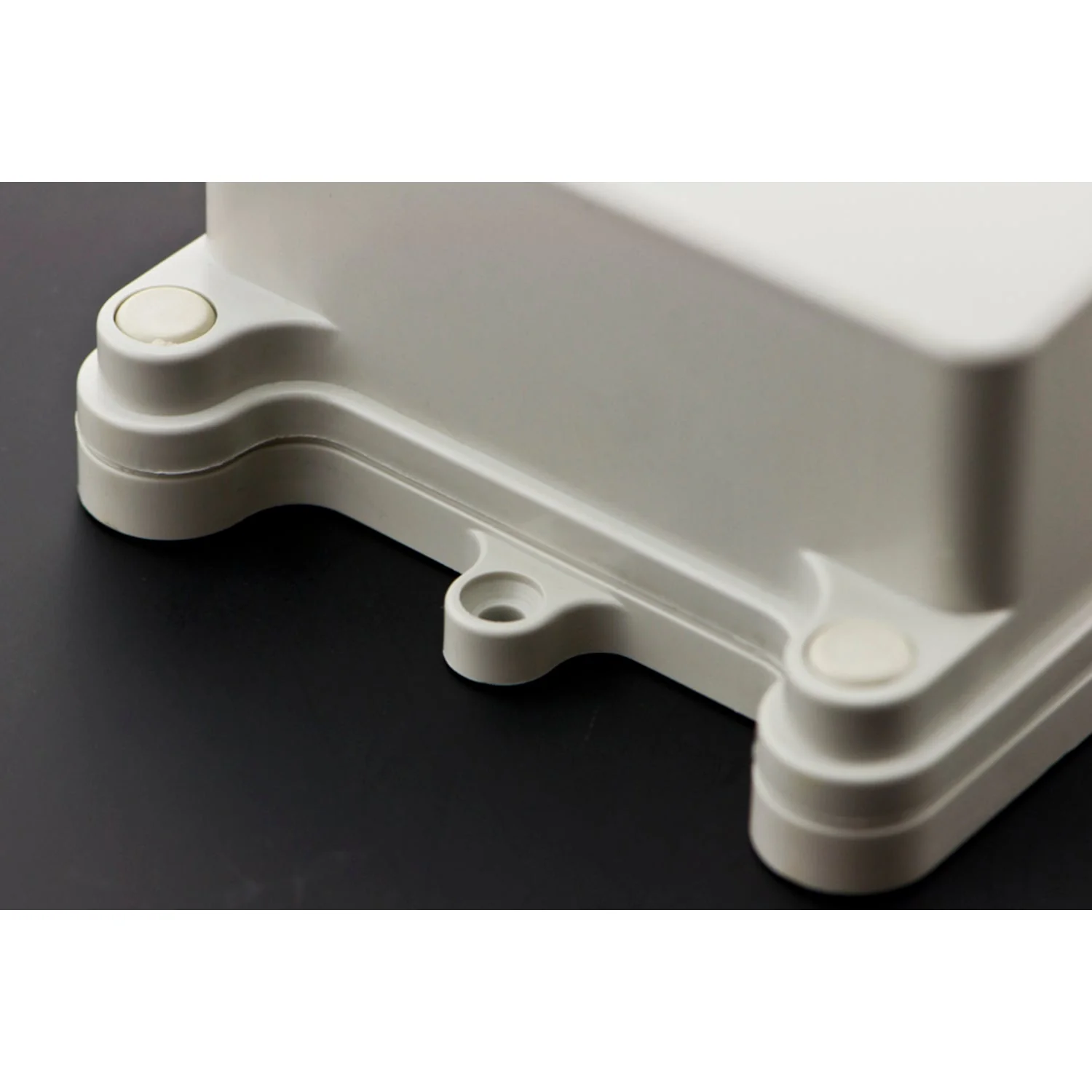

The ID01 UHF RFID Module is a non-contact read/write module using UHF (Ultra High Frequency) technology with an RS485 interface. It supports the ISO 18000-6C (EPC Gen 2) protocol and offers an effective read range of up to 50 cm, making it suitable for access control, asset tracking, vehicle monitoring, and industrial data acquisition.

The module communicates over RS485 at configurable baud rates from 9,600 to 115,200 bps. Three RFID cards and three RFID stickers are included for immediate use.

Key Features

• UHF RFID Reader/Writer – ISO 18000-6C (EPC Gen 2) compliant
• RS485 Interface – Configurable baud rates from 9,600 to 115,200 bps
• Up to 50 cm Range – Actual range varies with antenna, tag, and environment
• Fast Response – Read <10 ms per 8 bytes, write <20 ms per byte
• High Sensitivity – -102 dBm (minimum -98 dBm)

Ideal For

• Access control systems
• Vehicle monitoring and tracking
• Asset and inventory management
• Industrial data acquisition
• Wireless meter reading

Specifications

• Interface – RS485
• Protocol – ISO 18000-6C (EPC Gen 2)
• Max Output Power – 24 dBm
• Max Working Current – 200 mA
• Sensitivity – -102 dBm (min -98 dBm)
• Effective Range – Up to 50 cm
• Baud Rates – 9,600 / 19,200 / 38,400 / 57,600 / 115,200 bps
• Operating Temperature – -20°C to +65°C
• Dimensions – 155 × 100 mm

Package Contents

• 1× UHF RFID Module (RS485)
• 3× RFID Cards

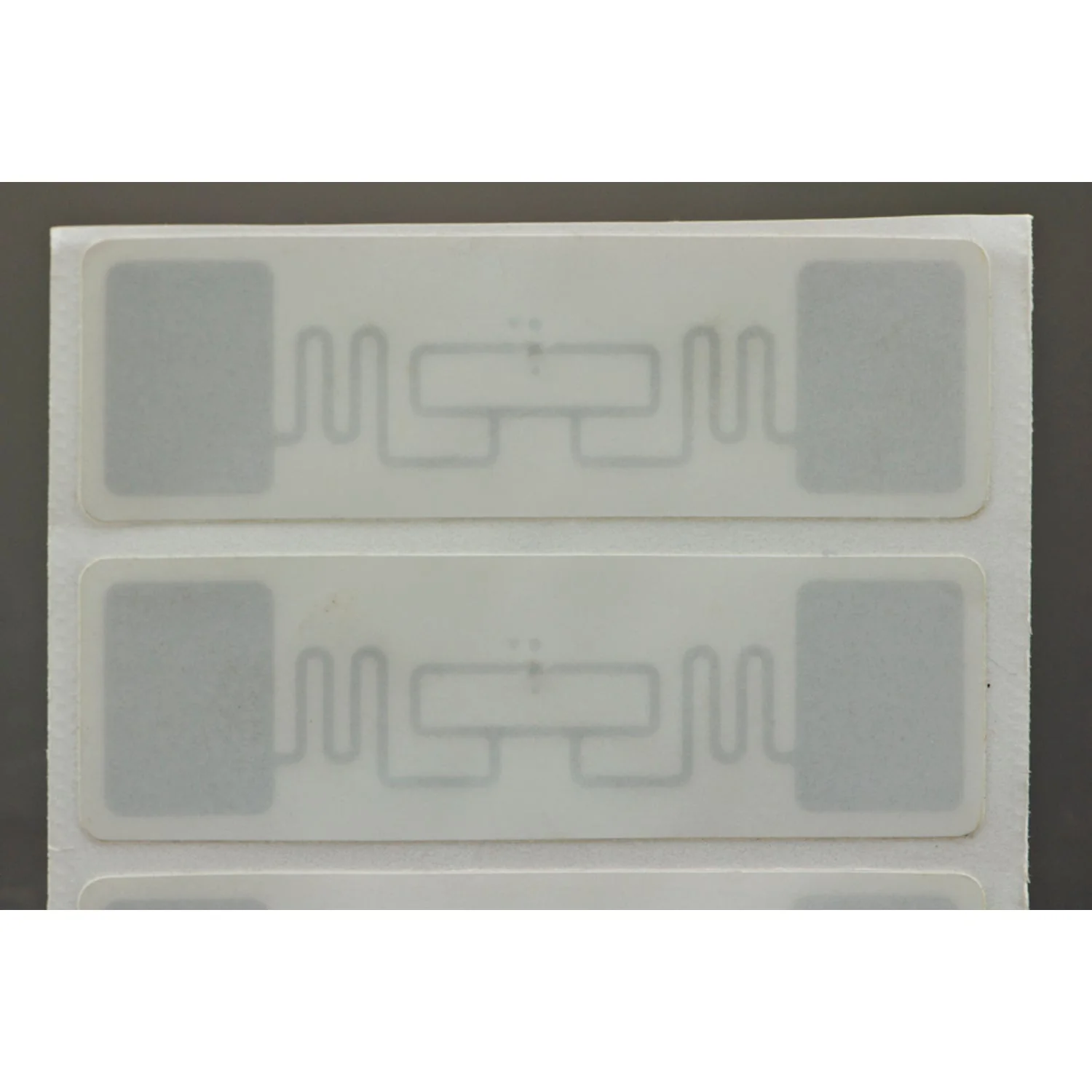

• 3× RFID Stickers

Resources

• Product Wiki
• User Manual (PDF)
