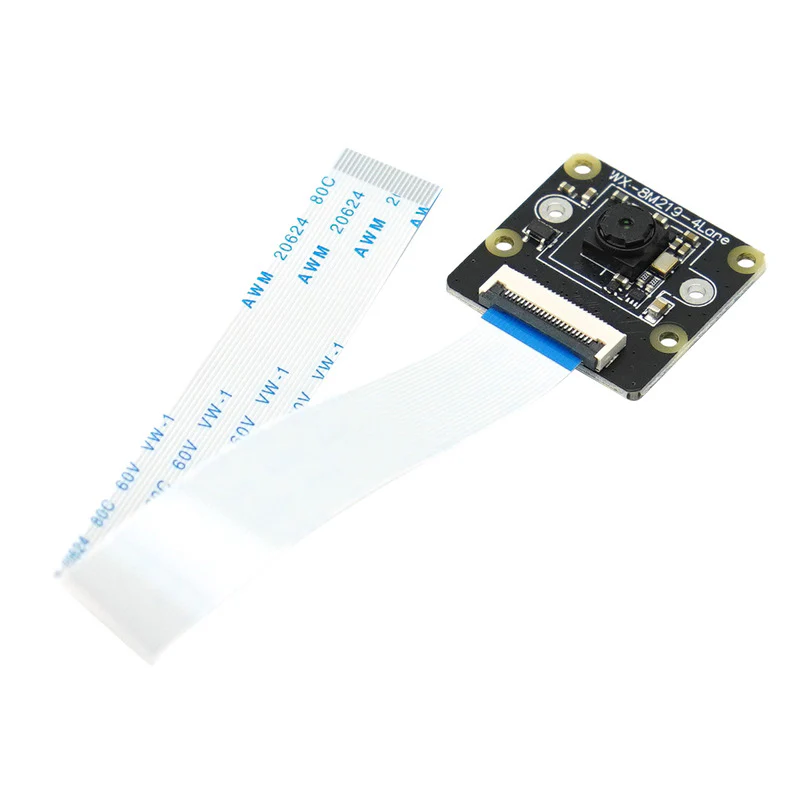

An 8 MP camera module for the Raspberry Pi 5, built around the Sony IMX219 sensor. It connects via the MIPI CSI 4-lane interface for higher frame rates than traditional 2-lane modules, delivering sharp 3280 × 2464 still images and smooth video up to 1080p at ~47 fps. The 79.3° field of view with less than 1% distortion makes it well-suited for close-range inspection, object detection, and general-purpose imaging.

The module uses a 22-pin FPC cable (included) and is compatible with the Raspberry Pi 5's CSI connector. It works with libcamera out of the box on recent Raspberry Pi OS releases.

Key Features

• Sony IMX219 Sensor – 8 MP (3280 × 2464) with rolling shutter
• MIPI CSI 4-Lane – Higher bandwidth for faster frame rates
• 79.3° Field of View – Focused perspective with <1% distortion
• Fixed Focus – No adjustment needed for general use
• f/2.0 Aperture – Good low-light performance
• Compact – 25 × 24 mm PCB

Specifications

• Sensor: Sony IMX219 (1/4″ CMOS)
• Resolution: 3280 × 2464 (8 MP)
• Field of View: 79.3°
• Focal Length: 2.85 mm
• Aperture: f/2.0
• Distortion: <1%
• Interface: MIPI CSI 4-lane (22-pin FPC, 0.5 mm pitch)
• Lens Size: 6.5 × 6.5 mm
• PCB Size: 25 × 24 mm
• Video Modes: 1080p @ ~47 fps, 3280 × 2464 @ ~21 fps

Ideal For

• Raspberry Pi 5 imaging projects
• Object detection and machine vision
• Close-range inspection and documentation
• Security and surveillance

Package Contents

• 1× IMX219-77 4-Lane 8 MP Camera Module
• 1× 22-pin FPC Cable

Resources

• IMX219-77 Camera Wiki (Waveshare)
