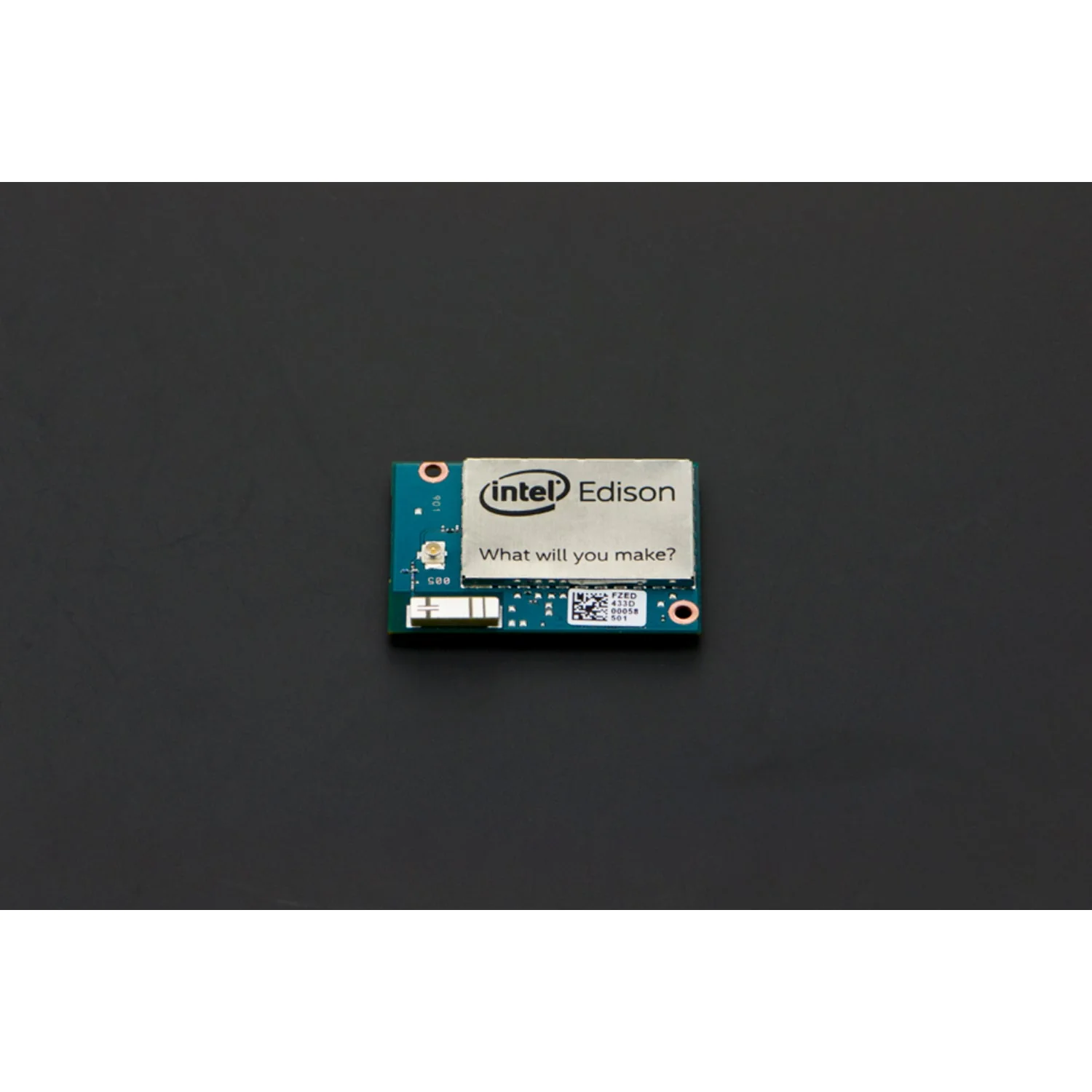

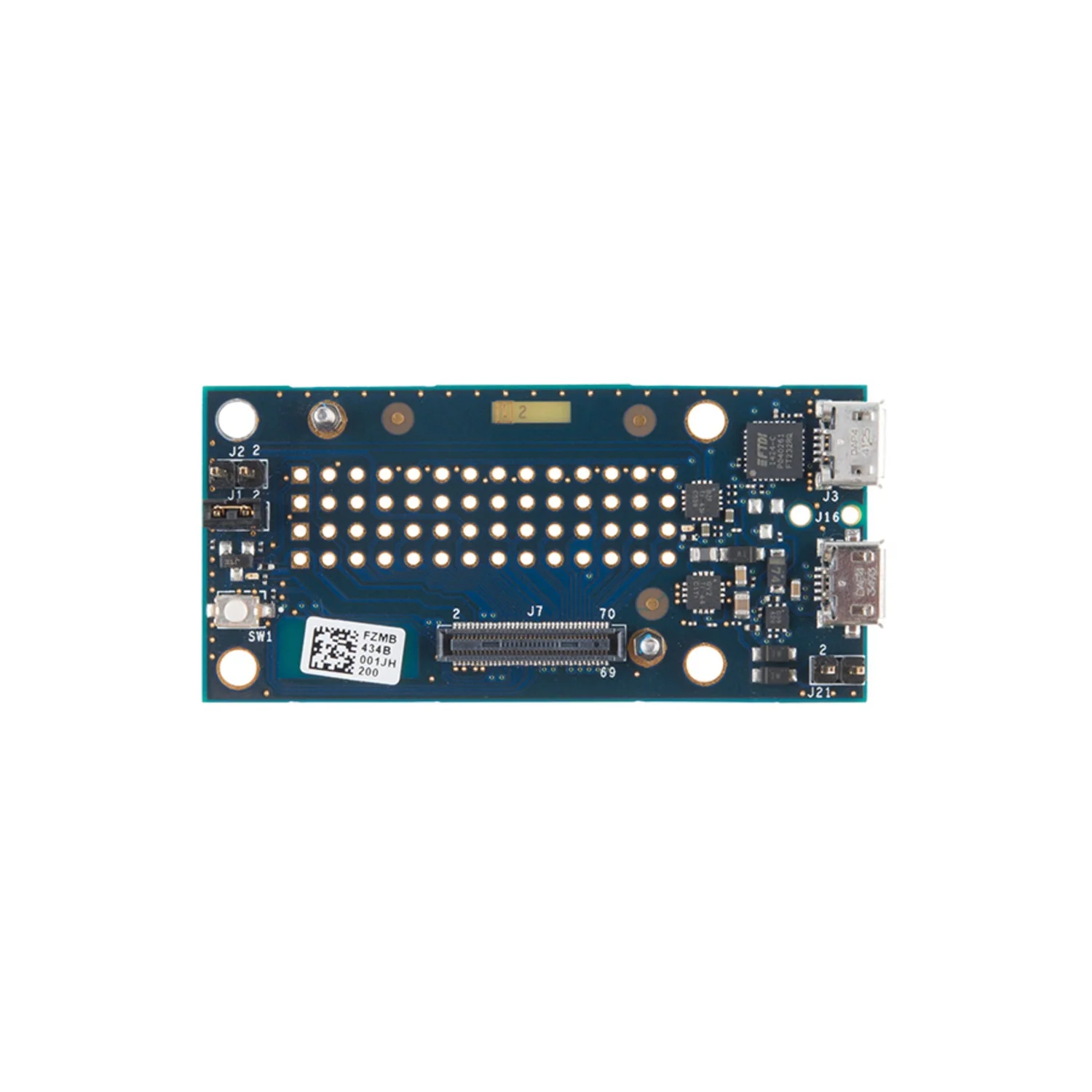

The Intel Edison Breakout Kit is a compact development platform featuring a dual-core Intel Atom CPU at 500 MHz and a 32-bit Intel Quark microcontroller at 100 MHz. It includes dual-band Wi-Fi, Bluetooth 4.0, 1 GB RAM, and 4 GB eMMC flash on a module slightly larger than a postage stamp. This breakout board is designed for non-Arduino users with a minimalist set of features.

Specifications

• CPU – 22 nm Intel SoC: dual-core Intel Atom @ 500 MHz + Intel Quark @ 100 MHz
• RAM – 1 GB LPDDR3 @ 800 MHz
• Flash – 4 GB eMMC + SDIO interface
• GPIO – 70 pins (40 accessible on module)
• Wi-Fi – Dual-band 802.11 a/b/g/n
• Bluetooth – 2.1 / 4.0
• USB – 1× USB OTG
• Other Interfaces – SPI, UART, I2C, PWM
• Input Voltage – 7–15 V DC
• Power (Standby) – 13 mW (no radios), 21.5 mW (BT), 35 mW (Wi-Fi)
• Module Size – 35.5 × 25.0 × 3.9 mm

Package Contents

• 1× Intel Edison with Breakout Kit
