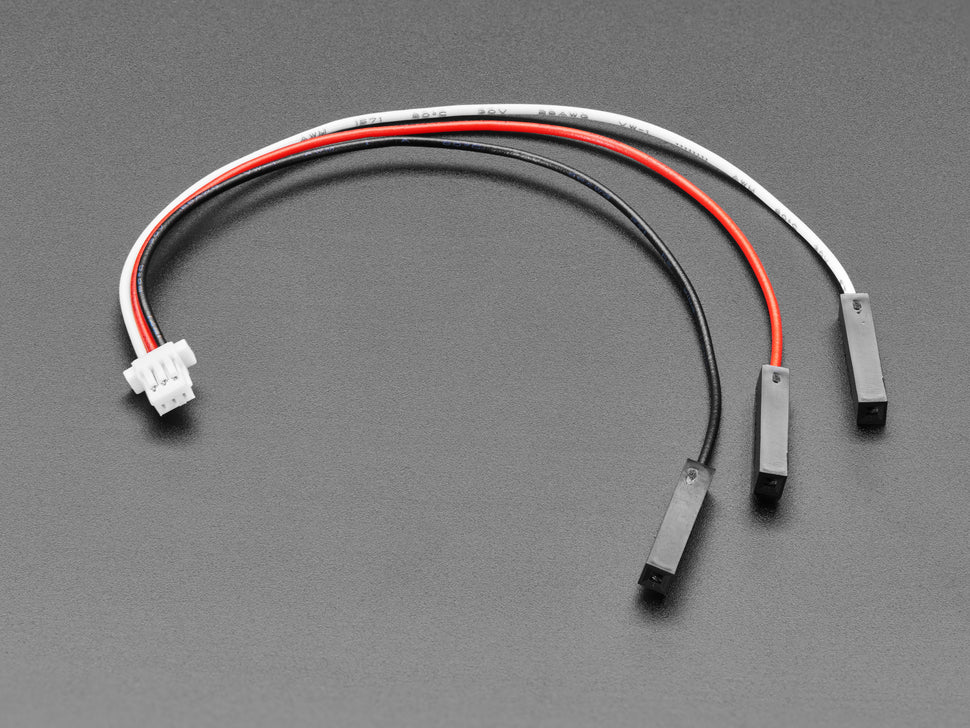

A 100mm adapter cable with a 1mm pitch JST SH 3-pin connector on one end and 0.1" (2.54mm) pitch socket headers on the other. Ideal for connecting to JST SH ports on development boards such as the Raspberry Pi Pico Debug Probe, Pico WH debug port, and other 3-pin JST SH-equipped devices.

The socket header end plugs into standard breadboard headers or 0.1" pin headers, making it easy to break out JST SH connections for prototyping and debugging.

Key Features

• JST SH to Socket Headers – 1mm pitch JST SH on one end, 0.1" sockets on the other
• 3-Pin – Three-conductor cable for data and ground connections
• 100mm Length – Convenient length for bench prototyping
• Breadboard Compatible – Socket headers fit standard 0.1" pin headers

Wire Colour Reference (Debug Probe)

When used with the Raspberry Pi Pico Debug Probe:

• White – SWCLK or UART TX
• Red – Ground
• Black – SWDIO or UART RX

Ideal For

• Raspberry Pi Pico Debug Probe and Pico WH debug port
• Breakout connections from JST SH ports to breadboards
• SWD and UART debugging setups
• Any device with a 3-pin JST SH connector

Package Contents

• 1× JST SH 3-Pin to Socket Headers Cable (100mm)

Resources

• Adafruit STEMMA Connector Guide
• JST SH Connector Specifications
